ADS820U

ADS820U Overview

Product belongs to the ADS820 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.025778 oz SMD/SMT Mounting-Style SOIC-28 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 28-SOIC This product's 20M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 275 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 60.5 dB Number-of-Converters: 1 Converter 20 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 4.75 V to 5.25 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

ADS820U Image

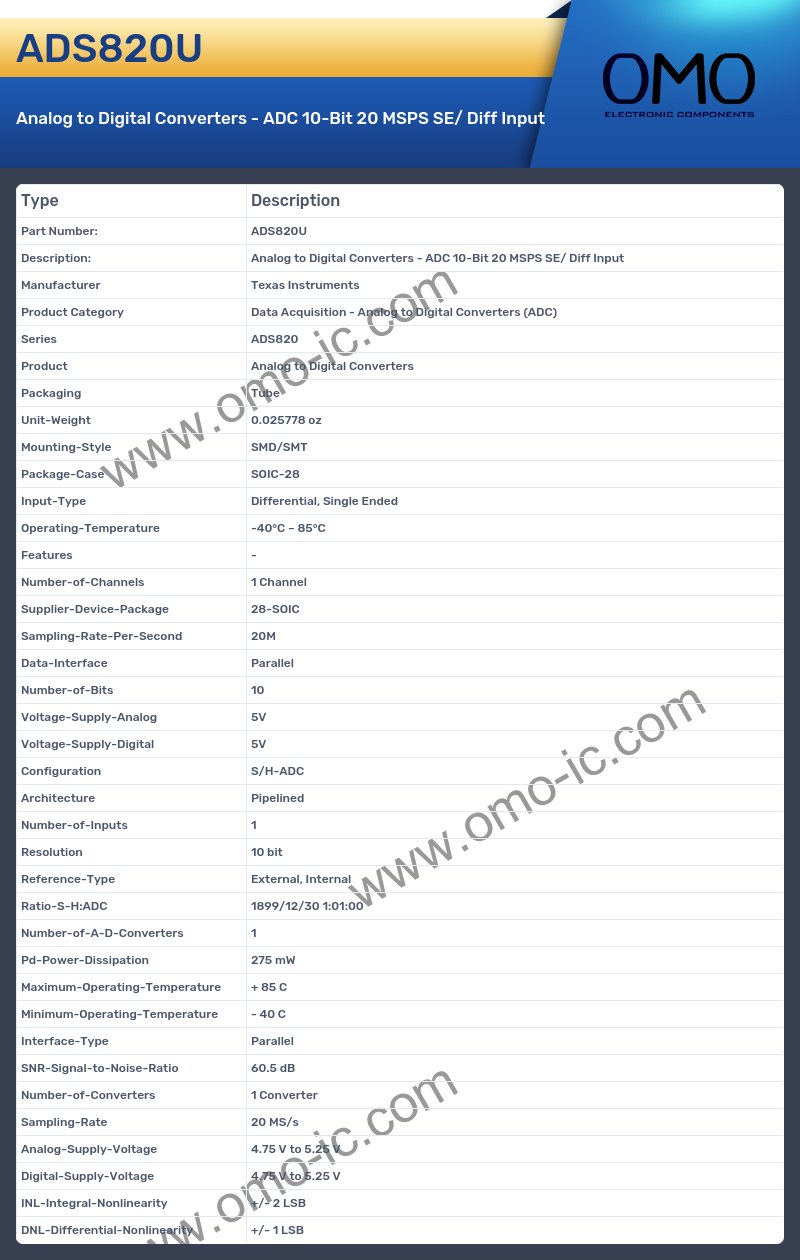

ADS820U Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS820
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.025778 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-SOIC
• Sampling-Rate-Per-Second 20M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 275 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 60.5 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 20 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 4.75 V to 5.25 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
