ACST435-8BTR

ACST435-8BTR Overview

Product belongs to the ACS/A.S.DR series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount mounting type Supplier device package: D-Pak Configuration Single 25mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.1V 35mA of Current-Gate-Trigger-Igt-Max 4A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 30A, 32A for 50-60Hz Itsm. Standard Triac-Type

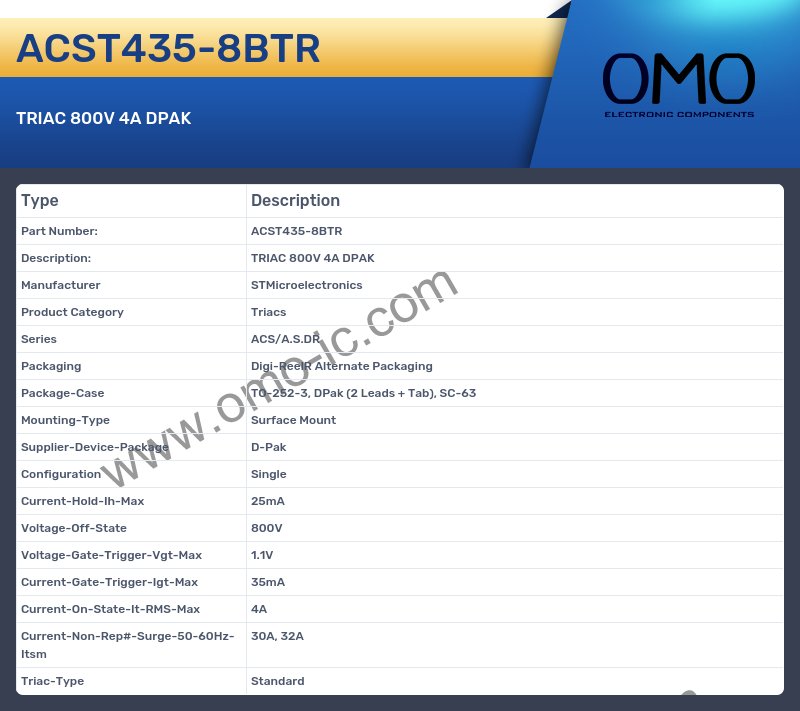

ACST435-8BTR Image

ACST435-8BTR Specifications

• Manufacturer STMicroelectronics
• Product Category Triacs
• Series ACS/A.S.DR
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Configuration Single
• Current-Hold-Ih-Max 25mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.1V
• Current-Gate-Trigger-Igt-Max 35mA
• Current-On-State-It-RMS-Max 4A
• Current-Non-Rep#-Surge-50-60Hz-Itsm 30A, 32A
• Triac-Type Standard

ACST435-8BTR FAQ

• A: What is the Series of the product?

  Q: The Series of the product is ACS/A.S.DR.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Digi-ReelR Alternate Packaging.

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is TO-252-3, DPak (2 Leads + Tab), SC-63.

• A: What is the Mounting-Type of the product?

  Q: The Mounting-Type of the product is Surface Mount.

• A: Is the cutoff frequency of the product Supplier-Device-Package?

  Q: Yes, the product's Supplier-Device-Package is indeed D-Pak

• A: Is the cutoff frequency of the product Configuration?

  Q: Yes, the product's Configuration is indeed Single

• A: What is the Current-Hold-Ih-Max of the product?

  Q: The Current-Hold-Ih-Max of the product is 25mA.

• A: What is the Voltage-Off-State of the product?

  Q: The Voltage-Off-State of the product is 800V.

• A: At what frequency does the Voltage-Gate-Trigger-Vgt-Max?

  Q: The product Voltage-Gate-Trigger-Vgt-Max is 1.1V.

• A: Is the cutoff frequency of the product Current-Gate-Trigger-Igt-Max?

  Q: Yes, the product's Current-Gate-Trigger-Igt-Max is indeed 35mA

• A: What is the Current-On-State-It-RMS-Max of the product?

  Q: The Current-On-State-It-RMS-Max of the product is 4A.

• A: At what frequency does the Current-Non-Rep#-Surge-50-60Hz-Itsm?

  Q: The product Current-Non-Rep#-Surge-50-60Hz-Itsm is 30A, 32A.

• A: What is the Triac-Type of the product?

  Q: The Triac-Type of the product is Standard.
