VN820B5TR-E

VN820B5TR-E Overview

This product is manufactured by STMicroelectronics. This device belongs to the High Side type. The product can operate at a maximum temperature of SMD/SMT. P2PAK-4 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 9 A Supply Voltage - Min: 5.5 V Supply Voltage - Max: 36 V 65.8 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. The AEC-Q100 Qualification Reel packaging for easy dispensing STMicroelectronics is a trusted brand for quality electronics This product does not have a Yes feature, ensuring continuous operation. 30 us maximum turn-off delay time The 30 us. Yes regarding Moisture Sensitivity 13 V operating supply voltage range Gate Drivers product type 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.049384 oz of Unit Weight

VN820B5TR-E Image

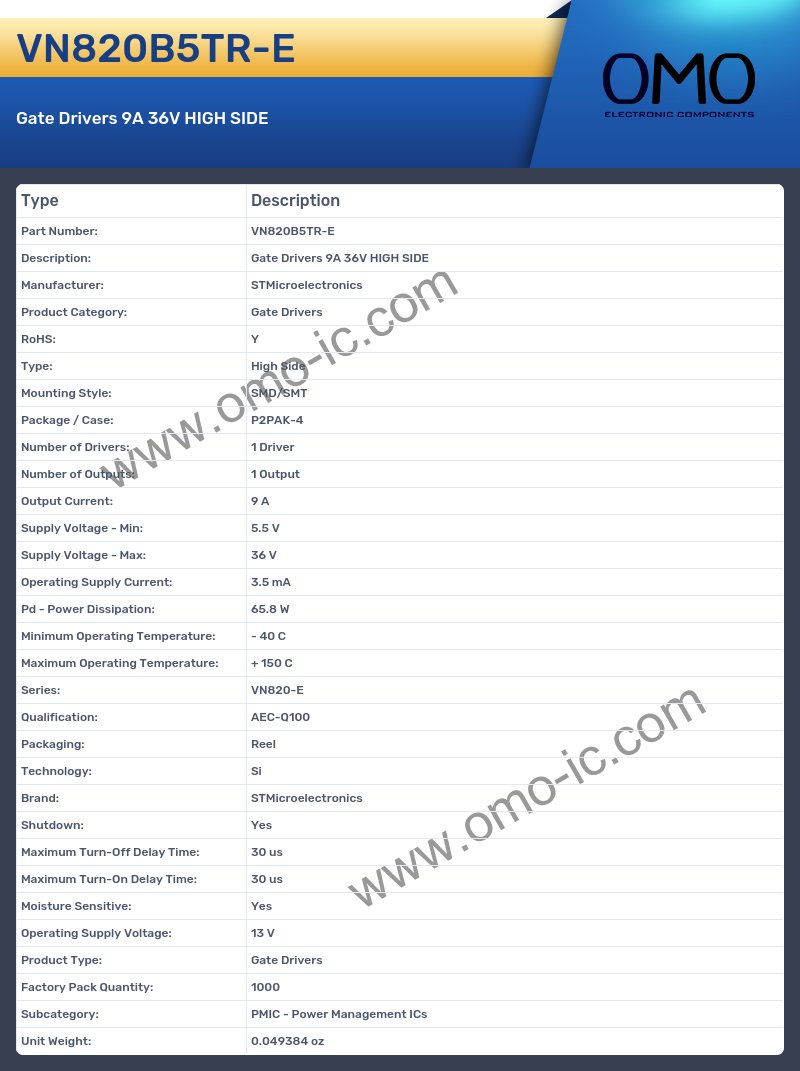

VN820B5TR-E Specifications

• Manufacturer: STMicroelectronics
• Product Category: Gate Drivers
• RoHS: Y
• Type: High Side
• Mounting Style: SMD/SMT
• Package / Case: P2PAK-4
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 9 A
• Supply Voltage - Min: 5.5 V
• Supply Voltage - Max: 36 V
• Operating Supply Current: 3.5 mA
• Pd - Power Dissipation: 65.8 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Series: VN820-E
• Qualification: AEC-Q100
• Packaging: Reel
• Technology: Si
• Brand: STMicroelectronics
• Shutdown: Yes
• Maximum Turn-Off Delay Time: 30 us
• Maximum Turn-On Delay Time: 30 us
• Moisture Sensitive: Yes
• Operating Supply Voltage: 13 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.049384 oz
