VN540SPTR-E Overview

This product is manufactured by STMicroelectronics. Half-Bridge Drivers This device belongs to the Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. PowerSO-10 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 2.8 A Rise Time is 60 ns. 25 ns fall time Supply Voltage - Min: 10 V Supply Voltage - Max: 36 V The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing STMicroelectronics is a trusted brand for quality electronics Yes regarding Moisture Sensitivity 10 V to 36 V operating supply voltage range Gate Drivers product type 600 of 100 PMIC - Power Management ICs as subcategory

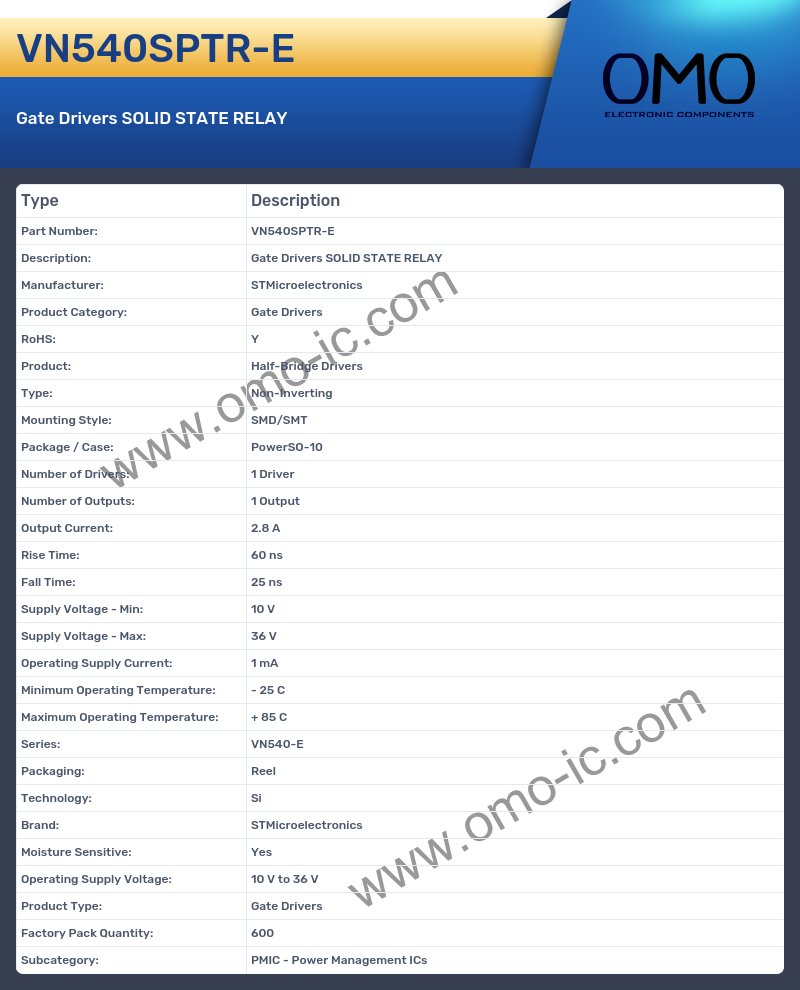

VN540SPTR-E Image

VN540SPTR-E Specifications

• Manufacturer: STMicroelectronics
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: PowerSO-10
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 2.8 A
• Rise Time: 60 ns
• Fall Time: 25 ns
• Supply Voltage - Min: 10 V
• Supply Voltage - Max: 36 V
• Operating Supply Current: 1 mA
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Series: VN540-E
• Packaging: Reel
• Technology: Si
• Brand: STMicroelectronics
• Moisture Sensitive: Yes
• Operating Supply Voltage: 10 V to 36 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 600
• Subcategory: PMIC - Power Management ICs
