UCC5310MCDR

UCC5310MCDR Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the Inverting, Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 1 Output is the number of outputs provided by this product. Output current: 4.3 A This product has a Single configuration. Rise Time is 12 ns. 10 ns fall time Supply Voltage - Min: 3 V Supply Voltage - Max: 15 V Maximum propagation delay: 75 ns 1.14 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Output Voltage is 13.2 V to 33 V Texas Instruments is a trusted brand for quality electronics CMOS. This product does not have a No Shutdown feature, ensuring continuous operation. Yes regarding Moisture Sensitivity Gate Drivers product type 2500 of 100 PMIC - Power Management ICs as subcategory 1. 0.019048 oz of Unit Weight

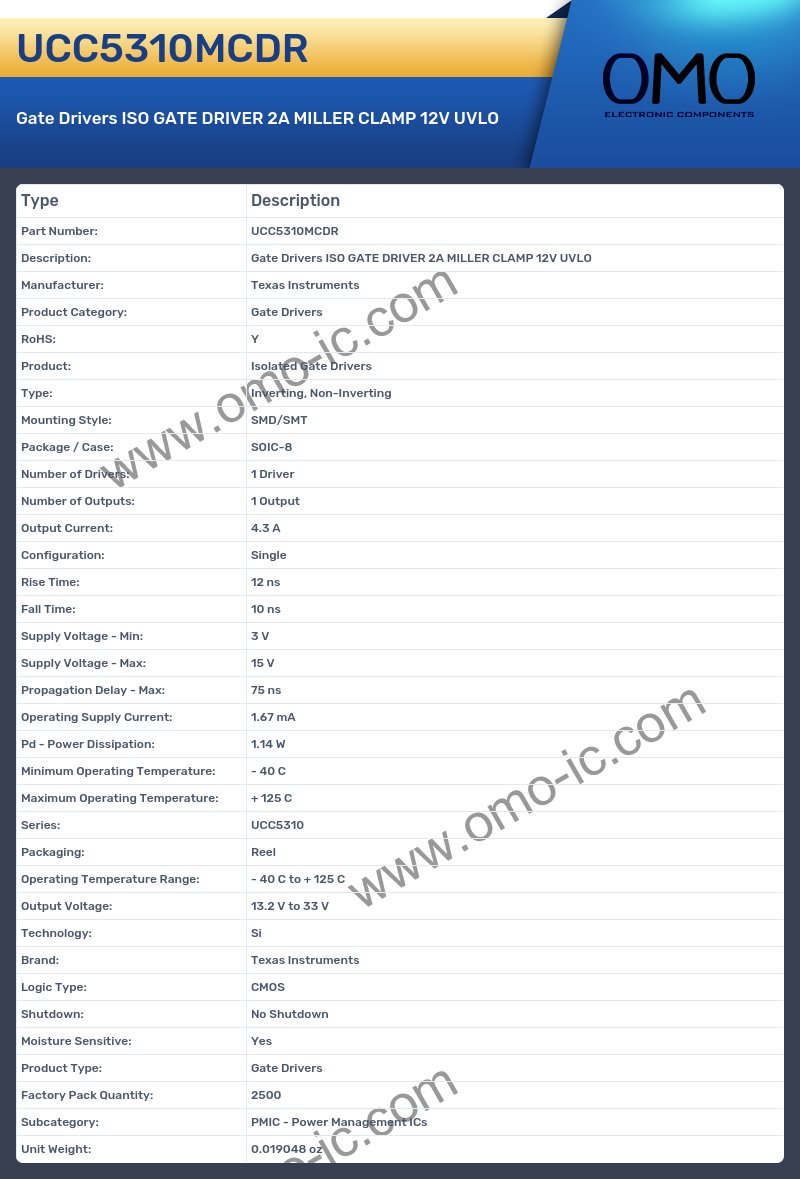

UCC5310MCDR Image

UCC5310MCDR Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: Inverting, Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 1 Driver
• Number of Outputs: 1 Output
• Output Current: 4.3 A
• Configuration: Single
• Rise Time: 12 ns
• Fall Time: 10 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 15 V
• Propagation Delay - Max: 75 ns
• Operating Supply Current: 1.67 mA
• Pd - Power Dissipation: 1.14 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: UCC5310
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 13.2 V to 33 V
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS
• Shutdown: No Shutdown
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.019048 oz
