UCC3946N

UCC3946N Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Adjustable threshold voltage range The output type is Active Low, Push-Pull. Adjustable. Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 9.81 mm long Texas Instruments is a trusted brand for quality electronics 1.26 V is specified as a product attribute. The Adjustable is a critical parameter in this product. No Chip Enable signal is supported. Supervisory Circuits product type 50 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2 V 1. 0.018455 oz of Unit Weight

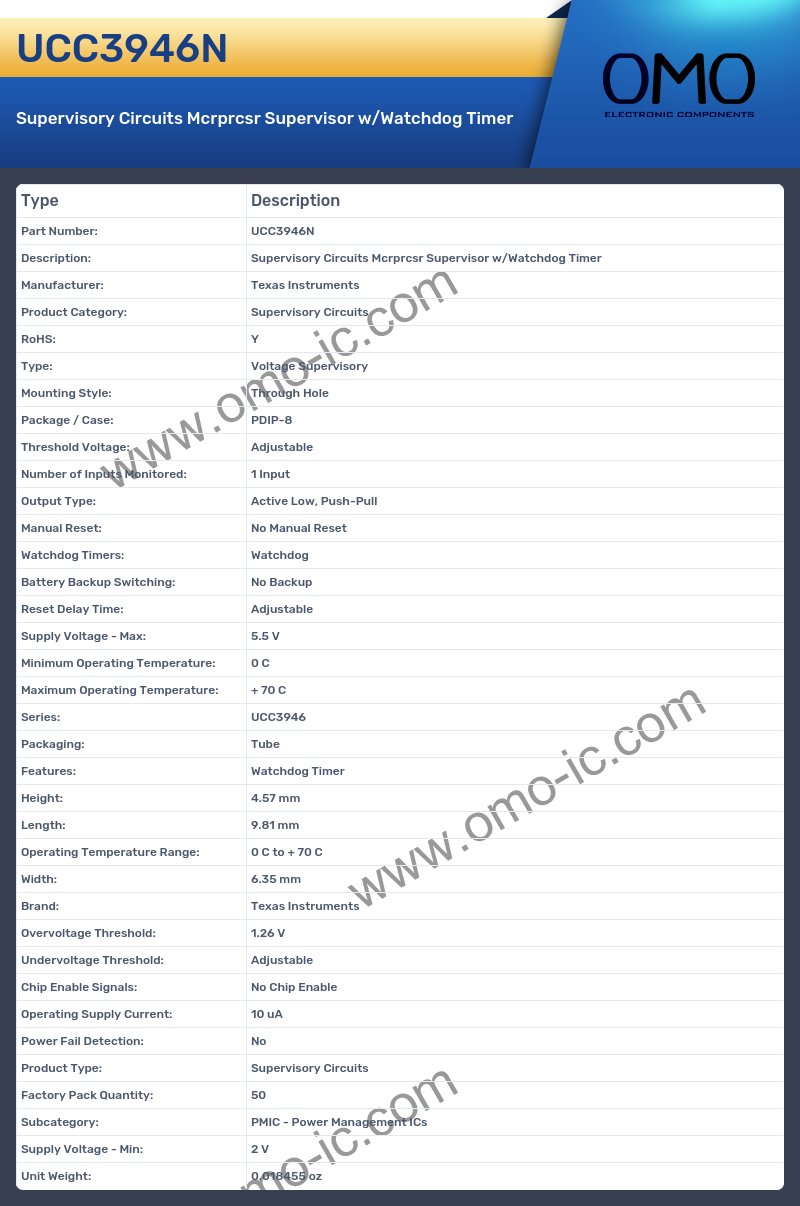

UCC3946N Image

UCC3946N Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Threshold Voltage: Adjustable
• Number of Inputs Monitored: 1 Input
• Output Type: Active Low, Push-Pull
• Manual Reset: No Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: Adjustable
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Series: UCC3946
• Packaging: Tube
• Features: Watchdog Timer
• Height: 4.57 mm
• Length: 9.81 mm
• Operating Temperature Range: 0 C to + 70 C
• Width: 6.35 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 1.26 V
• Undervoltage Threshold: Adjustable
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 10 uA
• Power Fail Detection: No
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2 V
• Unit Weight: 0.018455 oz
