UCC3813N-5

UCC3813N-5 Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output current: 1 A The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing This device belongs to the Current Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 44 ns fall time Switching Controllers product type Rise Time is 41 ns. 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.018455 oz of Unit Weight

UCC3813N-5 Image

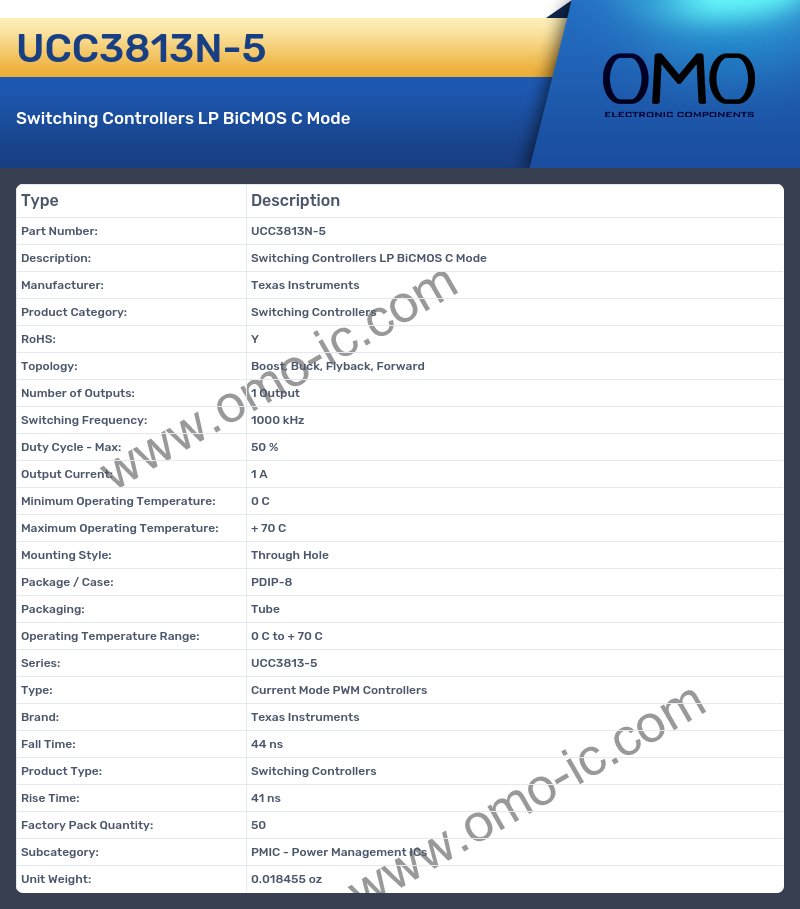

UCC3813N-5 Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 50 %
• Output Current: 1 A
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Operating Temperature Range: 0 C to + 70 C
• Series: UCC3813-5
• Type: Current Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 44 ns
• Product Type: Switching Controllers
• Rise Time: 41 ns
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.018455 oz
