UCC25705P

UCC25705P Overview

This product is manufactured by Texas Instruments. Boost, Flyback, Forward Topology 1 Output is the number of outputs provided by this product. 4 MHz is 60 kHz. 15 V Input Voltage Output current: 20 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 4.57 mm. Isolated, Non-Isolated is the isolation property. 9.81 mm long Switching Controllers This device belongs to the Voltage Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 10 ns fall time 15 V operating supply voltage range Switching Controllers product type Rise Time is 10 ns. 50 of 100 PMIC - Power Management ICs as subcategory 1. 0.018455 oz of Unit Weight

UCC25705P Image

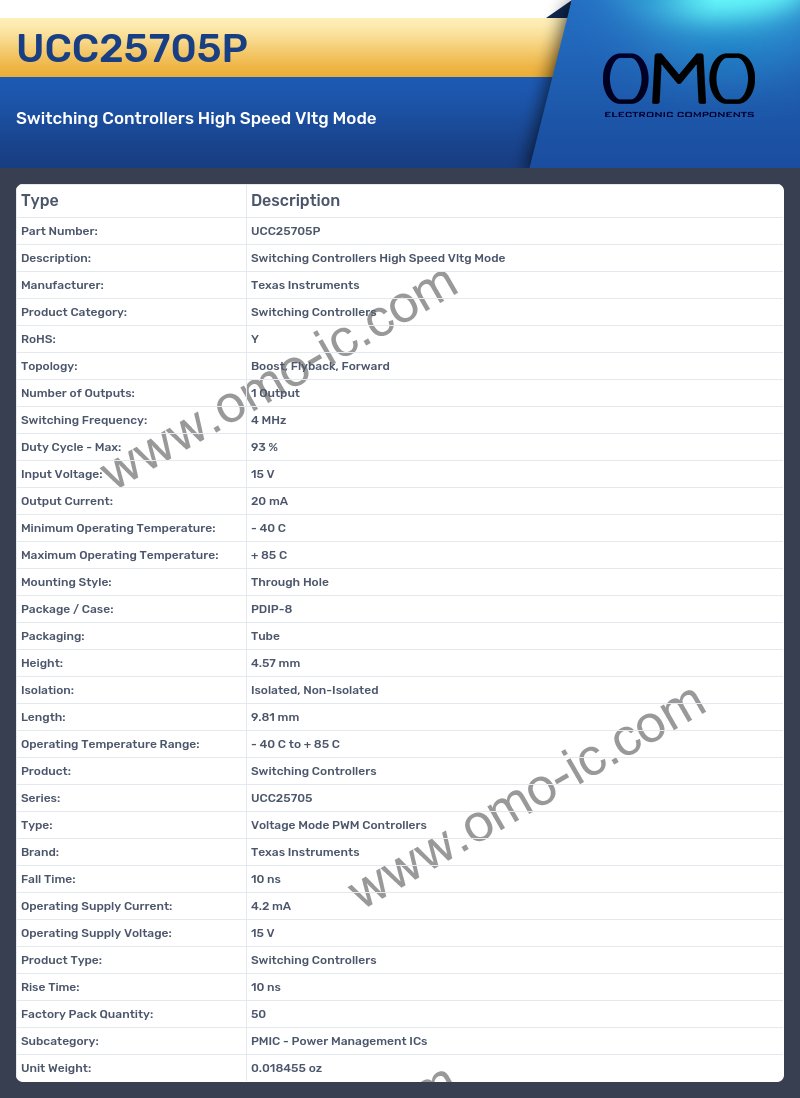

UCC25705P Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Flyback, Forward
• Number of Outputs: 1 Output
• Switching Frequency: 4 MHz
• Duty Cycle - Max: 93 %
• Input Voltage: 15 V
• Output Current: 20 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Height: 4.57 mm
• Isolation: Isolated, Non-Isolated
• Length: 9.81 mm
• Operating Temperature Range: - 40 C to + 85 C
• Product: Switching Controllers
• Series: UCC25705
• Type: Voltage Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 10 ns
• Operating Supply Current: 4.2 mA
• Operating Supply Voltage: 15 V
• Product Type: Switching Controllers
• Rise Time: 10 ns
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.018455 oz
