UCC21520DWR

UCC21520DWR Overview

This product is manufactured by Texas Instruments. Isolated Gate Drivers This device belongs to the High Side, Low Side type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 6 A Rise Time is 6 ns. 7 ns fall time Supply Voltage - Min: 3 V Supply Voltage - Max: 18 V Maximum propagation delay: 30 ns 1.05 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Output Voltage is 9.2 V to 25 V Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. UCC21520EVM-286 is a versatile development platform for hardware and software Yes regarding Moisture Sensitivity Gate Drivers product type 2000 of 100 PMIC - Power Management ICs as subcategory

UCC21520DWR Image

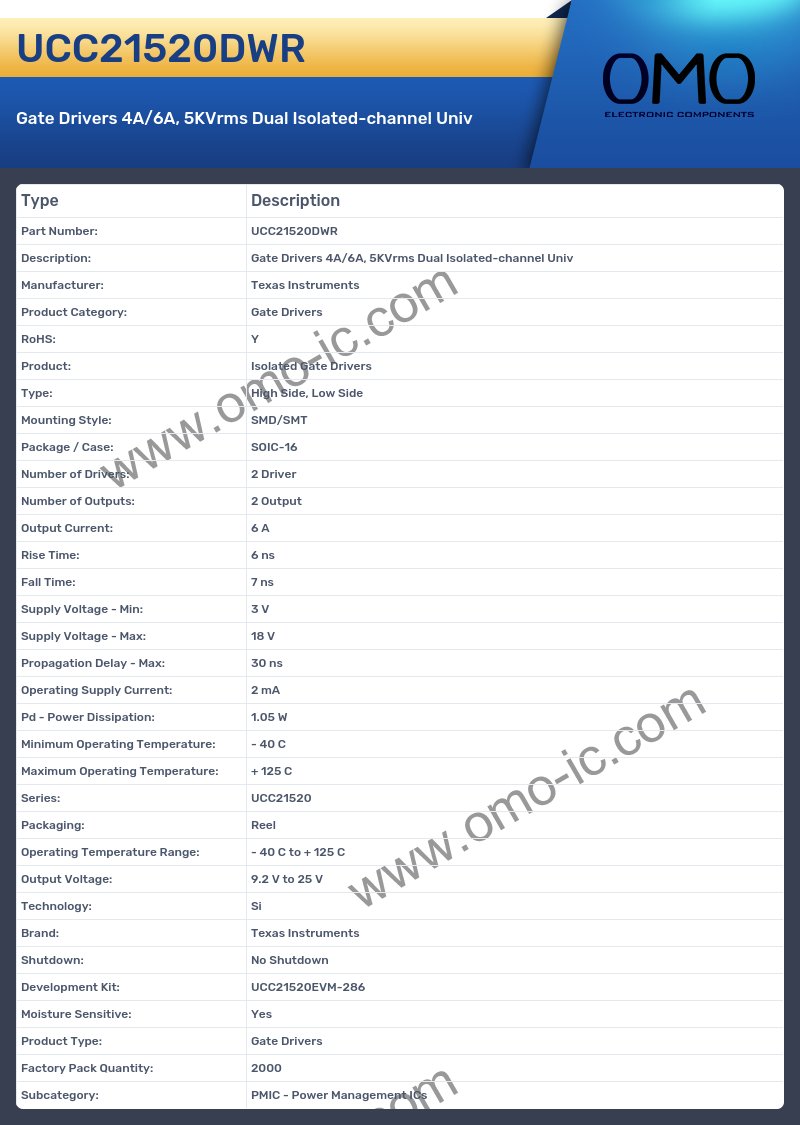

UCC21520DWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Isolated Gate Drivers
• Type: High Side, Low Side
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 6 A
• Rise Time: 6 ns
• Fall Time: 7 ns
• Supply Voltage - Min: 3 V
• Supply Voltage - Max: 18 V
• Propagation Delay - Max: 30 ns
• Operating Supply Current: 2 mA
• Pd - Power Dissipation: 1.05 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: UCC21520
• Packaging: Reel
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 9.2 V to 25 V
• Technology: Si
• Brand: Texas Instruments
• Shutdown: No Shutdown
• Development Kit: UCC21520EVM-286
• Moisture Sensitive: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 2000
• Subcategory: PMIC - Power Management ICs
