UC3825ADW

UC3825ADW Overview

This product is manufactured by Texas Instruments. Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull Topology 2 Output is the number of outputs provided by this product. 1000 kHz is 60 kHz. Output Voltage is 5.05 V to 5.15 V Output current: 2 A The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. Tube packaging for easy dispensing This device belongs to the Current Mode PWM Controllers type. Texas Instruments is a trusted brand for quality electronics 20 ns fall time Yes regarding Moisture Sensitivity 22 V operating supply voltage range Switching Controllers product type Rise Time is 20 ns. 40 of 100 PMIC - Power Management ICs as subcategory 1. 0.016709 oz of Unit Weight

UC3825ADW Image

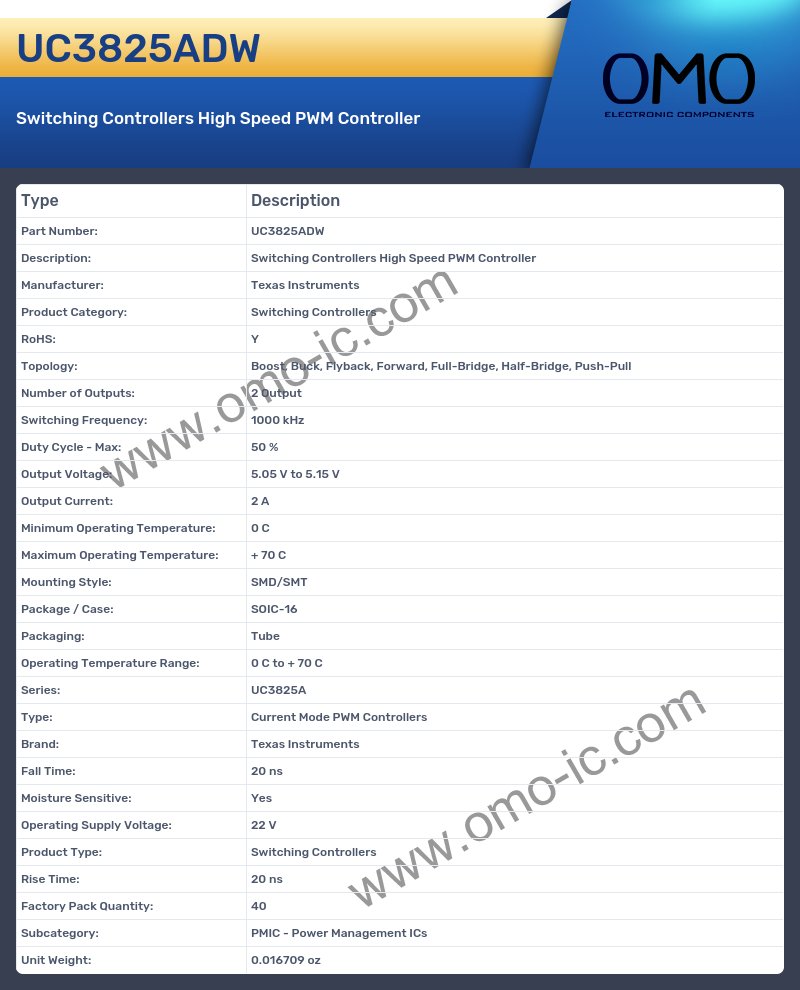

UC3825ADW Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
• Number of Outputs: 2 Output
• Switching Frequency: 1000 kHz
• Duty Cycle - Max: 50 %
• Output Voltage: 5.05 V to 5.15 V
• Output Current: 2 A
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Packaging: Tube
• Operating Temperature Range: 0 C to + 70 C
• Series: UC3825A
• Type: Current Mode PWM Controllers
• Brand: Texas Instruments
• Fall Time: 20 ns
• Moisture Sensitive: Yes
• Operating Supply Voltage: 22 V
• Product Type: Switching Controllers
• Rise Time: 20 ns
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.016709 oz
