UC2714DG4

UC2714DG4 Overview

This product is manufactured by Texas Instruments. This device belongs to the Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 1 A Rise Time is 30 ns. 25 ns fall time Supply Voltage - Min: 7 V Supply Voltage - Max: 20 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing Texas Instruments is a trusted brand for quality electronics TTL. Yes regarding Moisture Sensitivity 7 V to 20 V operating supply voltage range Gate Drivers product type 75 of 100 PMIC - Power Management ICs as subcategory 1. 0.002561 oz of Unit Weight

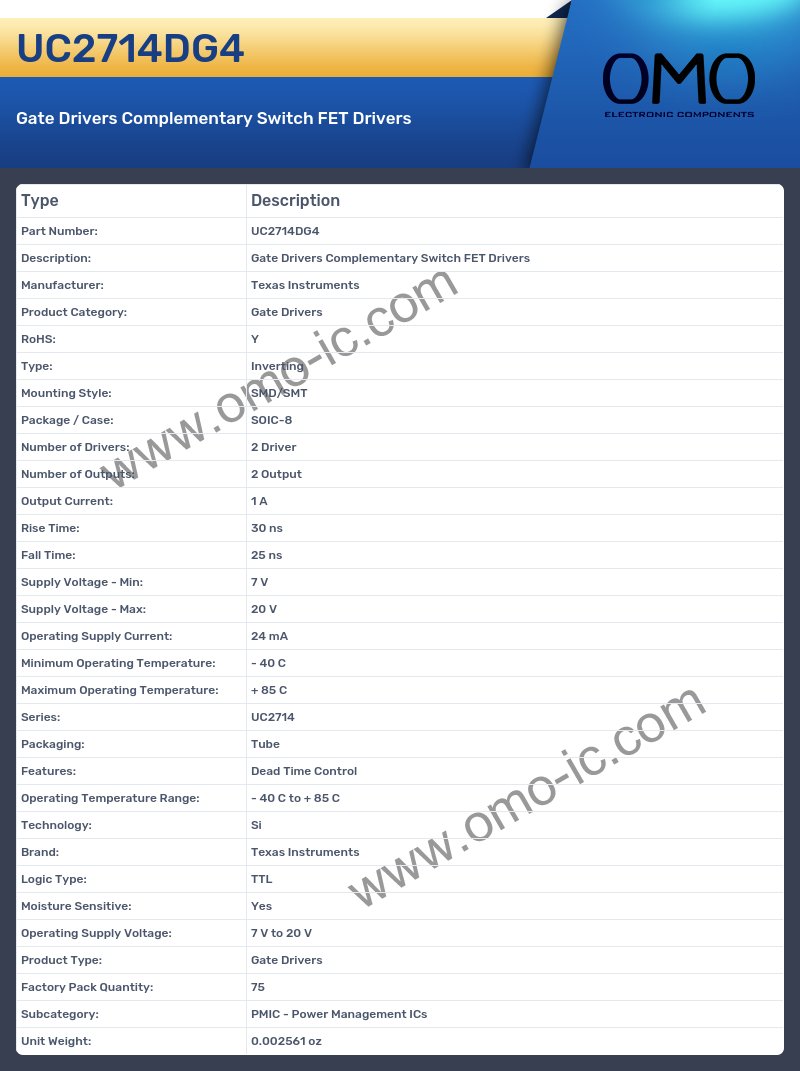

UC2714DG4 Image

UC2714DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Type: Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 1 A
• Rise Time: 30 ns
• Fall Time: 25 ns
• Supply Voltage - Min: 7 V
• Supply Voltage - Max: 20 V
• Operating Supply Current: 24 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: UC2714
• Packaging: Tube
• Features: Dead Time Control
• Operating Temperature Range: - 40 C to + 85 C
• Technology: Si
• Brand: Texas Instruments
• Logic Type: TTL
• Moisture Sensitive: Yes
• Operating Supply Voltage: 7 V to 20 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002561 oz
