This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOIC-16 package/case type is utilized by this product. 2.5 V threshold voltage range The output type is Open Collector / Drain & SCR Trigger. Programmable. Supply Voltage - Max: 40 V The minimum operating temperature of this product is - 25 C. The product can operate at a maximum temperature of + 85 C. The accuracy of this product is 1 %. Tube packaging for easy dispensing The height of the product is 2.35 mm. 10.28 mm long Texas Instruments is a trusted brand for quality electronics 2.55 V is specified as a product attribute. The 2.45 V is a critical parameter in this product. Yes regarding Moisture Sensitivity 1000 mW Supervisory Circuits product type 40 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 4.5 V 1. 0.016709 oz of Unit Weight

UC2543DW Image

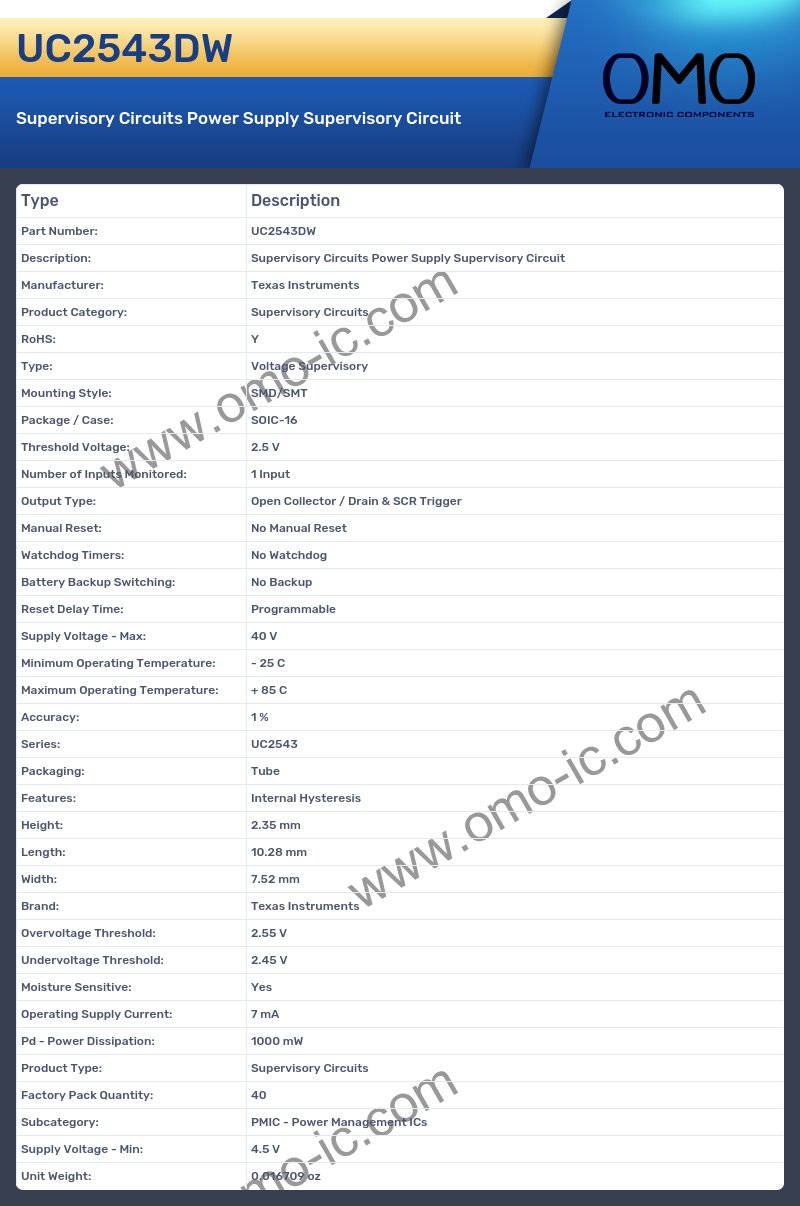

UC2543DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOIC-16
• Threshold Voltage: 2.5 V
• Number of Inputs Monitored: 1 Input
• Output Type: Open Collector / Drain & SCR Trigger
• Manual Reset: No Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: Programmable
• Supply Voltage - Max: 40 V
• Minimum Operating Temperature: - 25 C
• Maximum Operating Temperature: + 85 C
• Accuracy: 1 %
• Series: UC2543
• Packaging: Tube
• Features: Internal Hysteresis
• Height: 2.35 mm
• Length: 10.28 mm
• Width: 7.52 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 2.55 V
• Undervoltage Threshold: 2.45 V
• Moisture Sensitive: Yes
• Operating Supply Current: 7 mA
• Pd - Power Dissipation: 1000 mW
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 40
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 4.5 V
• Unit Weight: 0.016709 oz
