TS522IN

TS522IN Overview

This product is manufactured by STMicroelectronics. This product is equipped with 2 Channel for efficient performance. This product has a 80 dB of 50 dB, ensuring reliable signal acquisition. This product has an 750 nA of 5 uA for precise signal processing. Supply Voltage - Max: 30 V Supply Voltage - Min: 5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Low Noise Amplifier. The height of the product is 3.32 mm. 10.92 mm (Max) long Precision Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics The 0.5 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 15 V. +/- 2.5 V minimum dual supply voltage 5 V to 30 V, +/- 2.5 V to +/- 15 V operating supply voltage range 500 mW (1/2 W) Precision Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.032805 oz of Unit Weight

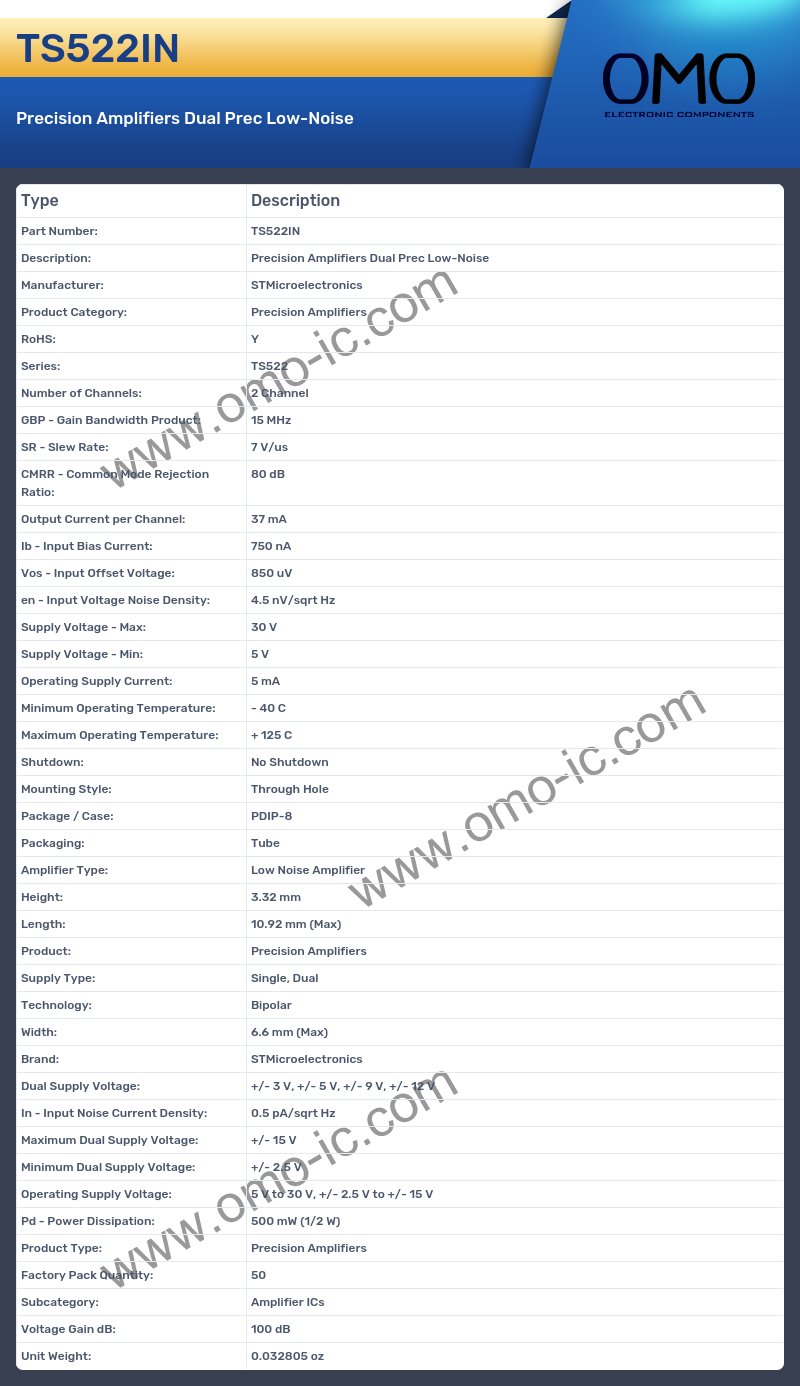

TS522IN Image

TS522IN Specifications

• Manufacturer: STMicroelectronics
• Product Category: Precision Amplifiers
• RoHS: Y
• Series: TS522
• Number of Channels: 2 Channel
• GBP - Gain Bandwidth Product: 15 MHz
• SR - Slew Rate: 7 V/us
• CMRR - Common Mode Rejection Ratio: 80 dB
• Output Current per Channel: 37 mA
• Ib - Input Bias Current: 750 nA
• Vos - Input Offset Voltage: 850 uV
• en - Input Voltage Noise Density: 4.5 nV/sqrt Hz
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 5 V
• Operating Supply Current: 5 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Packaging: Tube
• Amplifier Type: Low Noise Amplifier
• Height: 3.32 mm
• Length: 10.92 mm (Max)
• Product: Precision Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 6.6 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
• In - Input Noise Current Density: 0.5 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 2.5 V
• Operating Supply Voltage: 5 V to 30 V, +/- 2.5 V to +/- 15 V
• Pd - Power Dissipation: 500 mW (1/2 W)
• Product Type: Precision Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 dB
• Unit Weight: 0.032805 oz
