TS514ID

TS514ID Overview

This product is manufactured by STMicroelectronics. This product is equipped with 4 Channel for efficient performance. This product has a 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 150 nA of 5 uA for precise signal processing. Supply Voltage - Max: 30 V Supply Voltage - Min: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. This product does not have a No Shutdown feature, ensuring continuous operation. The product can operate at a maximum temperature of SMD/SMT. SO-14 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is Low Offset Amplifier. The height of the product is 1.65 mm (Max). 8.75 mm (Max) long Precision Amplifiers Supply Type: Single, Dual STMicroelectronics is a trusted brand for quality electronics 1. The maximum dual supply voltage is +/- 15 V. +/- 3 V minimum dual supply voltage 6 V to 30 V, +/- 3 V to +/- 15 V operating supply voltage range 400 mW Precision Amplifiers product type 50 of 100 Amplifier ICs as subcategory 1. 0.009143 oz of Unit Weight

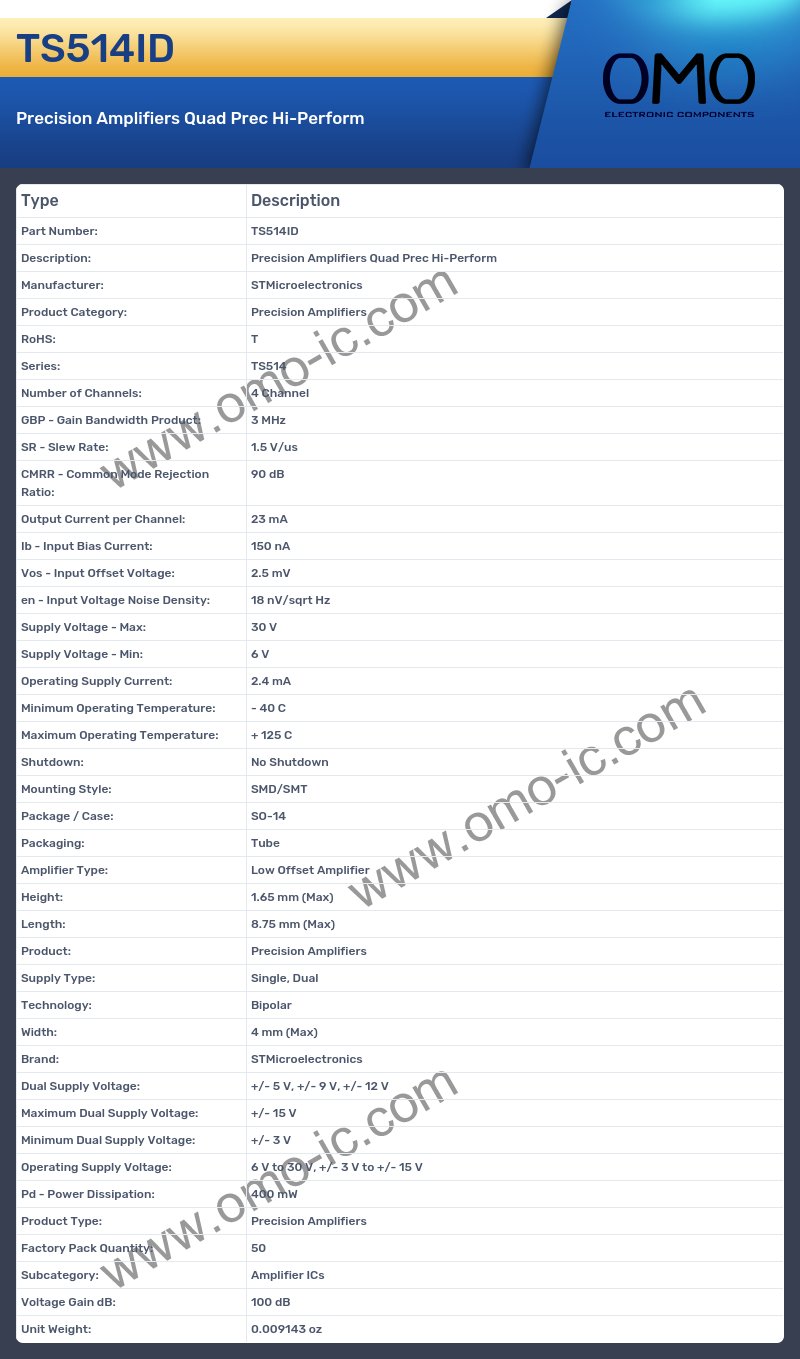

TS514ID Image

TS514ID Specifications

• Manufacturer: STMicroelectronics
• Product Category: Precision Amplifiers
• RoHS: T
• Series: TS514
• Number of Channels: 4 Channel
• GBP - Gain Bandwidth Product: 3 MHz
• SR - Slew Rate: 1.5 V/us
• CMRR - Common Mode Rejection Ratio: 90 dB
• Output Current per Channel: 23 mA
• Ib - Input Bias Current: 150 nA
• Vos - Input Offset Voltage: 2.5 mV
• en - Input Voltage Noise Density: 18 nV/sqrt Hz
• Supply Voltage - Max: 30 V
• Supply Voltage - Min: 6 V
• Operating Supply Current: 2.4 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Shutdown: No Shutdown
• Mounting Style: SMD/SMT
• Package / Case: SO-14
• Packaging: Tube
• Amplifier Type: Low Offset Amplifier
• Height: 1.65 mm (Max)
• Length: 8.75 mm (Max)
• Product: Precision Amplifiers
• Supply Type: Single, Dual
• Technology: Bipolar
• Width: 4 mm (Max)
• Brand: STMicroelectronics
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V
• Maximum Dual Supply Voltage: +/- 15 V
• Minimum Dual Supply Voltage: +/- 3 V
• Operating Supply Voltage: 6 V to 30 V, +/- 3 V to +/- 15 V
• Pd - Power Dissipation: 400 mW
• Product Type: Precision Amplifiers
• Factory Pack Quantity: 50
• Subcategory: Amplifier ICs
• Voltage Gain dB: 100 dB
• Unit Weight: 0.009143 oz
