TPS3809J25DBVR

TPS3809J25DBVR Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOT-23-3 package/case type is utilized by this product. 2.25 V threshold voltage range The output type is Active-low,Push-pull. 200 ms. Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 1.15 mm. 2.9 mm long Output current: 20 mA Texas Instruments is a trusted brand for quality electronics 2.3 V is specified as a product attribute. The 2.2 V is a critical parameter in this product. 2.5 V operating supply voltage range 437 mW Supervisory Circuits product type 3000 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2 V 1. 0.000282 oz of Unit Weight

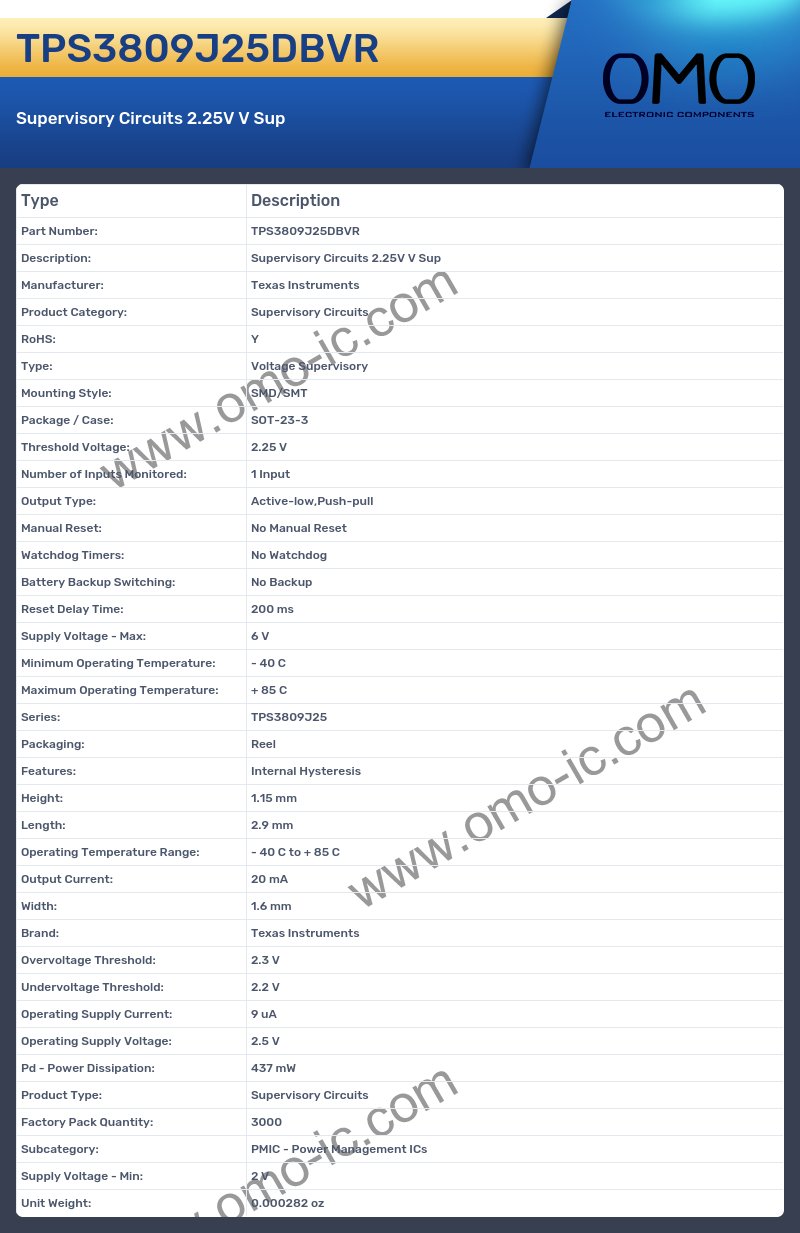

TPS3809J25DBVR Image

TPS3809J25DBVR Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOT-23-3
• Threshold Voltage: 2.25 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active-low,Push-pull
• Manual Reset: No Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: 200 ms
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TPS3809J25
• Packaging: Reel
• Features: Internal Hysteresis
• Height: 1.15 mm
• Length: 2.9 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Current: 20 mA
• Width: 1.6 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 2.3 V
• Undervoltage Threshold: 2.2 V
• Operating Supply Current: 9 uA
• Operating Supply Voltage: 2.5 V
• Pd - Power Dissipation: 437 mW
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 3000
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2 V
• Unit Weight: 0.000282 oz
