TPS3306-15D

TPS3306-15D Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 1.4 V, 2.93 V threshold voltage range The output type is Active-low,Open-drain. 100 ms. Supply Voltage - Max: 6 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 5 mm long Texas Instruments is a trusted brand for quality electronics The 1.4 V, 2.93 V is a critical parameter in this product. No Chip Enable signal is supported. 725 mW Supervisory Circuits product type 75 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 2.7 V 1. 0.002677 oz of Unit Weight

TPS3306-15D Image

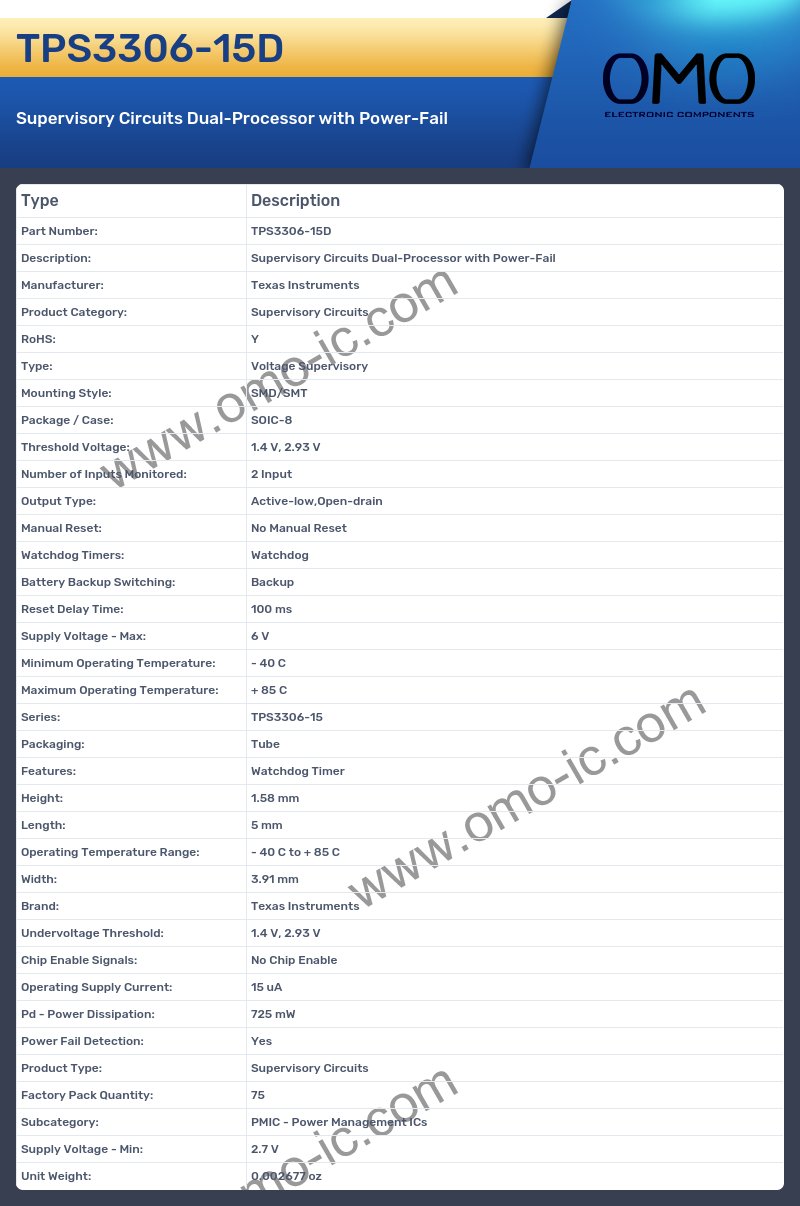

TPS3306-15D Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Threshold Voltage: 1.4 V, 2.93 V
• Number of Inputs Monitored: 2 Input
• Output Type: Active-low,Open-drain
• Manual Reset: No Manual Reset
• Watchdog Timers: Watchdog
• Battery Backup Switching: Backup
• Reset Delay Time: 100 ms
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TPS3306-15
• Packaging: Tube
• Features: Watchdog Timer
• Height: 1.58 mm
• Length: 5 mm
• Operating Temperature Range: - 40 C to + 85 C
• Width: 3.91 mm
• Brand: Texas Instruments
• Undervoltage Threshold: 1.4 V, 2.93 V
• Chip Enable Signals: No Chip Enable
• Operating Supply Current: 15 uA
• Pd - Power Dissipation: 725 mW
• Power Fail Detection: Yes
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 75
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 2.7 V
• Unit Weight: 0.002677 oz
