TPL9201N

TPL9201N Overview

This product is manufactured by Texas Instruments. Relay Drivers This device belongs to the Low Side type. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. 8 Output is the number of outputs provided by this product. Output current: 150 mA This product has a Octal configuration. Supply Voltage - Min: 7 V Supply Voltage - Max: 18 V 1.8 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing 24.33 mm long Output Voltage is 5 V Texas Instruments is a trusted brand for quality electronics CMOS. This product does not have a Yes feature, ensuring continuous operation. Gate Drivers product type 20 of 100 PMIC - Power Management ICs as subcategory 1. 0.042297 oz of Unit Weight

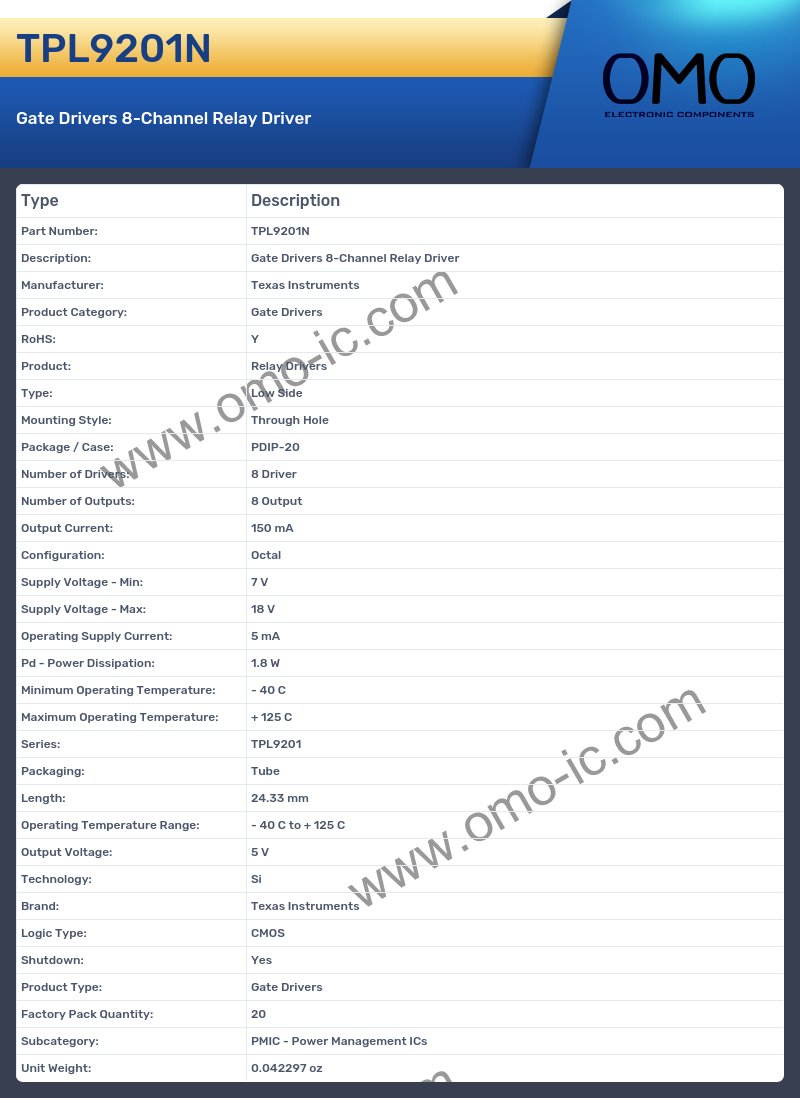

TPL9201N Image

TPL9201N Specifications

• Manufacturer: Texas Instruments
• Product Category: Gate Drivers
• RoHS: Y
• Product: Relay Drivers
• Type: Low Side
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Number of Drivers: 8 Driver
• Number of Outputs: 8 Output
• Output Current: 150 mA
• Configuration: Octal
• Supply Voltage - Min: 7 V
• Supply Voltage - Max: 18 V
• Operating Supply Current: 5 mA
• Pd - Power Dissipation: 1.8 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: TPL9201
• Packaging: Tube
• Length: 24.33 mm
• Operating Temperature Range: - 40 C to + 125 C
• Output Voltage: 5 V
• Technology: Si
• Brand: Texas Instruments
• Logic Type: CMOS
• Shutdown: Yes
• Product Type: Gate Drivers
• Factory Pack Quantity: 20
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.042297 oz
