TLV5630IPW

TLV5630IPW Overview

This product is manufactured by Texas Instruments. The sampling rate of this product is 283 kS/s. This product is equipped with 8 Channel for efficient performance. 1 us settling time Interface Type: Serial, SPI External, Internal is the reference type. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2.7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-20 package/case type is utilized by this product. Tube packaging for easy dispensing The height of the product is 1.15 mm. The output type is Voltage Buffered. This device belongs to the Low Power type. Resistor-String architecture Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. TLV5614-10-30EVM is a versatile development platform for hardware and software The 1 LSB, ensuring accurate and precise analog-to-digital conversion. 0.6 % FSR is 0.2%. INL is within 6 LSB 7 V operating supply voltage range DACs - Digital to Analog Converters product type 70 of 100 Data Converter ICs as subcategory 1. 0.002758 oz of Unit Weight

TLV5630IPW Image

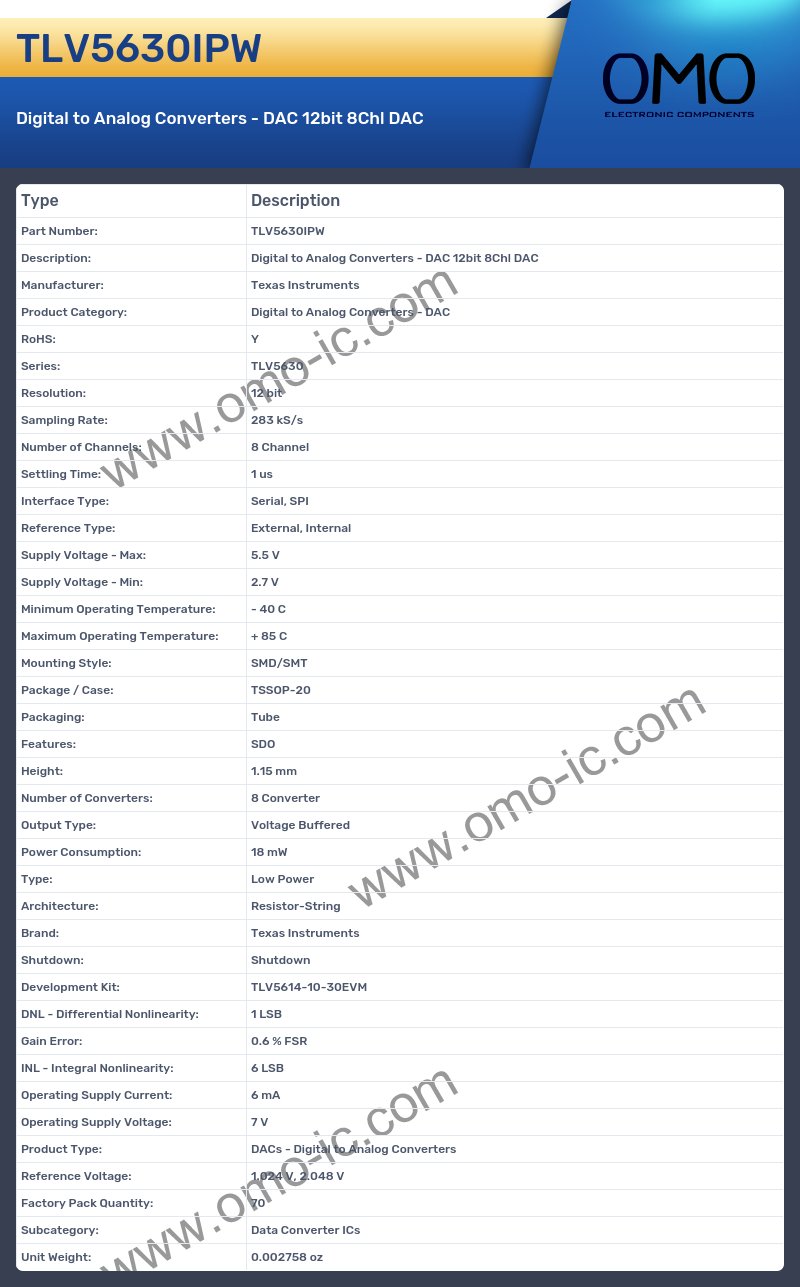

TLV5630IPW Specifications

• Manufacturer: Texas Instruments
• Product Category: Digital to Analog Converters - DAC
• RoHS: Y
• Series: TLV5630
• Resolution: 12 bit
• Sampling Rate: 283 kS/s
• Number of Channels: 8 Channel
• Settling Time: 1 us
• Interface Type: Serial, SPI
• Reference Type: External, Internal
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.7 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-20
• Packaging: Tube
• Features: SDO
• Height: 1.15 mm
• Number of Converters: 8 Converter
• Output Type: Voltage Buffered
• Power Consumption: 18 mW
• Type: Low Power
• Architecture: Resistor-String
• Brand: Texas Instruments
• Shutdown: Shutdown
• Development Kit: TLV5614-10-30EVM
• DNL - Differential Nonlinearity: 1 LSB
• Gain Error: 0.6 % FSR
• INL - Integral Nonlinearity: 6 LSB
• Operating Supply Current: 6 mA
• Operating Supply Voltage: 7 V
• Product Type: DACs - Digital to Analog Converters
• Reference Voltage: 1.024 V, 2.048 V
• Factory Pack Quantity: 70
• Subcategory: Data Converter ICs
• Unit Weight: 0.002758 oz
