TLC5940PWP Overview

This product is manufactured by Texas Instruments. This product is equipped with 16 Channel for efficient performance. Output current: 120 mA 3 V to 5.5 V Input Voltage Maximum supply current: 6 mA The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. HTSSOP-28 package/case type is utilized by this product. Tube packaging for easy dispensing The output type is Constant Current. This device belongs to the Linear type. Texas Instruments is a trusted brand for quality electronics Boost Topology This product has a - 1 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 1 mA Yes regarding Moisture Sensitivity 3 V to 5.5 V operating supply voltage range LED Lighting Drivers product type 50 of 100 Driver ICs as subcategory 1. 0.004180 oz of Unit Weight

TLC5940PWP Image

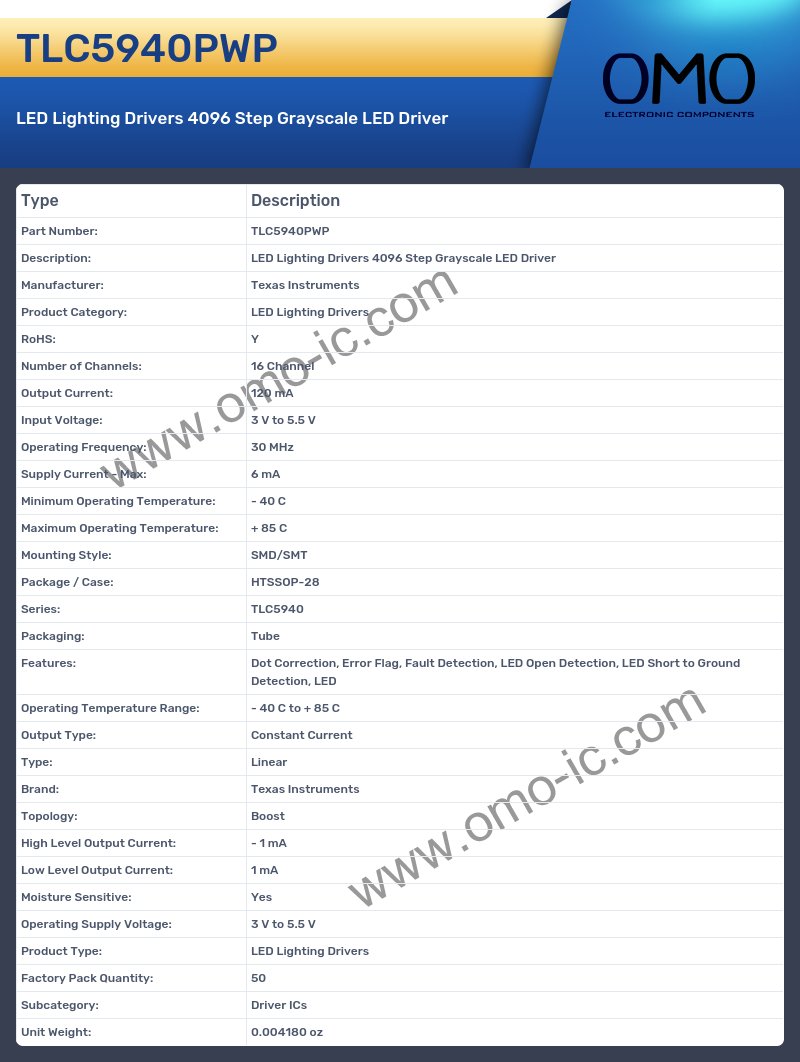

TLC5940PWP Specifications

• Manufacturer: Texas Instruments
• Product Category: LED Lighting Drivers
• RoHS: Y
• Number of Channels: 16 Channel
• Output Current: 120 mA
• Input Voltage: 3 V to 5.5 V
• Operating Frequency: 30 MHz
• Supply Current - Max: 6 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: HTSSOP-28
• Series: TLC5940
• Packaging: Tube
• Features: Dot Correction, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: Constant Current
• Type: Linear
• Brand: Texas Instruments
• Topology: Boost
• High Level Output Current: - 1 mA
• Low Level Output Current: 1 mA
• Moisture Sensitive: Yes
• Operating Supply Voltage: 3 V to 5.5 V
• Product Type: LED Lighting Drivers
• Factory Pack Quantity: 50
• Subcategory: Driver ICs
• Unit Weight: 0.004180 oz
