TLC2543CDWR

TLC2543CDWR Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. SOIC-20 package/case type is utilized by this product. This product is equipped with 11 Channel for efficient performance. The sampling rate of this product is 66 kS/s. Single-Ended input type Interface Type: SPI SAR architecture External is the reference type. This product requires an 4.5 V to 5.5 V for proper operation. The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Reel packaging for easy dispensing The height of the product is 2.35 mm. 12.8 mm long Texas Instruments is a trusted brand for quality electronics The +/- 1 LSB, ensuring accurate and precise analog-to-digital conversion. INL is within +/- 1 LSB 4.5 V to 5.5 V operating supply voltage range ADCs - Analog to Digital Converters product type 2000 of 100 Data Converter ICs as subcategory 1. 0.018953 oz of Unit Weight

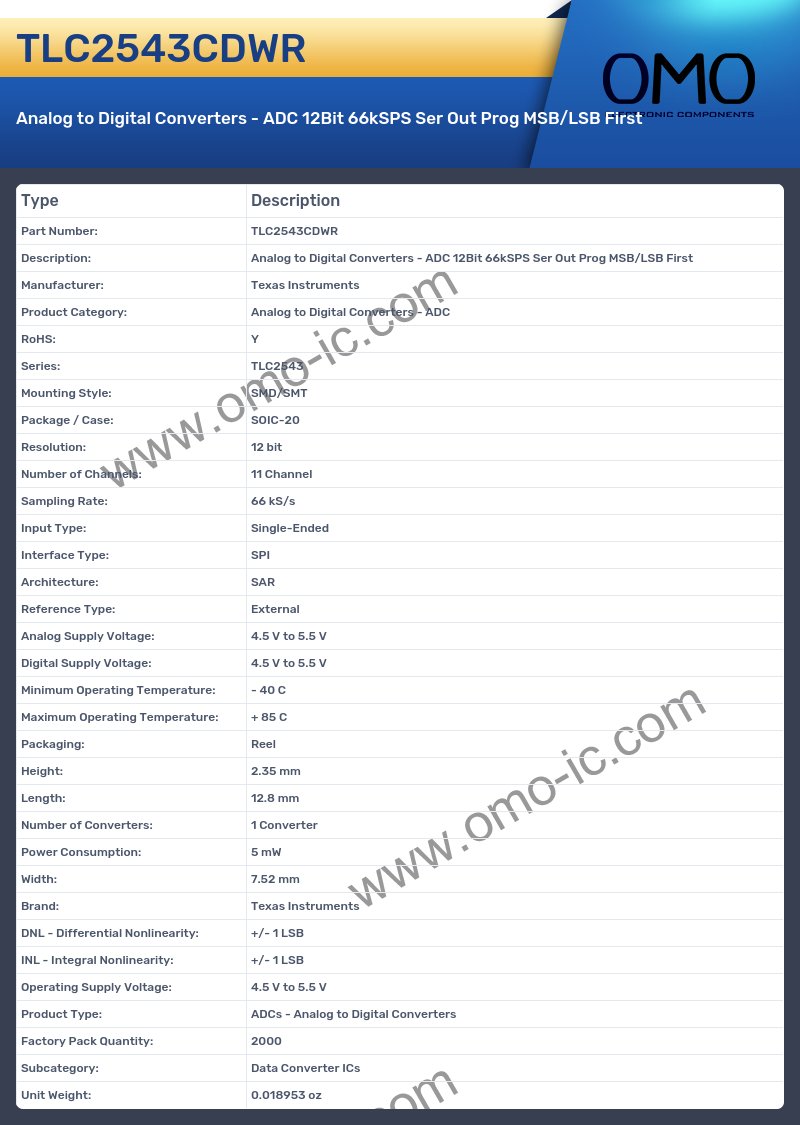

TLC2543CDWR Image

TLC2543CDWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: TLC2543
• Mounting Style: SMD/SMT
• Package / Case: SOIC-20
• Resolution: 12 bit
• Number of Channels: 11 Channel
• Sampling Rate: 66 kS/s
• Input Type: Single-Ended
• Interface Type: SPI
• Architecture: SAR
• Reference Type: External
• Analog Supply Voltage: 4.5 V to 5.5 V
• Digital Supply Voltage: 4.5 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Reel
• Height: 2.35 mm
• Length: 12.8 mm
• Number of Converters: 1 Converter
• Power Consumption: 5 mW
• Width: 7.52 mm
• Brand: Texas Instruments
• DNL - Differential Nonlinearity: +/- 1 LSB
• INL - Integral Nonlinearity: +/- 1 LSB
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: ADCs - Analog to Digital Converters
• Factory Pack Quantity: 2000
• Subcategory: Data Converter ICs
• Unit Weight: 0.018953 oz
