TL7702BCP Overview

This product is manufactured by Texas Instruments. This device belongs to the Voltage Supervisory type. The product can operate at a maximum temperature of Through Hole. PDIP-8 package/case type is utilized by this product. 2.53 V threshold voltage range The output type is Active High, Active Low, Open Drain. Programmable. Supply Voltage - Max: 18 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The height of the product is 4.57 mm. 9.81 mm long Output current: - 20 mA Texas Instruments is a trusted brand for quality electronics 2.555 V is specified as a product attribute. The 2.505 V is a critical parameter in this product. Supervisory Circuits product type 50 of 100 PMIC - Power Management ICs as subcategory Supply Voltage - Min: 3.6 V 1. 0.015535 oz of Unit Weight

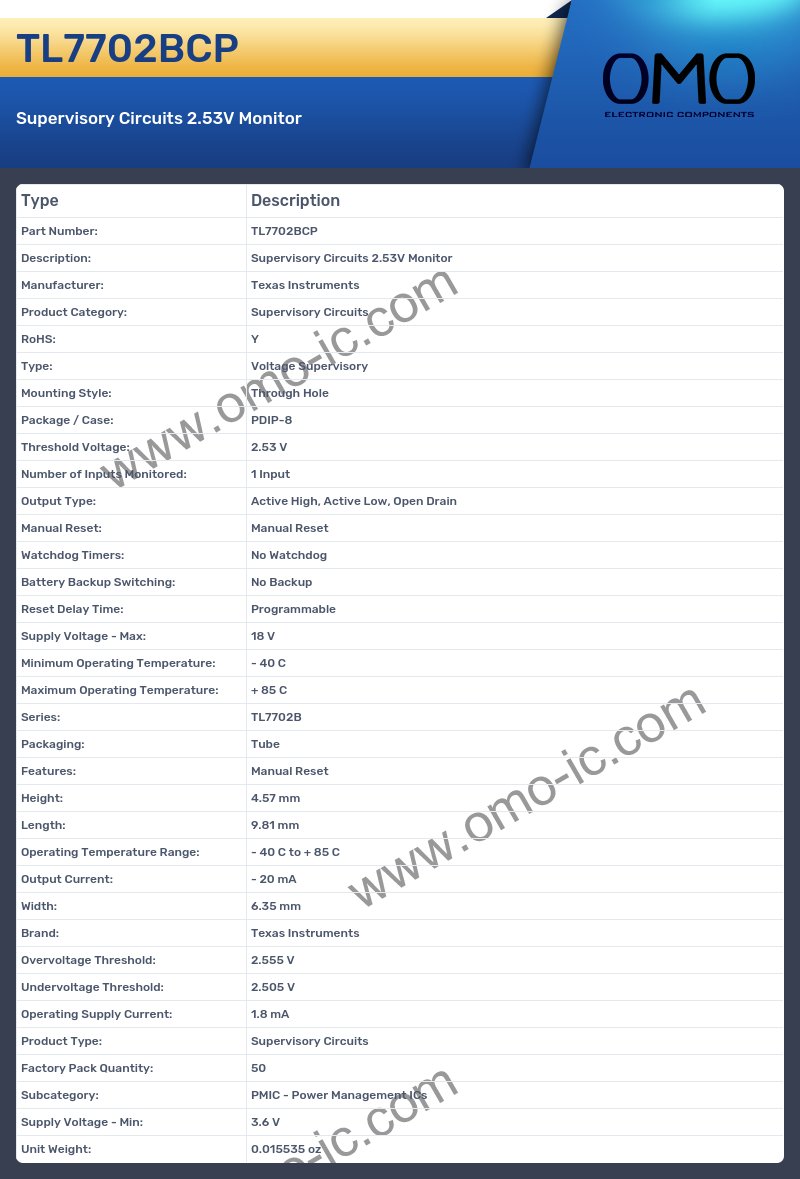

TL7702BCP Image

TL7702BCP Specifications

• Manufacturer: Texas Instruments
• Product Category: Supervisory Circuits
• RoHS: Y
• Type: Voltage Supervisory
• Mounting Style: Through Hole
• Package / Case: PDIP-8
• Threshold Voltage: 2.53 V
• Number of Inputs Monitored: 1 Input
• Output Type: Active High, Active Low, Open Drain
• Manual Reset: Manual Reset
• Watchdog Timers: No Watchdog
• Battery Backup Switching: No Backup
• Reset Delay Time: Programmable
• Supply Voltage - Max: 18 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: TL7702B
• Packaging: Tube
• Features: Manual Reset
• Height: 4.57 mm
• Length: 9.81 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Current: - 20 mA
• Width: 6.35 mm
• Brand: Texas Instruments
• Overvoltage Threshold: 2.555 V
• Undervoltage Threshold: 2.505 V
• Operating Supply Current: 1.8 mA
• Product Type: Supervisory Circuits
• Factory Pack Quantity: 50
• Subcategory: PMIC - Power Management ICs
• Supply Voltage - Min: 3.6 V
• Unit Weight: 0.015535 oz
