TDA2009A

TDA2009A Overview

This product is manufactured by STMicroelectronics. Audio Amplifiers Product Class is Class-AB Output power: 12.5 W The product can operate at a maximum temperature of Through Hole. This device belongs to the 2-Channel Stereo type. Multiwatt-11 package/case type is utilized by this product. Load impedance of 8 Ohms is supported. THD plus Noise value is 0.2 %. Supply Voltage - Max: 28 V Supply Voltage - Min: 8 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 150 C. Tube packaging for easy dispensing The height of the product is 10.7 mm. Single input type 19.6 mm long Output current: 4500 mA Supply Type: Single STMicroelectronics is a trusted brand for quality electronics 36 dB is 11.5 dB. This product is equipped with 2 Channel for efficient performance. 9 V, 12 V, 15 V, 18 V, 24 V operating supply voltage range Output signal type is Single 20000 mW Audio Amplifiers product type This product has a 55 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Audio ICs as subcategory 1. 0.191996 oz of Unit Weight

TDA2009A Image

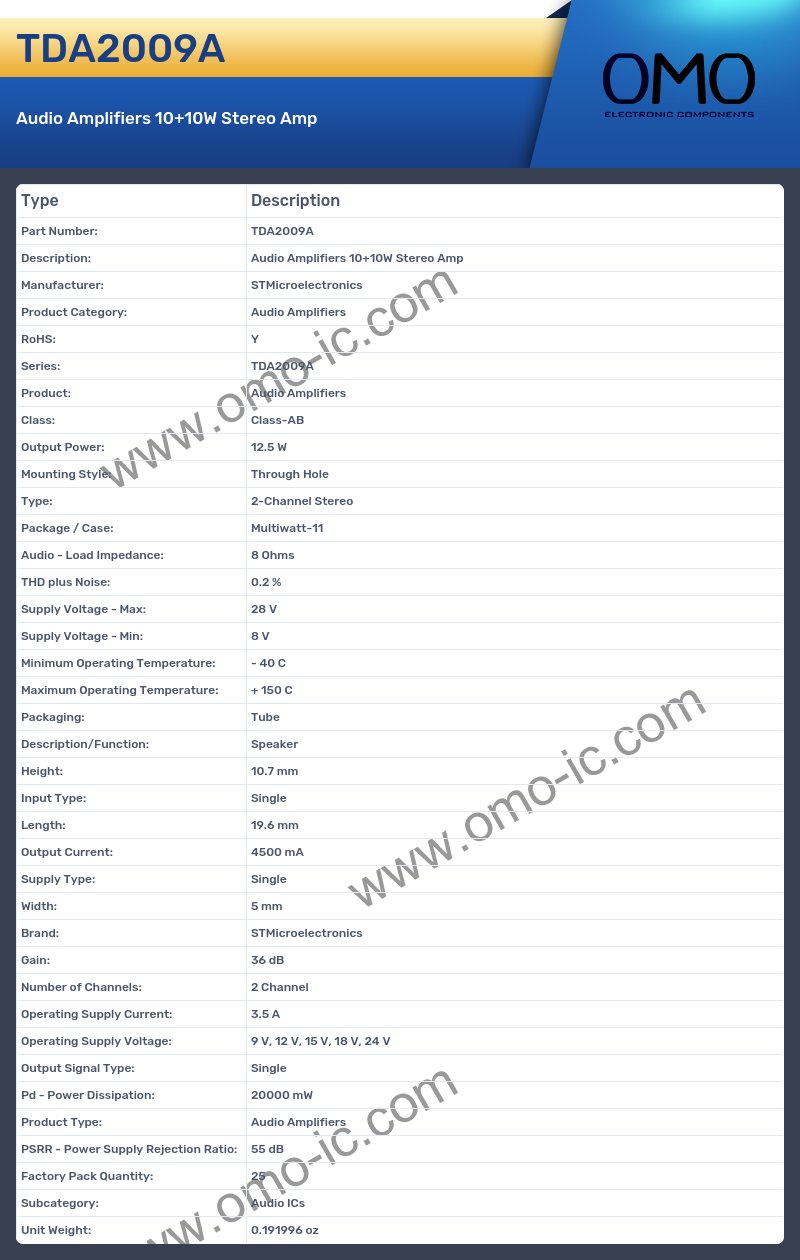

TDA2009A Specifications

• Manufacturer: STMicroelectronics
• Product Category: Audio Amplifiers
• RoHS: Y
• Series: TDA2009A
• Product: Audio Amplifiers
• Class: Class-AB
• Output Power: 12.5 W
• Mounting Style: Through Hole
• Type: 2-Channel Stereo
• Package / Case: Multiwatt-11
• Audio - Load Impedance: 8 Ohms
• THD plus Noise: 0.2 %
• Supply Voltage - Max: 28 V
• Supply Voltage - Min: 8 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 150 C
• Packaging: Tube
• Description/Function: Speaker
• Height: 10.7 mm
• Input Type: Single
• Length: 19.6 mm
• Output Current: 4500 mA
• Supply Type: Single
• Width: 5 mm
• Brand: STMicroelectronics
• Gain: 36 dB
• Number of Channels: 2 Channel
• Operating Supply Current: 3.5 A
• Operating Supply Voltage: 9 V, 12 V, 15 V, 18 V, 24 V
• Output Signal Type: Single
• Pd - Power Dissipation: 20000 mW
• Product Type: Audio Amplifiers
• PSRR - Power Supply Rejection Ratio: 55 dB
• Factory Pack Quantity: 25
• Subcategory: Audio ICs
• Unit Weight: 0.191996 oz
