STP80NE03L-06

STP80NE03L-06 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 30 V 80 A continuous drain current Rds On value of 6 mOhms Gate-Source Voltage: 22 V The minimum operating temperature of this product is - 65 C. The product can operate at a maximum temperature of + 175 C. 150 W This product has a Single configuration. The Channel Mode is set to Enhancement. Tube packaging for easy dispensing The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 50 S 165 ns fall time MOSFET product type Rise Time is 260 ns. 50 of 100 MOSFETs as subcategory The typical turn-on delay time is 40 ns. 1. 0.079014 oz of Unit Weight

STP80NE03L-06 Image

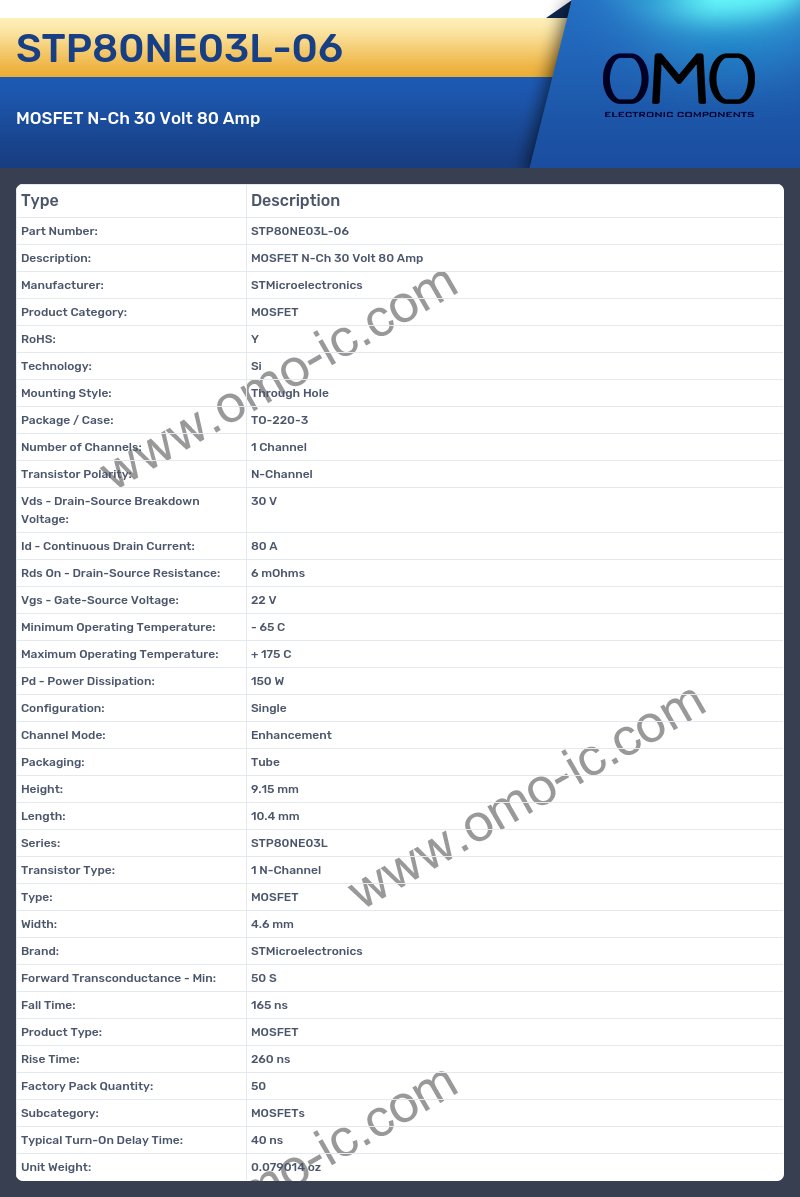

STP80NE03L-06 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 6 mOhms
• Vgs - Gate-Source Voltage: 22 V
• Minimum Operating Temperature: - 65 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 150 W
• Configuration: Single
• Channel Mode: Enhancement
• Packaging: Tube
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP80NE03L
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 4.6 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 50 S
• Fall Time: 165 ns
• Product Type: MOSFET
• Rise Time: 260 ns
• Factory Pack Quantity: 50
• Subcategory: MOSFETs
• Typical Turn-On Delay Time: 40 ns
• Unit Weight: 0.079014 oz
