STP46N60M6

STP46N60M6 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 36 A continuous drain current Rds On value of 80 mOhms Gate-Source Threshold Voltage Range: 3.25 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 250 W This product has a Single configuration. The Channel Mode is set to Enhancement. The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 8.5 ns fall time MOSFET product type Rise Time is 15.5 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 48.4 ns. The typical turn-on delay time is 20 ns.

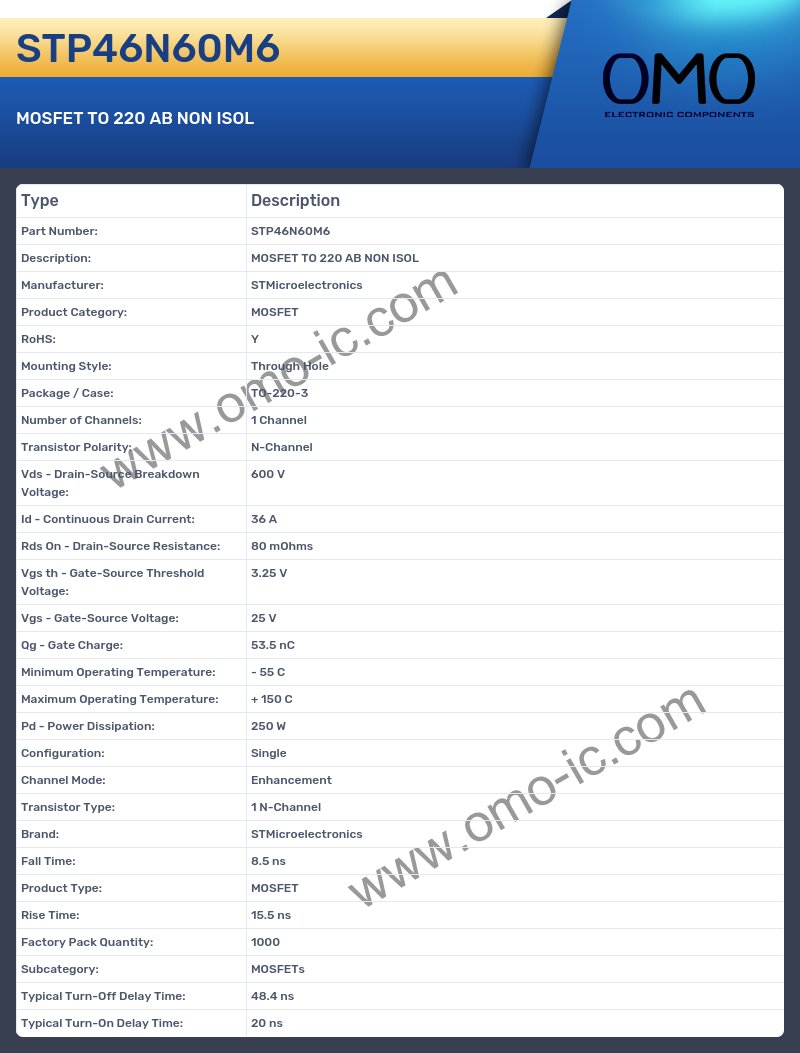

STP46N60M6 Image

STP46N60M6 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 36 A
• Rds On - Drain-Source Resistance: 80 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3.25 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 53.5 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 250 W
• Configuration: Single
• Channel Mode: Enhancement
• Transistor Type: 1 N-Channel
• Brand: STMicroelectronics
• Fall Time: 8.5 ns
• Product Type: MOSFET
• Rise Time: 15.5 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 48.4 ns
• Typical Turn-On Delay Time: 20 ns
