STP13NK60Z

STP13NK60Z Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. TO-220-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 600 V 13 A continuous drain current Rds On value of 550 mOhms Gate-Source Voltage: 30 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 150 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's SuperMESH is Blue Gecko. The height of the product is 9.15 mm. 10.4 mm long The Transistor Type is 1 N-Channel. This device belongs to the MOSFET type. STMicroelectronics is a trusted brand for quality electronics Minimum forward transconductance of 11 S 12 ns fall time MOSFET product type Rise Time is 14 ns. 1000 of 100 MOSFETs as subcategory Turn-off delay time is 61 ns. The typical turn-on delay time is 22 ns. 1. 0.050717 oz of Unit Weight

STP13NK60Z Image

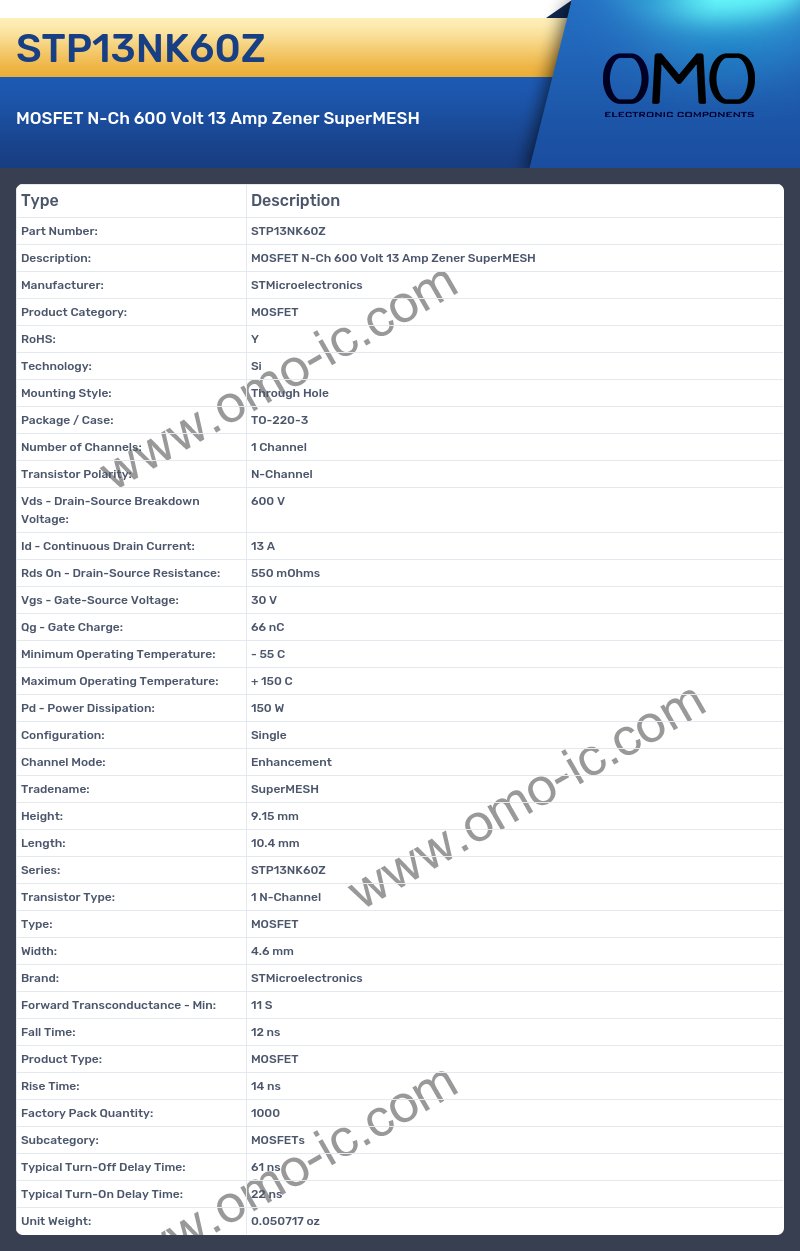

STP13NK60Z Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: Through Hole
• Package / Case: TO-220-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 13 A
• Rds On - Drain-Source Resistance: 550 mOhms
• Vgs - Gate-Source Voltage: 30 V
• Qg - Gate Charge: 66 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 150 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: SuperMESH
• Height: 9.15 mm
• Length: 10.4 mm
• Series: STP13NK60Z
• Transistor Type: 1 N-Channel
• Type: MOSFET
• Width: 4.6 mm
• Brand: STMicroelectronics
• Forward Transconductance - Min: 11 S
• Fall Time: 12 ns
• Product Type: MOSFET
• Rise Time: 14 ns
• Factory Pack Quantity: 1000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 61 ns
• Typical Turn-On Delay Time: 22 ns
• Unit Weight: 0.050717 oz
