STGWA15H120F2

STGWA15H120F2 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of Through Hole. This product has a Single configuration. The maximum 1200 V. The 2.5 V. Maximum gate emitter voltage is 20 V Continuous Collector Current at 25 C is 30 A 259 W The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. STMicroelectronics is a trusted brand for quality electronics Gate-Emitter Leakage Current: +/- 250 nA IGBT Transistors product type 600 of 100 IGBTs as subcategory

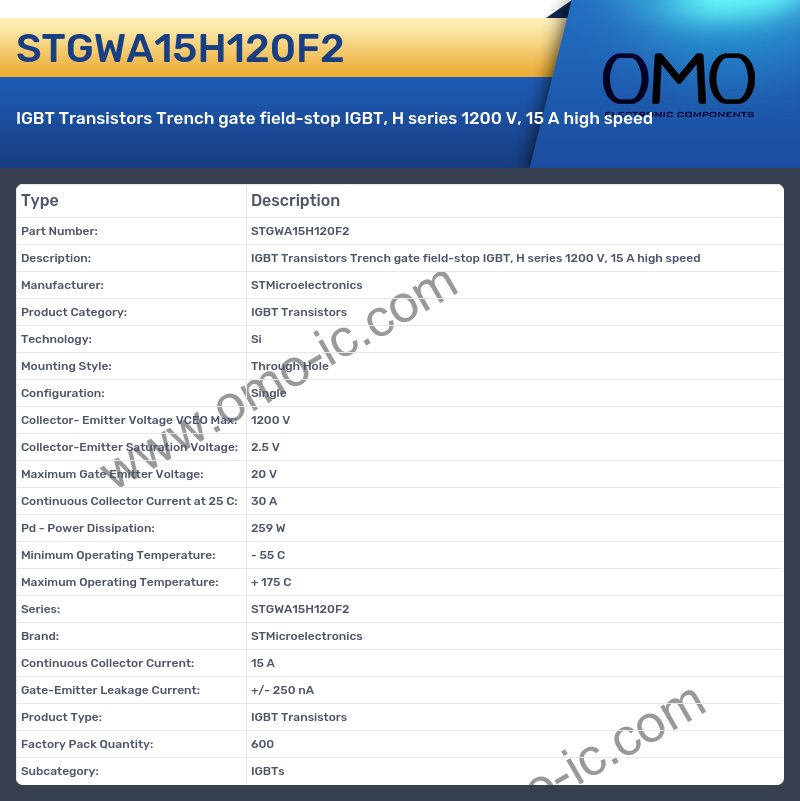

STGWA15H120F2 Image

STGWA15H120F2 Specifications

• Manufacturer: STMicroelectronics
• Product Category: IGBT Transistors
• Technology: Si
• Mounting Style: Through Hole
• Configuration: Single
• Collector- Emitter Voltage VCEO Max: 1200 V
• Collector-Emitter Saturation Voltage: 2.5 V
• Maximum Gate Emitter Voltage: 20 V
• Continuous Collector Current at 25 C: 30 A
• Pd - Power Dissipation: 259 W
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Series: STGWA15H120F2
• Brand: STMicroelectronics
• Continuous Collector Current: 15 A
• Gate-Emitter Leakage Current: +/- 250 nA
• Product Type: IGBT Transistors
• Factory Pack Quantity: 600
• Subcategory: IGBTs
