STD9NM50N

STD9NM50N Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 500 V 7.5 A continuous drain current Rds On value of 560 mOhms Gate-Source Threshold Voltage Range: 3 V Gate-Source Voltage: 25 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 70 W This product has a Single configuration. The Channel Mode is set to Enhancement. The AEC-Q101 Qualification The product's MDmesh is Blue Gecko. Reel packaging for easy dispensing The height of the product is 2.4 mm. 6.6 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 19 ns fall time MOSFET product type Rise Time is 16 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 45 ns. The typical turn-on delay time is 11 ns. 1. 0.139332 oz of Unit Weight

STD9NM50N Image

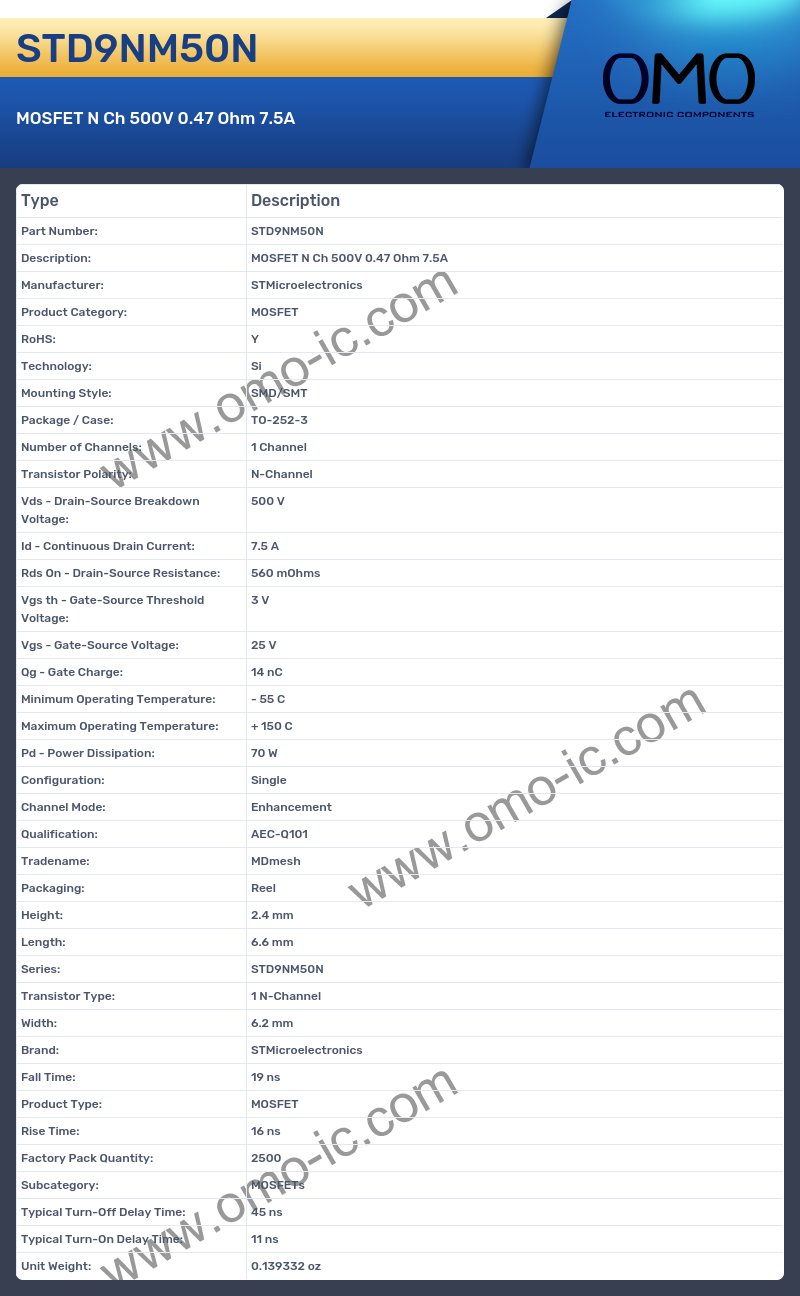

STD9NM50N Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 500 V
• Id - Continuous Drain Current: 7.5 A
• Rds On - Drain-Source Resistance: 560 mOhms
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Vgs - Gate-Source Voltage: 25 V
• Qg - Gate Charge: 14 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 70 W
• Configuration: Single
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Tradename: MDmesh
• Packaging: Reel
• Height: 2.4 mm
• Length: 6.6 mm
• Series: STD9NM50N
• Transistor Type: 1 N-Channel
• Width: 6.2 mm
• Brand: STMicroelectronics
• Fall Time: 19 ns
• Product Type: MOSFET
• Rise Time: 16 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 45 ns
• Typical Turn-On Delay Time: 11 ns
• Unit Weight: 0.139332 oz
