STD60N55F3

STD60N55F3 Overview

This product is manufactured by STMicroelectronics. The product can operate at a maximum temperature of SMD/SMT. TO-252-3 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 55 V 80 A continuous drain current Rds On value of 8.5 mOhms Gate-Source Voltage: 20 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 175 C. 110 W This product has a Single configuration. The Channel Mode is set to Enhancement. The product's STripFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 2.4 mm. 6.6 mm long The Transistor Type is 1 N-Channel. STMicroelectronics is a trusted brand for quality electronics 11.5 ns fall time MOSFET product type Rise Time is 50 ns. 2500 of 100 MOSFETs as subcategory Turn-off delay time is 35 ns. The typical turn-on delay time is 20 ns. 1. 0.139332 oz of Unit Weight

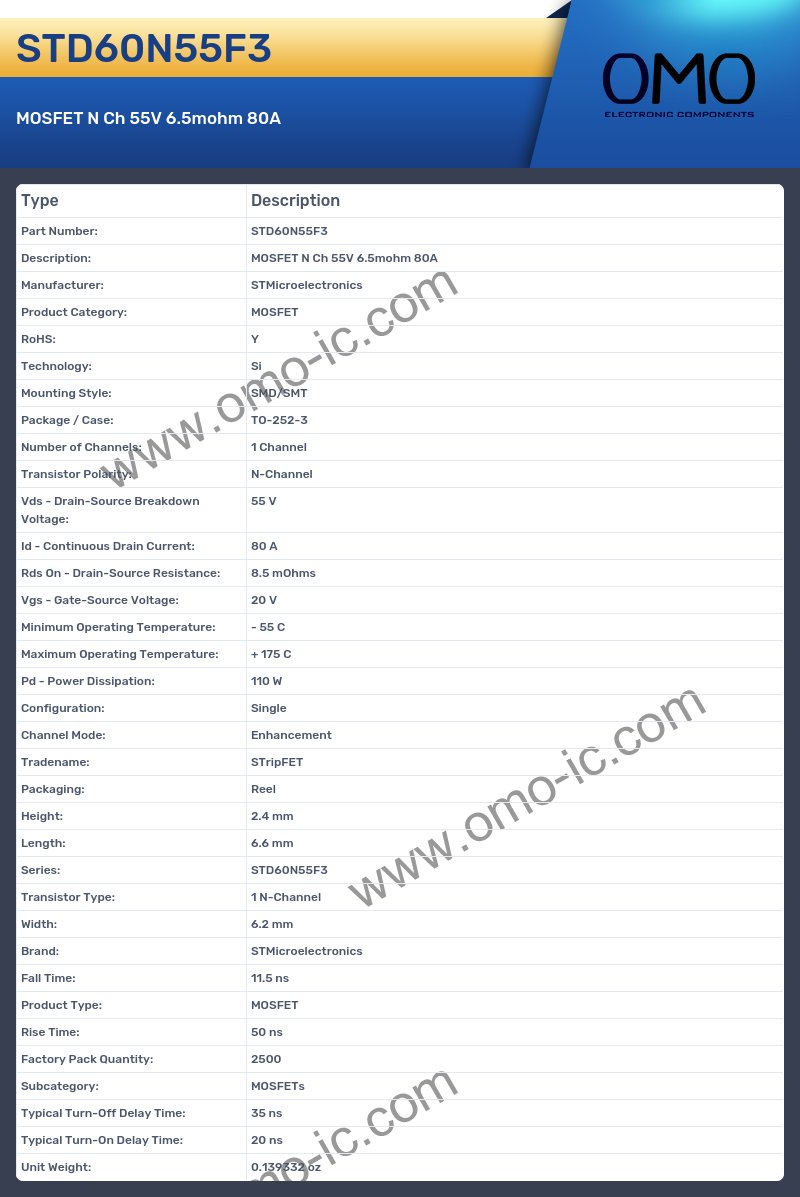

STD60N55F3 Image

STD60N55F3 Specifications

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: TO-252-3
• Number of Channels: 1 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 55 V
• Id - Continuous Drain Current: 80 A
• Rds On - Drain-Source Resistance: 8.5 mOhms
• Vgs - Gate-Source Voltage: 20 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 110 W
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: STripFET
• Packaging: Reel
• Height: 2.4 mm
• Length: 6.6 mm
• Series: STD60N55F3
• Transistor Type: 1 N-Channel
• Width: 6.2 mm
• Brand: STMicroelectronics
• Fall Time: 11.5 ns
• Product Type: MOSFET
• Rise Time: 50 ns
• Factory Pack Quantity: 2500
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 35 ns
• Typical Turn-On Delay Time: 20 ns
• Unit Weight: 0.139332 oz
