SN74LVC2G00WDCTREP

SN74LVC2G00WDCTREP Overview

This product is manufactured by Texas Instruments. Single-Function Gate NAND logic function The product uses the 74LVC logic family. The product boasts a whopping 2 Gate gates for unparalleled processing power. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 5.3 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 1.65 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 115 C. The product can operate at a maximum temperature of SMD/SMT. SM-8 package/case type is utilized by this product. Reel packaging for easy dispensing t's a NAND The height of the product is 1.29 mm. CMOS, TTL input type 2.95 mm long Texas Instruments is a trusted brand for quality electronics True. 1.8 V, 2.5 V, 3.3 V, 5 V operating supply voltage range Logic Gates product type 3000 of 100 Logic ICs as subcategory This product is also known by the V62/05623-01XE number of 934069005115. 1. 0.000825 oz of Unit Weight

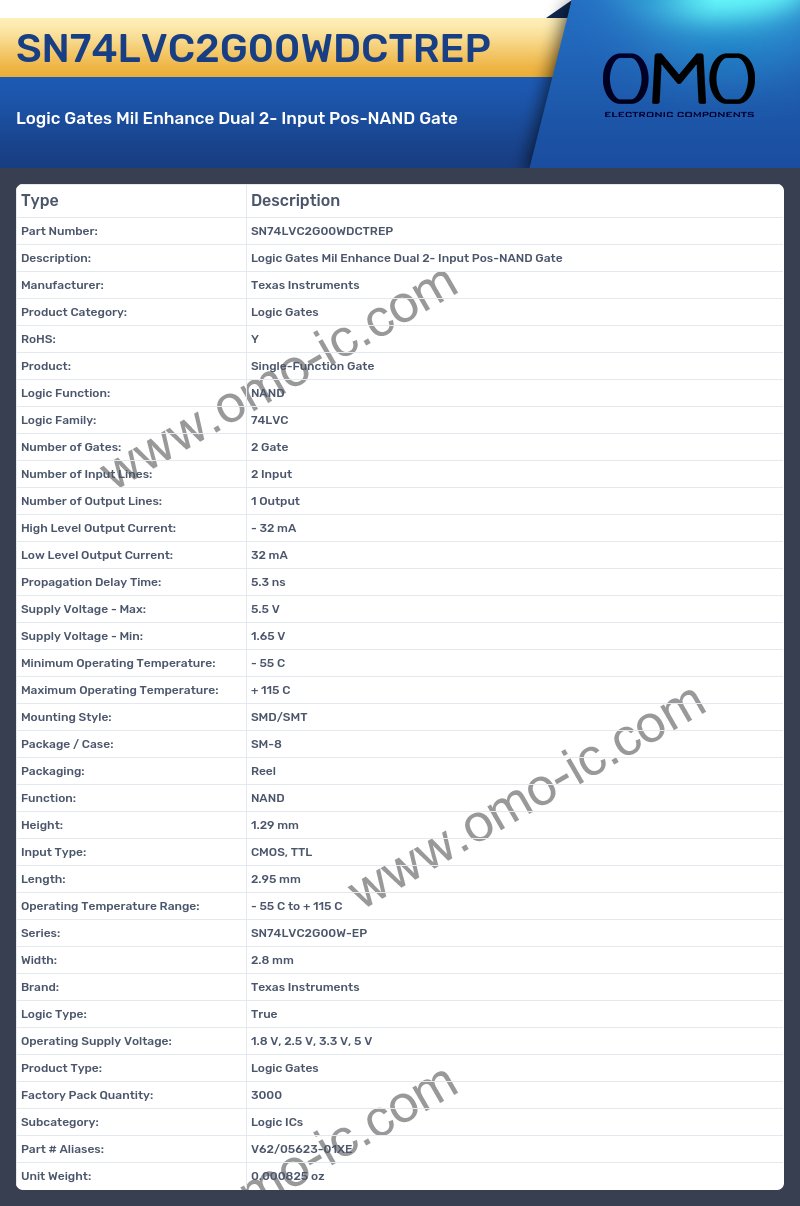

SN74LVC2G00WDCTREP Image

SN74LVC2G00WDCTREP Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: NAND
• Logic Family: 74LVC
• Number of Gates: 2 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 32 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 5.3 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 1.65 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 115 C
• Mounting Style: SMD/SMT
• Package / Case: SM-8
• Packaging: Reel
• Function: NAND
• Height: 1.29 mm
• Input Type: CMOS, TTL
• Length: 2.95 mm
• Operating Temperature Range: - 55 C to + 115 C
• Series: SN74LVC2G00W-EP
• Width: 2.8 mm
• Brand: Texas Instruments
• Logic Type: True
• Operating Supply Voltage: 1.8 V, 2.5 V, 3.3 V, 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 3000
• Subcategory: Logic ICs
• Part # Aliases: V62/05623-01XE
• Unit Weight: 0.000825 oz
