SN74LV21ADGVR

SN74LV21ADGVR Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the LV-A logic family. The product boasts a whopping 2 Gate gates for unparalleled processing power. This product has a - 12 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 12 mA The propagation delay time is 8.5 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. TVSOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a These dual 4-input positive-AND gates are designed for 2-V to 5.5-V VCC operation The height of the product is 1.05 mm. TTL input type 3.6 mm long The output type is TTL. Texas Instruments is a trusted brand for quality electronics 4-Input AND. Number of bits: 2 bit 5 V operating supply voltage range Logic Gates product type 2000 of 100 Logic ICs as subcategory 1. 0.001474 oz of Unit Weight

SN74LV21ADGVR Image

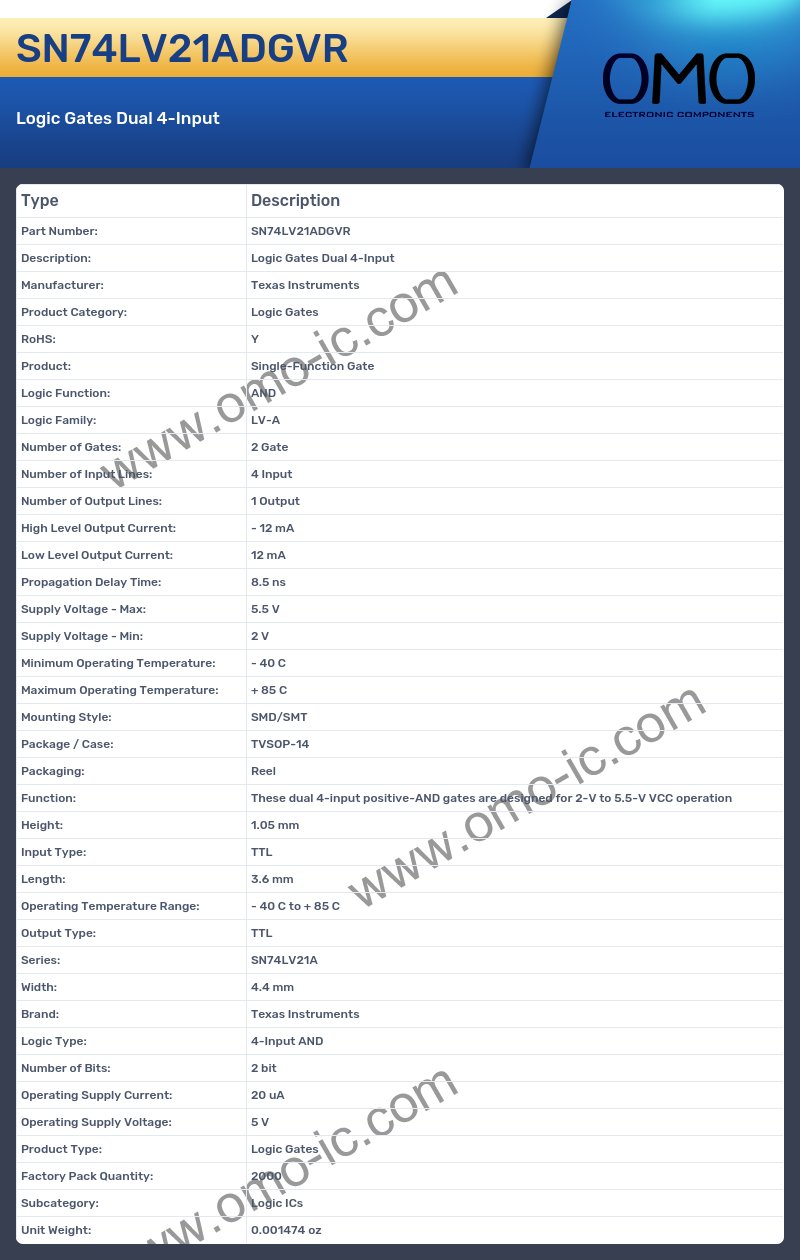

SN74LV21ADGVR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: LV-A
• Number of Gates: 2 Gate
• Number of Input Lines: 4 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 12 mA
• Low Level Output Current: 12 mA
• Propagation Delay Time: 8.5 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: TVSOP-14
• Packaging: Reel
• Function: These dual 4-input positive-AND gates are designed for 2-V to 5.5-V VCC operation
• Height: 1.05 mm
• Input Type: TTL
• Length: 3.6 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: TTL
• Series: SN74LV21A
• Width: 4.4 mm
• Brand: Texas Instruments
• Logic Type: 4-Input AND
• Number of Bits: 2 bit
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.001474 oz
