SN74LV05APWR

SN74LV05APWR Overview

This product is manufactured by Texas Instruments. This product has 6 Circuit circuit. The product uses the LV-A logic family. CMOS. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. TSSOP-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Driver The height of the product is 1.05 mm (Max). LVTTL input type 5.1 mm (Max) long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics This product has a 0 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 12 mA 5 V operating supply voltage range Inverters product type The propagation delay time is 8.5 ns. 2000 of 100 Logic ICs as subcategory 1. 0.002018 oz of Unit Weight

SN74LV05APWR Image

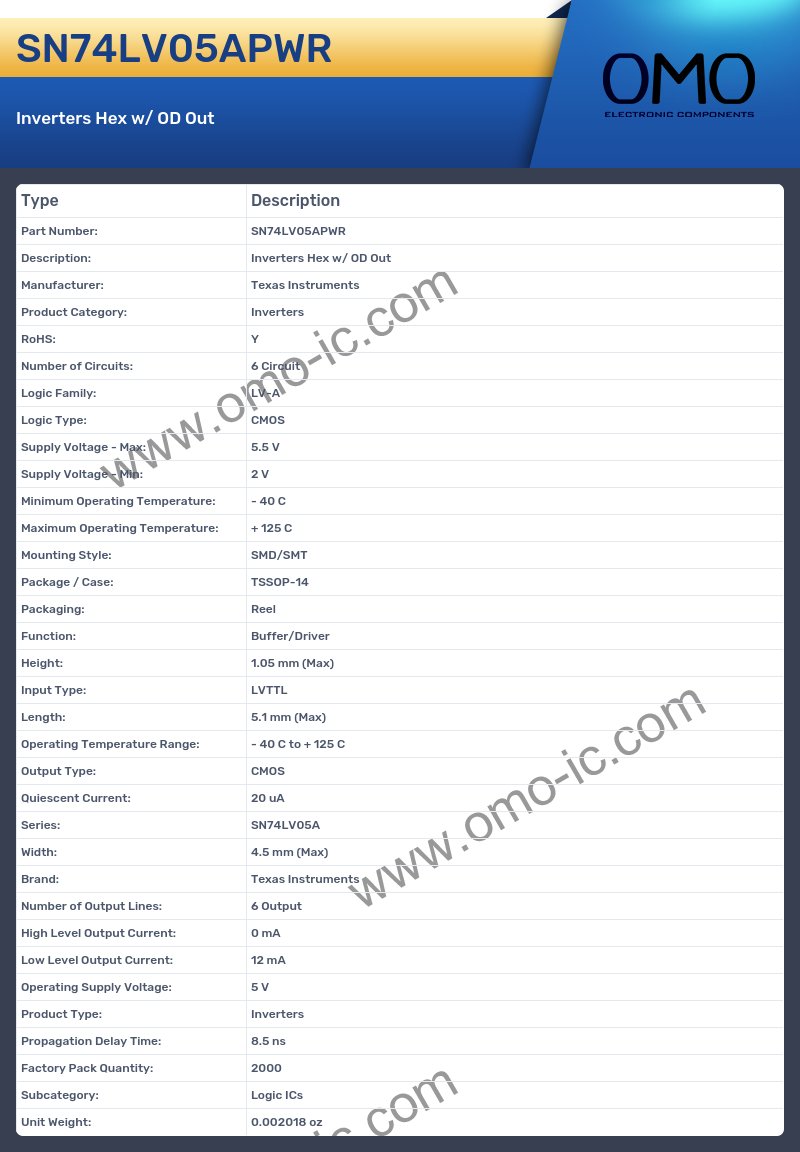

SN74LV05APWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Inverters
• RoHS: Y
• Number of Circuits: 6 Circuit
• Logic Family: LV-A
• Logic Type: CMOS
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: TSSOP-14
• Packaging: Reel
• Function: Buffer/Driver
• Height: 1.05 mm (Max)
• Input Type: LVTTL
• Length: 5.1 mm (Max)
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: CMOS
• Quiescent Current: 20 uA
• Series: SN74LV05A
• Width: 4.5 mm (Max)
• Brand: Texas Instruments
• Number of Output Lines: 6 Output
• High Level Output Current: 0 mA
• Low Level Output Current: 12 mA
• Operating Supply Voltage: 5 V
• Product Type: Inverters
• Propagation Delay Time: 8.5 ns
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.002018 oz
