SN74LS423D

SN74LS423D Overview

This product is manufactured by Texas Instruments. The product uses the LS logic family. Monostable Multivibrator. SOP-16 package/case type is utilized by this product. Maximum supply current: 12 mA The propagation delay time is 56 ns. This product has a - 0.4 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA Supply Voltage - Max: 5.25 V Supply Voltage - Min: 4.75 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing The height of the product is 1.58 mm. 9.9 mm long Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. 5 V operating supply voltage range Monostable Multivibrator product type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

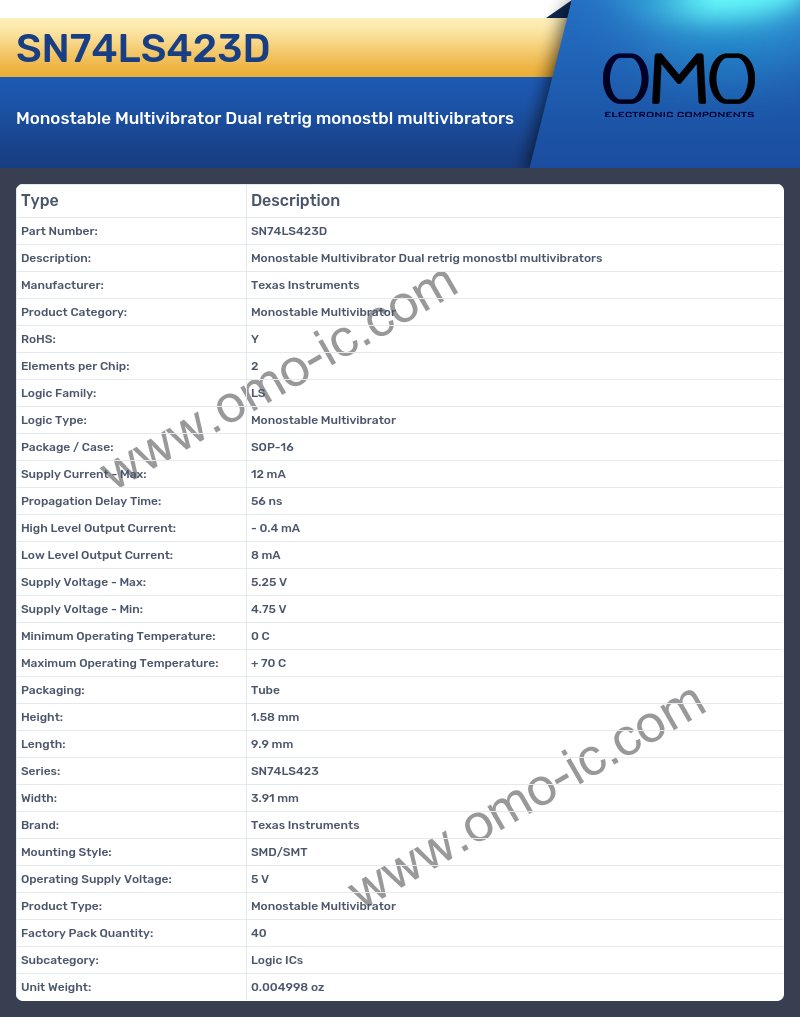

SN74LS423D Image

SN74LS423D Specifications

• Manufacturer: Texas Instruments
• Product Category: Monostable Multivibrator
• RoHS: Y
• Elements per Chip: 2
• Logic Family: LS
• Logic Type: Monostable Multivibrator
• Package / Case: SOP-16
• Supply Current - Max: 12 mA
• Propagation Delay Time: 56 ns
• High Level Output Current: - 0.4 mA
• Low Level Output Current: 8 mA
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Height: 1.58 mm
• Length: 9.9 mm
• Series: SN74LS423
• Width: 3.91 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Operating Supply Voltage: 5 V
• Product Type: Monostable Multivibrator
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
