SN74HCT541NE4

SN74HCT541NE4 Overview

This product is manufactured by Texas Instruments. Polarity type: Non-Inverting Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Buffer/Line Driver The height of the product is 4.57 mm. 24.33 mm long The output type is 3-State. Texas Instruments is a trusted brand for quality electronics The product uses the HCT logic family. CMOS. This product is equipped with 8 for efficient performance. Maximum supply current: 8 uA This product has a - 6 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 6 mA 4.5 V to 5.5 V operating supply voltage range Buffers & Line Drivers product type The propagation delay time is 33 ns at 4.5 V. 20 of 100 Logic ICs as subcategory 1. 0.042297 oz of Unit Weight

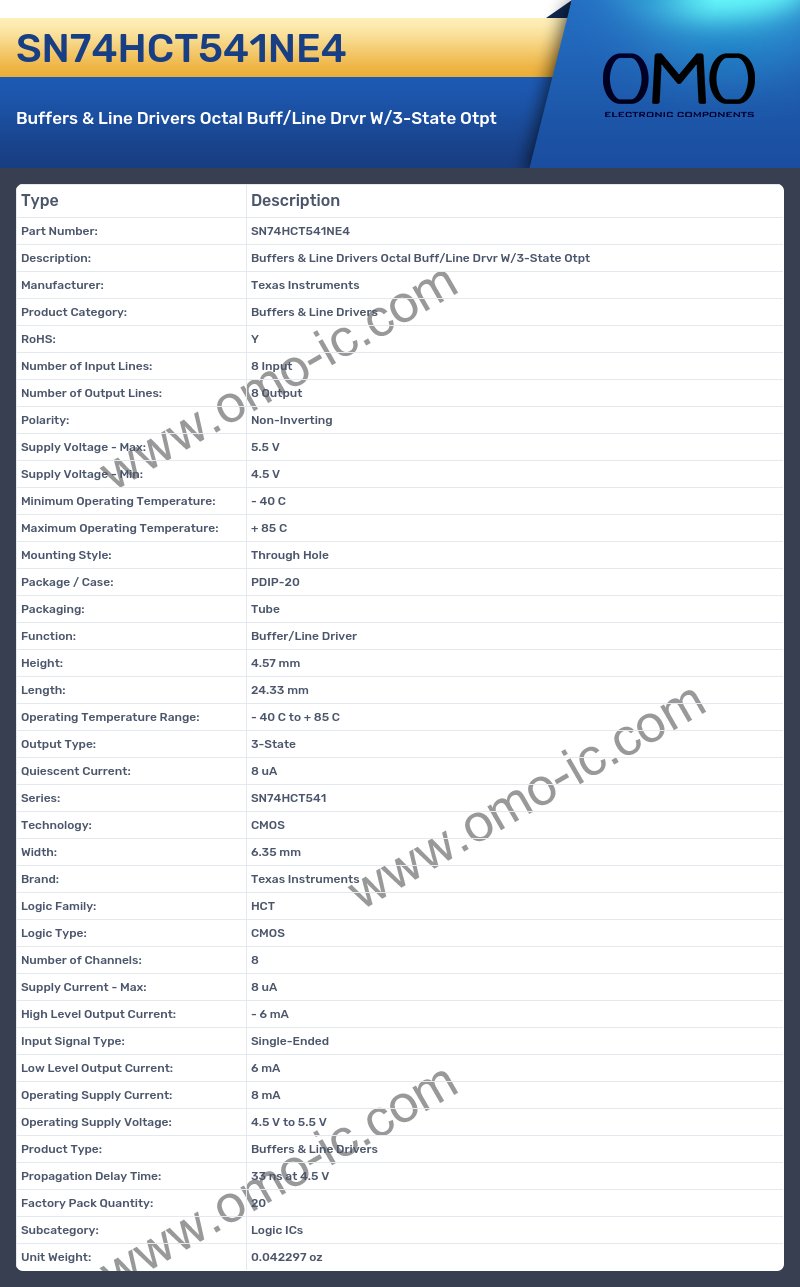

SN74HCT541NE4 Image

SN74HCT541NE4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 8 Input
• Number of Output Lines: 8 Output
• Polarity: Non-Inverting
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Packaging: Tube
• Function: Buffer/Line Driver
• Height: 4.57 mm
• Length: 24.33 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: 3-State
• Quiescent Current: 8 uA
• Series: SN74HCT541
• Technology: CMOS
• Width: 6.35 mm
• Brand: Texas Instruments
• Logic Family: HCT
• Logic Type: CMOS
• Number of Channels: 8
• Supply Current - Max: 8 uA
• High Level Output Current: - 6 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 6 mA
• Operating Supply Current: 8 mA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 33 ns at 4.5 V
• Factory Pack Quantity: 20
• Subcategory: Logic ICs
• Unit Weight: 0.042297 oz
