SN74ALS843DWR

SN74ALS843DWR Overview

This product is manufactured by Texas Instruments. This product has 1 Circuit circuit. True. The product uses the ALS logic family. Polarity type: Non-Inverting This product has a - 2.6 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 32 mA The propagation delay time is 18 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. SOIC-24 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Transparent The height of the product is 2.35 mm. 15.4 mm long The output type is 3-State. This device belongs to the D-Type type. Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 9 Channels for efficient performance. 5 V operating supply voltage range Latches product type Master Set Reset Type 2000 of 100 Logic ICs as subcategory 1. 0.022025 oz of Unit Weight

SN74ALS843DWR Image

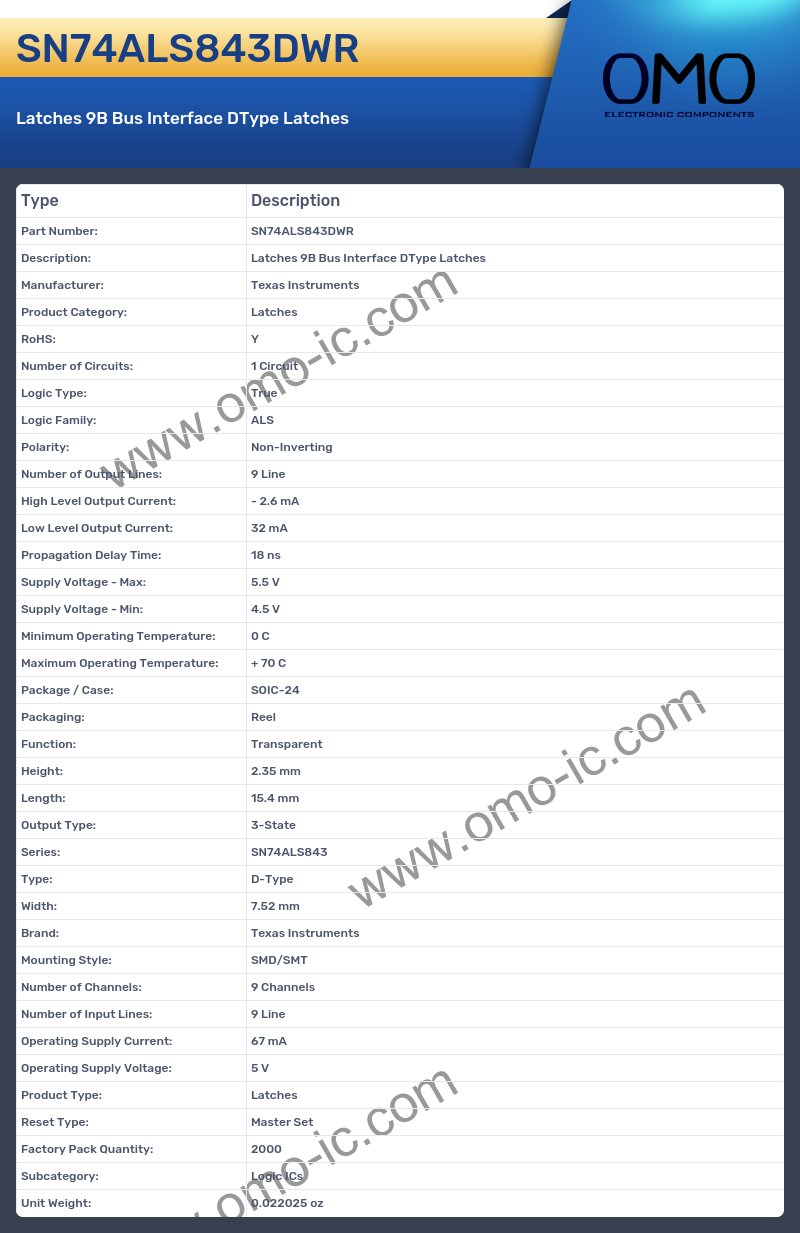

SN74ALS843DWR Specifications

• Manufacturer: Texas Instruments
• Product Category: Latches
• RoHS: Y
• Number of Circuits: 1 Circuit
• Logic Type: True
• Logic Family: ALS
• Polarity: Non-Inverting
• Number of Output Lines: 9 Line
• High Level Output Current: - 2.6 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 18 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Package / Case: SOIC-24
• Packaging: Reel
• Function: Transparent
• Height: 2.35 mm
• Length: 15.4 mm
• Output Type: 3-State
• Series: SN74ALS843
• Type: D-Type
• Width: 7.52 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 9 Channels
• Number of Input Lines: 9 Line
• Operating Supply Current: 67 mA
• Operating Supply Voltage: 5 V
• Product Type: Latches
• Reset Type: Master Set
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.022025 oz
