SN74AHCT138DG4

SN74AHCT138DG4 Overview

This product is manufactured by Texas Instruments. Decoders / Demultiplexers The product uses the AHCT logic family. The propagation delay time is 12 ns. Supply Voltage - Min: 4.5 V Supply Voltage - Max: 5.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Decoder/Demultiplexer The height of the product is 1.58 mm. 9.9 mm long This product has 1 Circuit circuit. Texas Instruments is a trusted brand for quality electronics CMOS. Maximum supply current: 0.004 mA This product has a - 8 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 8 mA The Maximum Clock Frequency of this product is 70 MHz. 5 V operating supply voltage range Encoders, Decoders, Multiplexers & Demultiplexers product type 40 of 100 Logic ICs as subcategory 1. 0.004998 oz of Unit Weight

SN74AHCT138DG4 Image

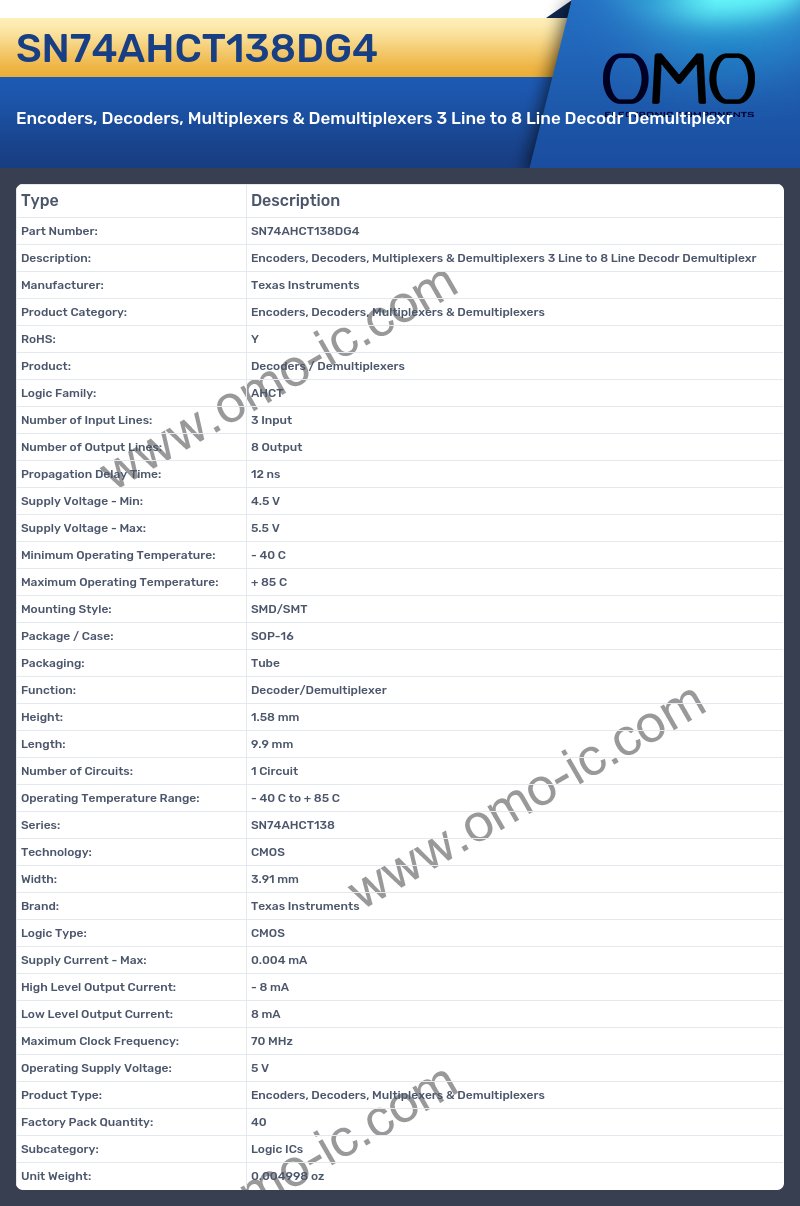

SN74AHCT138DG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
• RoHS: Y
• Product: Decoders / Demultiplexers
• Logic Family: AHCT
• Number of Input Lines: 3 Input
• Number of Output Lines: 8 Output
• Propagation Delay Time: 12 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Tube
• Function: Decoder/Demultiplexer
• Height: 1.58 mm
• Length: 9.9 mm
• Number of Circuits: 1 Circuit
• Operating Temperature Range: - 40 C to + 85 C
• Series: SN74AHCT138
• Technology: CMOS
• Width: 3.91 mm
• Brand: Texas Instruments
• Logic Type: CMOS
• Supply Current - Max: 0.004 mA
• High Level Output Current: - 8 mA
• Low Level Output Current: 8 mA
• Maximum Clock Frequency: 70 MHz
• Operating Supply Voltage: 5 V
• Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
• Factory Pack Quantity: 40
• Subcategory: Logic ICs
• Unit Weight: 0.004998 oz
