SN74AC08NSR

SN74AC08NSR Overview

This product is manufactured by Texas Instruments. Single-Function Gate AND logic function The product uses the AC logic family. The product boasts a whopping 4 Gate gates for unparalleled processing power. This product has a - 24 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 24 mA The propagation delay time is 8.5 ns. Supply Voltage - Max: 6 V Supply Voltage - Min: 2 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SO-14 package/case type is utilized by this product. Reel packaging for easy dispensing t's a AND The height of the product is 1.95 mm. CMOS input type 10.3 mm long The output type is CMOS. Texas Instruments is a trusted brand for quality electronics 2-Input AND. Number of bits: 4 bit 5 V operating supply voltage range Logic Gates product type 2000 of 100 Logic ICs as subcategory 1. 0.007348 oz of Unit Weight

SN74AC08NSR Image

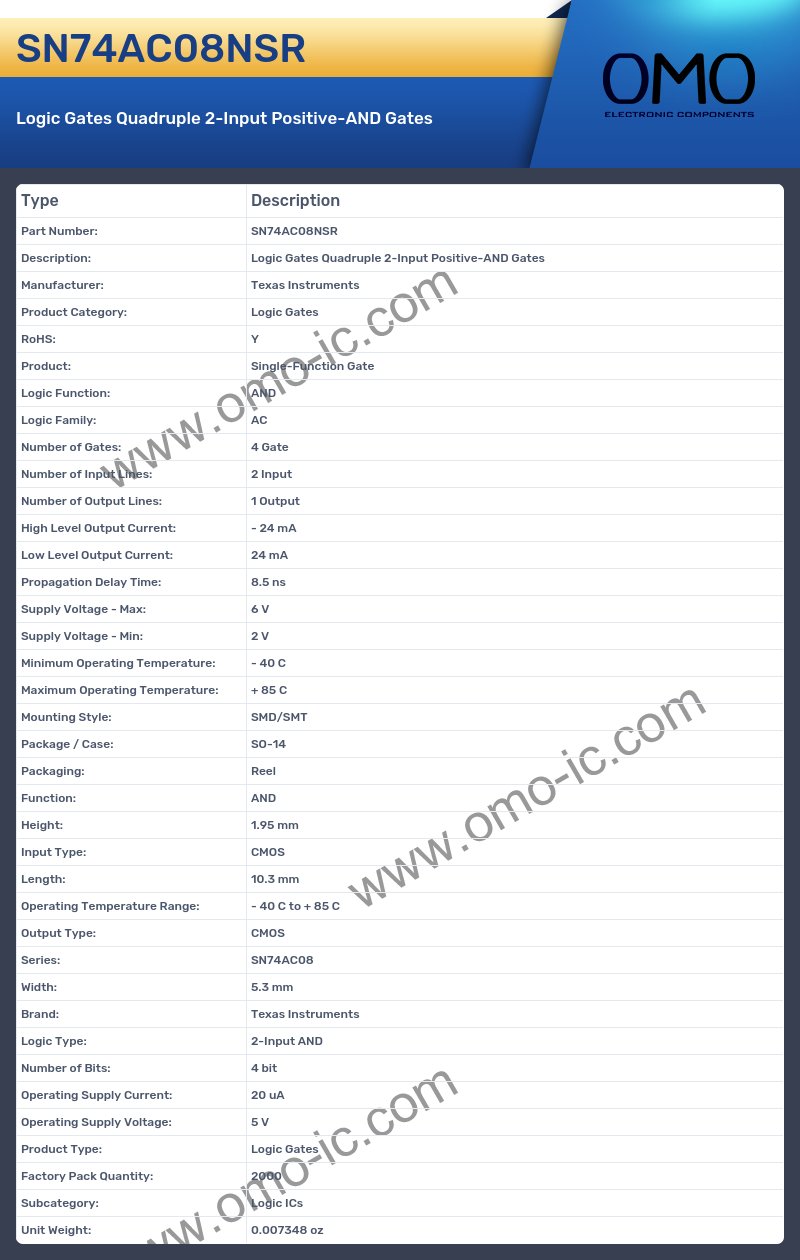

SN74AC08NSR Specifications

• Manufacturer: Texas Instruments
• Product Category: Logic Gates
• RoHS: Y
• Product: Single-Function Gate
• Logic Function: AND
• Logic Family: AC
• Number of Gates: 4 Gate
• Number of Input Lines: 2 Input
• Number of Output Lines: 1 Output
• High Level Output Current: - 24 mA
• Low Level Output Current: 24 mA
• Propagation Delay Time: 8.5 ns
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SO-14
• Packaging: Reel
• Function: AND
• Height: 1.95 mm
• Input Type: CMOS
• Length: 10.3 mm
• Operating Temperature Range: - 40 C to + 85 C
• Output Type: CMOS
• Series: SN74AC08
• Width: 5.3 mm
• Brand: Texas Instruments
• Logic Type: 2-Input AND
• Number of Bits: 4 bit
• Operating Supply Current: 20 uA
• Operating Supply Voltage: 5 V
• Product Type: Logic Gates
• Factory Pack Quantity: 2000
• Subcategory: Logic ICs
• Unit Weight: 0.007348 oz
