SN74ABT543APW

SN74ABT543APW Overview

This product is manufactured by Texas Instruments. The product uses the 74ABT logic family. The product's TTL input level ensures compatibility with a wide range of devices. TTL Output Level for flexible output configuration The output type is 3-State. This product has a - 32 mA, ensuring reliable performance in demanding applications. Low Level Output Current is 64 mA The propagation delay time is 5.9 ns. Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. TSSOP-24 package/case type is utilized by this product. Tube packaging for easy dispensing t's a Octal Registered The height of the product is 1.15 mm. 7.8 mm long This product has 8 circuit. BiCMOS Texas Instruments is a trusted brand for quality electronics The product can operate at a maximum temperature of SMD/SMT. This product is equipped with 8 for efficient performance. Maximum supply current: 30 mA 4.5 V to 5.5 V operating supply voltage range Polarity type: Non-Inverting Bus Transceivers product type 60 of 100 Logic ICs as subcategory 1. 0.003157 oz of Unit Weight

SN74ABT543APW Image

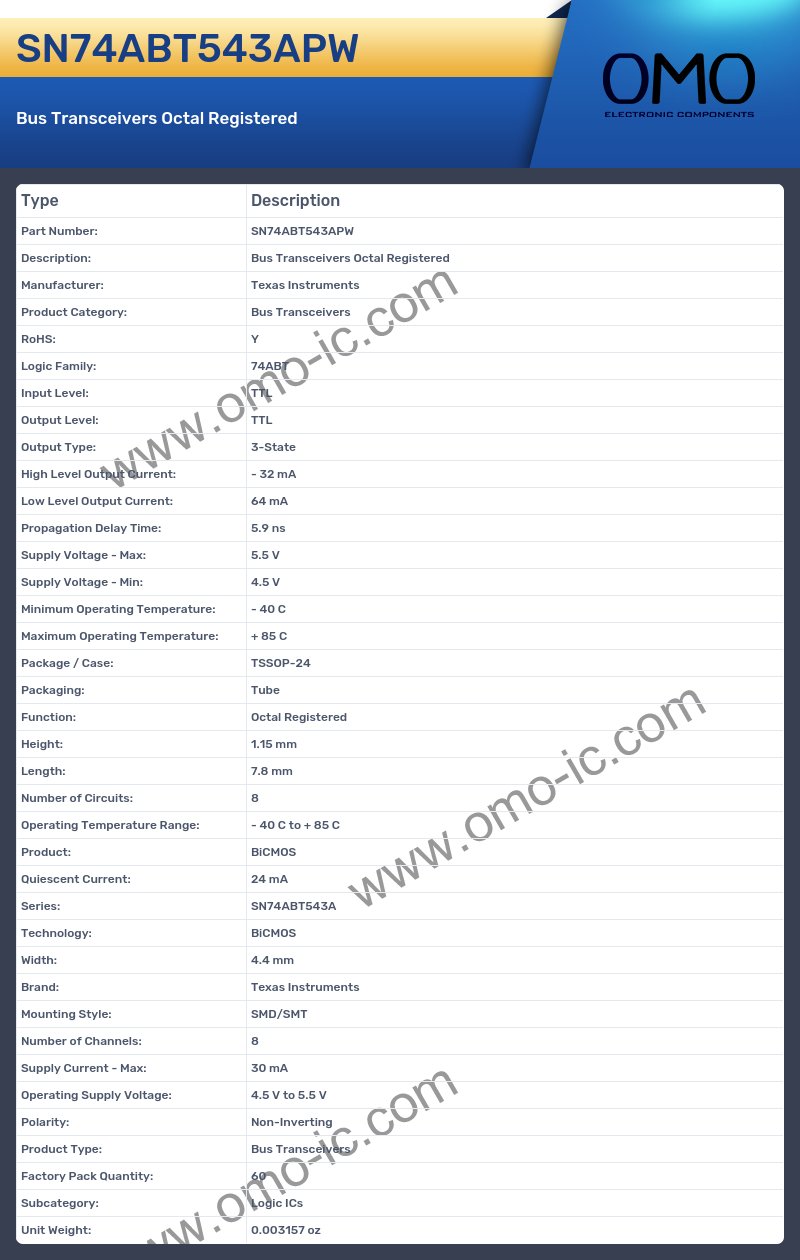

SN74ABT543APW Specifications

• Manufacturer: Texas Instruments
• Product Category: Bus Transceivers
• RoHS: Y
• Logic Family: 74ABT
• Input Level: TTL
• Output Level: TTL
• Output Type: 3-State
• High Level Output Current: - 32 mA
• Low Level Output Current: 64 mA
• Propagation Delay Time: 5.9 ns
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Package / Case: TSSOP-24
• Packaging: Tube
• Function: Octal Registered
• Height: 1.15 mm
• Length: 7.8 mm
• Number of Circuits: 8
• Operating Temperature Range: - 40 C to + 85 C
• Product: BiCMOS
• Quiescent Current: 24 mA
• Series: SN74ABT543A
• Technology: BiCMOS
• Width: 4.4 mm
• Brand: Texas Instruments
• Mounting Style: SMD/SMT
• Number of Channels: 8
• Supply Current - Max: 30 mA
• Operating Supply Voltage: 4.5 V to 5.5 V
• Polarity: Non-Inverting
• Product Type: Bus Transceivers
• Factory Pack Quantity: 60
• Subcategory: Logic ICs
• Unit Weight: 0.003157 oz
