REF43FZ

REF43FZ Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of Through Hole. CDIP-8 package/case type is utilized by this product. Series Precision References is the reference type. Output Voltage is 2.5 V Temperature Coefficient is 10 PPM/C Maximum input voltage for series VREF is 40 V. 20 mA (Typ) is the maximum shunt current The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. Tube packaging for easy dispensing The accuracy of this product is 20 PPM/mA. The height of the product is 3.56 mm (Max). 4.5 V to 40 V Input Voltage 10.29 mm (Max) long Output current: 20 mA (Typ) Voltage References This device belongs to the Precision Voltage Reference type. Analog Devices is a trusted brand for quality electronics Maximum supply current: 340 uA Series References Topology Load regulation is 20 PPM/mA. Voltage References product type 48 of 100 PMIC - Power Management ICs as subcategory 1. 0.052135 oz of Unit Weight

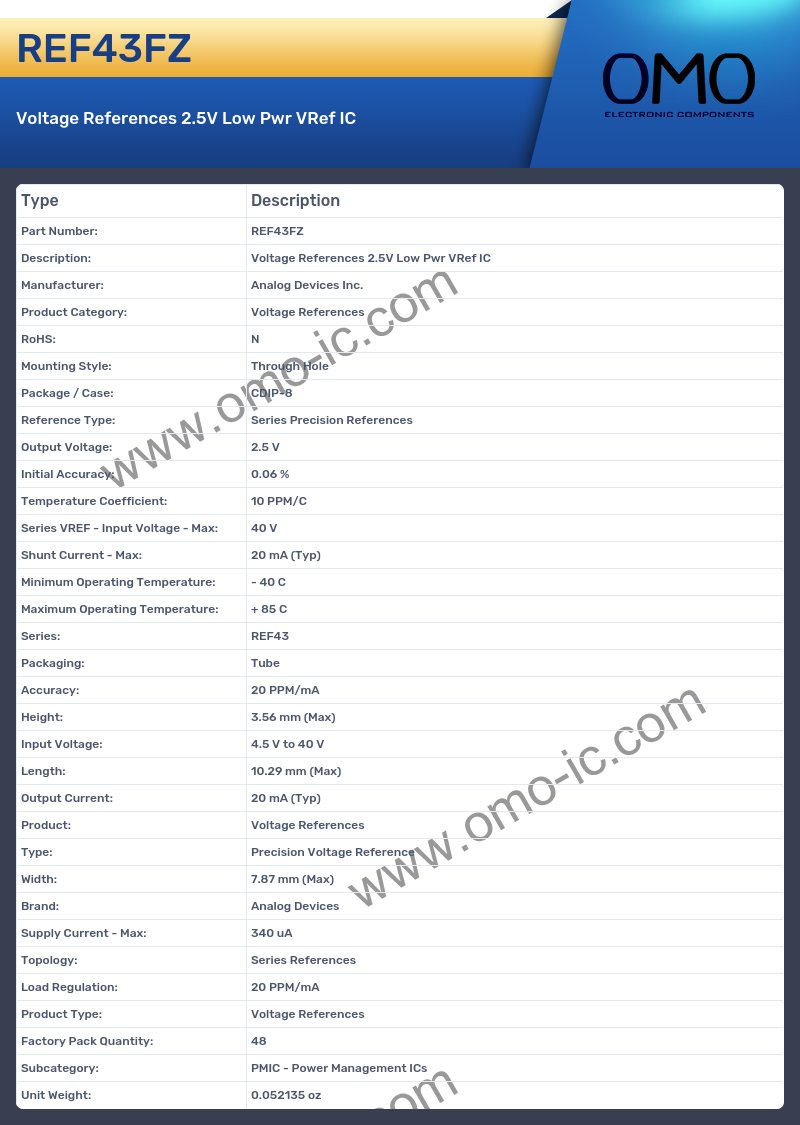

REF43FZ Image

REF43FZ Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Voltage References
• RoHS: N
• Mounting Style: Through Hole
• Package / Case: CDIP-8
• Reference Type: Series Precision References
• Output Voltage: 2.5 V
• Initial Accuracy: 0.06 %
• Temperature Coefficient: 10 PPM/C
• Series VREF - Input Voltage - Max: 40 V
• Shunt Current - Max: 20 mA (Typ)
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Series: REF43
• Packaging: Tube
• Accuracy: 20 PPM/mA
• Height: 3.56 mm (Max)
• Input Voltage: 4.5 V to 40 V
• Length: 10.29 mm (Max)
• Output Current: 20 mA (Typ)
• Product: Voltage References
• Type: Precision Voltage Reference
• Width: 7.87 mm (Max)
• Brand: Analog Devices
• Supply Current - Max: 340 uA
• Topology: Series References
• Load Regulation: 20 PPM/mA
• Product Type: Voltage References
• Factory Pack Quantity: 48
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.052135 oz
