PIC16F685-I/P

PIC16F685-I/P Overview

This product is manufactured by Microchip. The product can operate at a maximum temperature of Through Hole. PDIP-20 package/case type is utilized by this product. This product's PIC is an ARM Cortex M3. This product has a Data Bus Width of 8 bit. The Maximum Clock Frequency of this product is 20 MHz. The Program Memory Size of this product is 7 kB. The Data RAM Size of this product is 256 B. The ADC Resolution of this product is 10 bit. 2 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Tube packaging for easy dispensing The height of the product is 3.3 mm. 26.16 mm long MCU The Flash of this product is Flash. Microchip Technology is a trusted brand for quality electronics The RAM. The Data ROM Size is 256 B. Flash is the data ROM type. Interface Type: EUSART, I2C, SPI, SSP The product has 12 ADC channels. 8-bit Microcontrollers - MCU product type 22 of 100 Microcontrollers - MCU as subcategory Supply Voltage - Max: 5.5 V Supply Voltage - Min: 4.5 V The product's PIC is Blue Gecko. 1. 0.079719 oz of Unit Weight

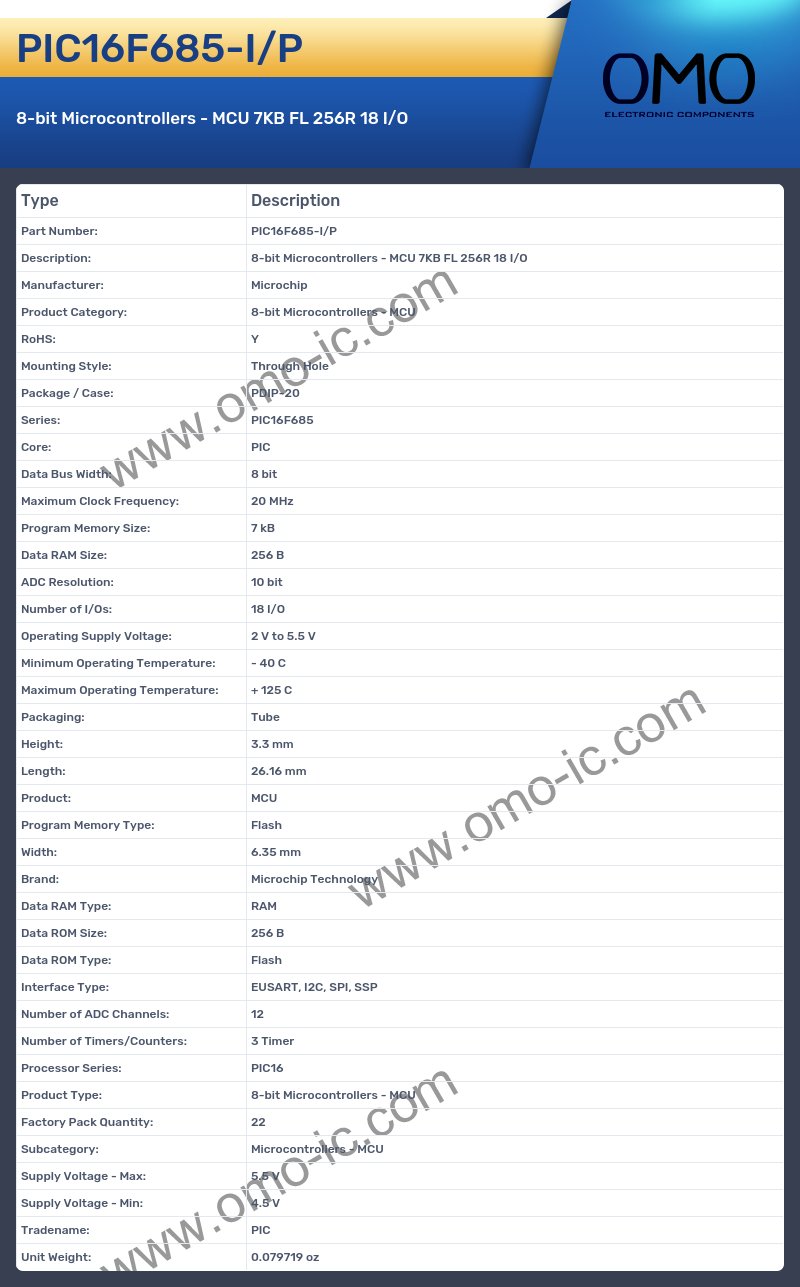

PIC16F685-I/P Image

PIC16F685-I/P Specifications

• Manufacturer: Microchip
• Product Category: 8-bit Microcontrollers - MCU
• RoHS: Y
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Series: PIC16F685
• Core: PIC
• Data Bus Width: 8 bit
• Maximum Clock Frequency: 20 MHz
• Program Memory Size: 7 kB
• Data RAM Size: 256 B
• ADC Resolution: 10 bit
• Number of I/Os: 18 I/O
• Operating Supply Voltage: 2 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Packaging: Tube
• Height: 3.3 mm
• Length: 26.16 mm
• Product: MCU
• Program Memory Type: Flash
• Width: 6.35 mm
• Brand: Microchip Technology
• Data RAM Type: RAM
• Data ROM Size: 256 B
• Data ROM Type: Flash
• Interface Type: EUSART, I2C, SPI, SSP
• Number of ADC Channels: 12
• Number of Timers/Counters: 3 Timer
• Processor Series: PIC16
• Product Type: 8-bit Microcontrollers - MCU
• Factory Pack Quantity: 22
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 4.5 V
• Tradename: PIC
• Unit Weight: 0.079719 oz
