PGA206PAG4 Overview

This product is manufactured by Texas Instruments. This product is equipped with 1 Channel for efficient performance. This product has a 84 dB of 50 dB, ensuring reliable signal acquisition. This product has an 100 pA of 5 uA for precise signal processing. Supply Voltage - Max: 36 V Supply Voltage - Min: 9 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of Through Hole. PDIP-16 package/case type is utilized by this product. Tube packaging for easy dispensing The amplifier type is PGA. The output type is -. Instrumentation Amplifiers Texas Instruments is a trusted brand for quality electronics This product does not have a No Shutdown feature, ensuring continuous operation. Bandwidth at -3 dB is 5 MHz 0.5 % is 0.2%. Gain ratio is 1 V/V, 2 V/V, 4 V/V, 8 V/V. INL is within 0.002 % 9 V to 36 V operating supply voltage range Instrumentation Amplifiers product type 25 of 100 Amplifier ICs as subcategory 1. 0.037172 oz of Unit Weight

PGA206PAG4 Image

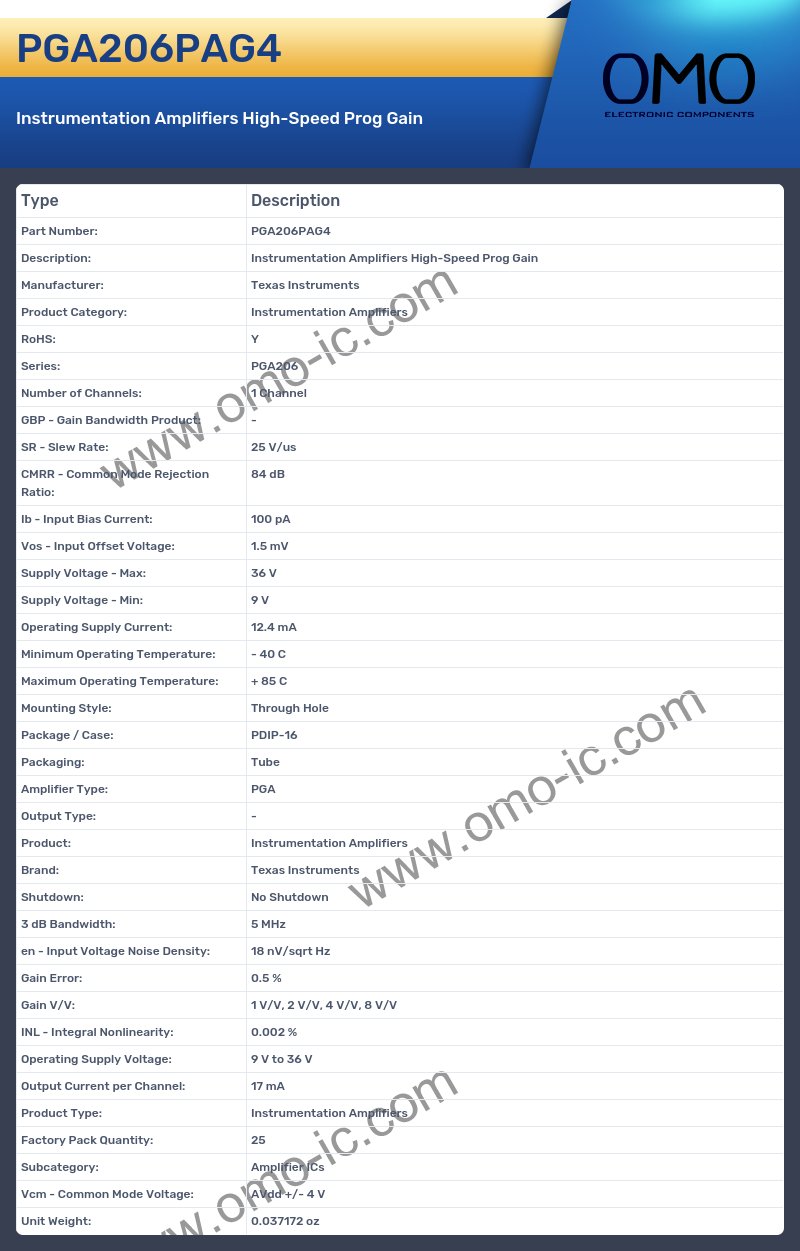

PGA206PAG4 Specifications

• Manufacturer: Texas Instruments
• Product Category: Instrumentation Amplifiers
• RoHS: Y
• Series: PGA206
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: -
• SR - Slew Rate: 25 V/us
• CMRR - Common Mode Rejection Ratio: 84 dB
• Ib - Input Bias Current: 100 pA
• Vos - Input Offset Voltage: 1.5 mV
• Supply Voltage - Max: 36 V
• Supply Voltage - Min: 9 V
• Operating Supply Current: 12.4 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-16
• Packaging: Tube
• Amplifier Type: PGA
• Output Type: -
• Product: Instrumentation Amplifiers
• Brand: Texas Instruments
• Shutdown: No Shutdown
• 3 dB Bandwidth: 5 MHz
• en - Input Voltage Noise Density: 18 nV/sqrt Hz
• Gain Error: 0.5 %
• Gain V/V: 1 V/V, 2 V/V, 4 V/V, 8 V/V
• INL - Integral Nonlinearity: 0.002 %
• Operating Supply Voltage: 9 V to 36 V
• Output Current per Channel: 17 mA
• Product Type: Instrumentation Amplifiers
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Vcm - Common Mode Voltage: AVdd +/- 4 V
• Unit Weight: 0.037172 oz
