PCA9535DW Overview

This product is manufactured by Texas Instruments. Interface Type: I2C, Serial, SMBus The Maximum Clock Frequency of this product is 400 kHz. Interrupt output supported: With Interrupt 2.3 V to 5.5 V operating supply voltage range The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. The product can operate at a maximum temperature of SMD/SMT. SOIC-24 package/case type is utilized by this product. Tube packaging for easy dispensing Output current: 25 mA I/O Expanders This device belongs to the I/O Expander type. Texas Instruments is a trusted brand for quality electronics The product uses the PCA9535 logic family. I/O Expanders product type 25 of 100 Interface ICs as subcategory 1. 0.022025 oz of Unit Weight

PCA9535DW Image

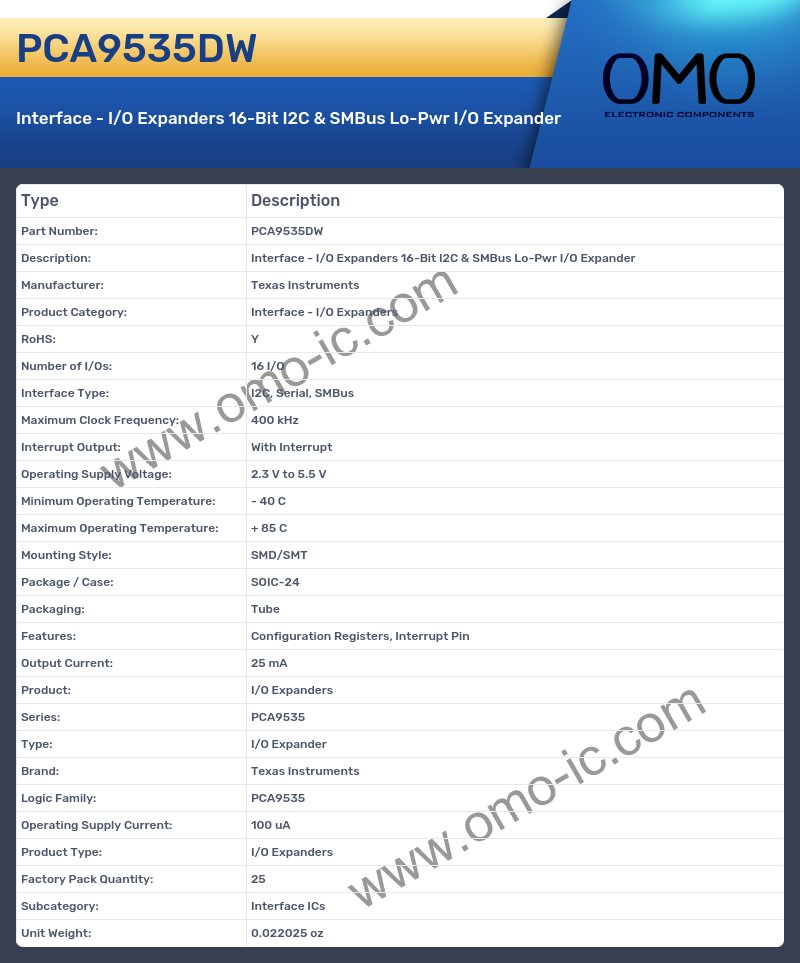

PCA9535DW Specifications

• Manufacturer: Texas Instruments
• Product Category: Interface - I/O Expanders
• RoHS: Y
• Number of I/Os: 16 I/O
• Interface Type: I2C, Serial, SMBus
• Maximum Clock Frequency: 400 kHz
• Interrupt Output: With Interrupt
• Operating Supply Voltage: 2.3 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: SMD/SMT
• Package / Case: SOIC-24
• Packaging: Tube
• Features: Configuration Registers, Interrupt Pin
• Output Current: 25 mA
• Product: I/O Expanders
• Series: PCA9535
• Type: I/O Expander
• Brand: Texas Instruments
• Logic Family: PCA9535
• Operating Supply Current: 100 uA
• Product Type: I/O Expanders
• Factory Pack Quantity: 25
• Subcategory: Interface ICs
• Unit Weight: 0.022025 oz
