OPA564AIDWD

OPA564AIDWD Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. HSSOP-20 package/case type is utilized by this product. Supply Voltage - Max: 24 V This product is equipped with 1 Channel for efficient performance. This product has a 70 dB to 90 dB of 50 dB, ensuring reliable signal acquisition. This product has an 100 pA of 5 uA for precise signal processing. Supply Voltage - Min: 7 V The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 85 C. This product does not have a Shutdown feature, ensuring continuous operation. Tube packaging for easy dispensing The amplifier type is High Current Amplifier. The height of the product is 2.35 mm. Rail-to-Rail input type 12.82 mm long Operational Amplifiers Supply Type: Single, Dual Texas Instruments is a trusted brand for quality electronics The 0.004 pA/sqrt Hz is 0.7 pA/rtHz. 1. The maximum dual supply voltage is +/- 12 V. +/- 3.5 V minimum dual supply voltage Yes regarding Moisture Sensitivity 7 V to 24 V, +/- 3.5 V to +/- 12 V operating supply voltage range Op Amps - Operational Amplifiers product type This product has a 100 dB of 50 dB, providing reliable power supply noise rejection. 25 of 100 Amplifier ICs as subcategory 1. 0.021196 oz of Unit Weight

OPA564AIDWD Image

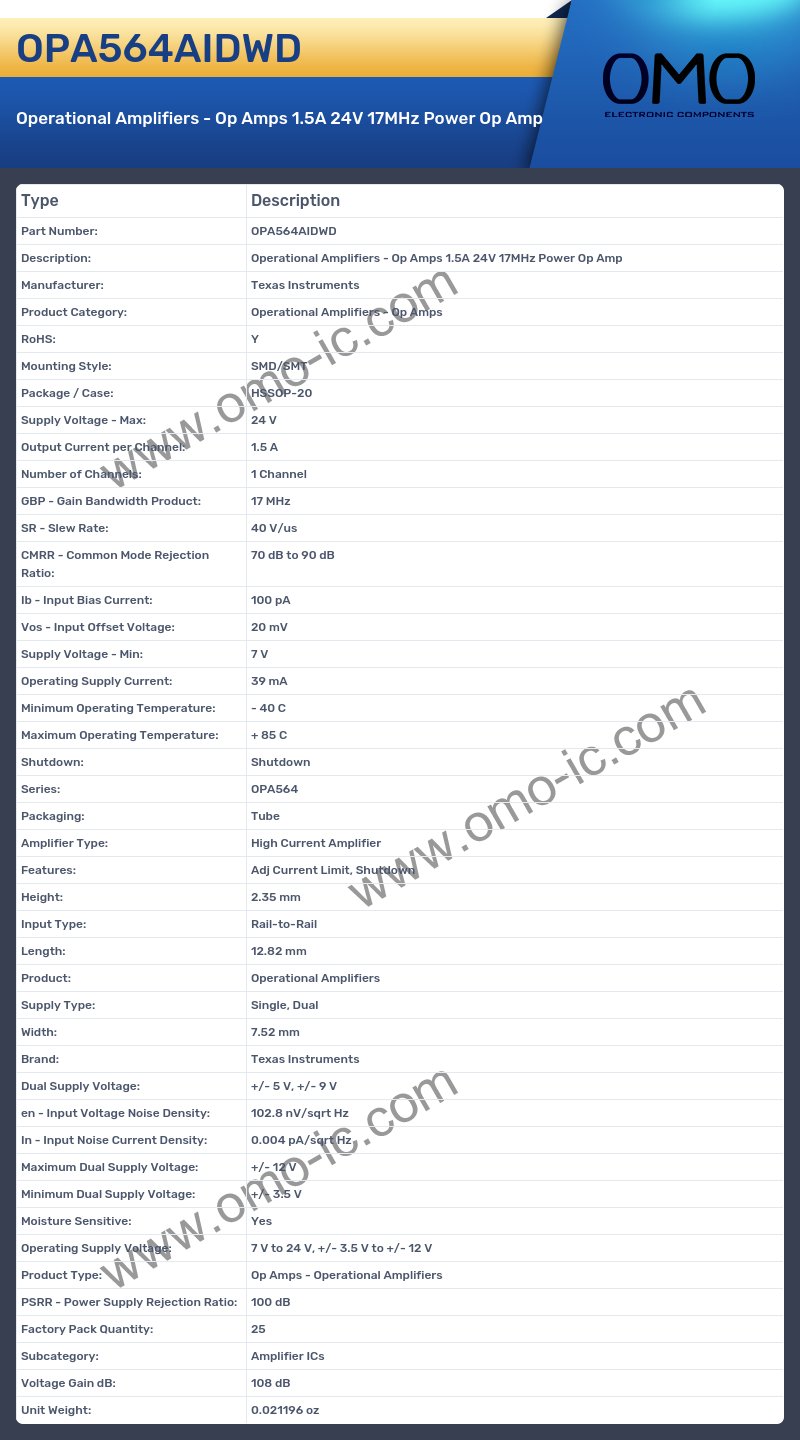

OPA564AIDWD Specifications

• Manufacturer: Texas Instruments
• Product Category: Operational Amplifiers - Op Amps
• RoHS: Y
• Mounting Style: SMD/SMT
• Package / Case: HSSOP-20
• Supply Voltage - Max: 24 V
• Output Current per Channel: 1.5 A
• Number of Channels: 1 Channel
• GBP - Gain Bandwidth Product: 17 MHz
• SR - Slew Rate: 40 V/us
• CMRR - Common Mode Rejection Ratio: 70 dB to 90 dB
• Ib - Input Bias Current: 100 pA
• Vos - Input Offset Voltage: 20 mV
• Supply Voltage - Min: 7 V
• Operating Supply Current: 39 mA
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Shutdown: Shutdown
• Series: OPA564
• Packaging: Tube
• Amplifier Type: High Current Amplifier
• Features: Adj Current Limit, Shutdown
• Height: 2.35 mm
• Input Type: Rail-to-Rail
• Length: 12.82 mm
• Product: Operational Amplifiers
• Supply Type: Single, Dual
• Width: 7.52 mm
• Brand: Texas Instruments
• Dual Supply Voltage: +/- 5 V, +/- 9 V
• en - Input Voltage Noise Density: 102.8 nV/sqrt Hz
• In - Input Noise Current Density: 0.004 pA/sqrt Hz
• Maximum Dual Supply Voltage: +/- 12 V
• Minimum Dual Supply Voltage: +/- 3.5 V
• Moisture Sensitive: Yes
• Operating Supply Voltage: 7 V to 24 V, +/- 3.5 V to +/- 12 V
• Product Type: Op Amps - Operational Amplifiers
• PSRR - Power Supply Rejection Ratio: 100 dB
• Factory Pack Quantity: 25
• Subcategory: Amplifier ICs
• Voltage Gain dB: 108 dB
• Unit Weight: 0.021196 oz
