MCP14A0301T-E/SN Overview

This product is manufactured by Microchip. MOSFET Gate Drivers This device belongs to the Inverting type. The product can operate at a maximum temperature of SMD/SMT. SOIC-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 3 A Rise Time is 13 ns. 12 ns fall time Supply Voltage - Min: 4.5 V Supply Voltage - Max: 18 V Maximum propagation delay: 18 ns 0.9 W The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing Microchip Technology is a trusted brand for quality electronics Gate Drivers product type Rds On value of 3.3 Ohms 3300 of 100 PMIC - Power Management ICs as subcategory

MCP14A0301T-E/SN Image

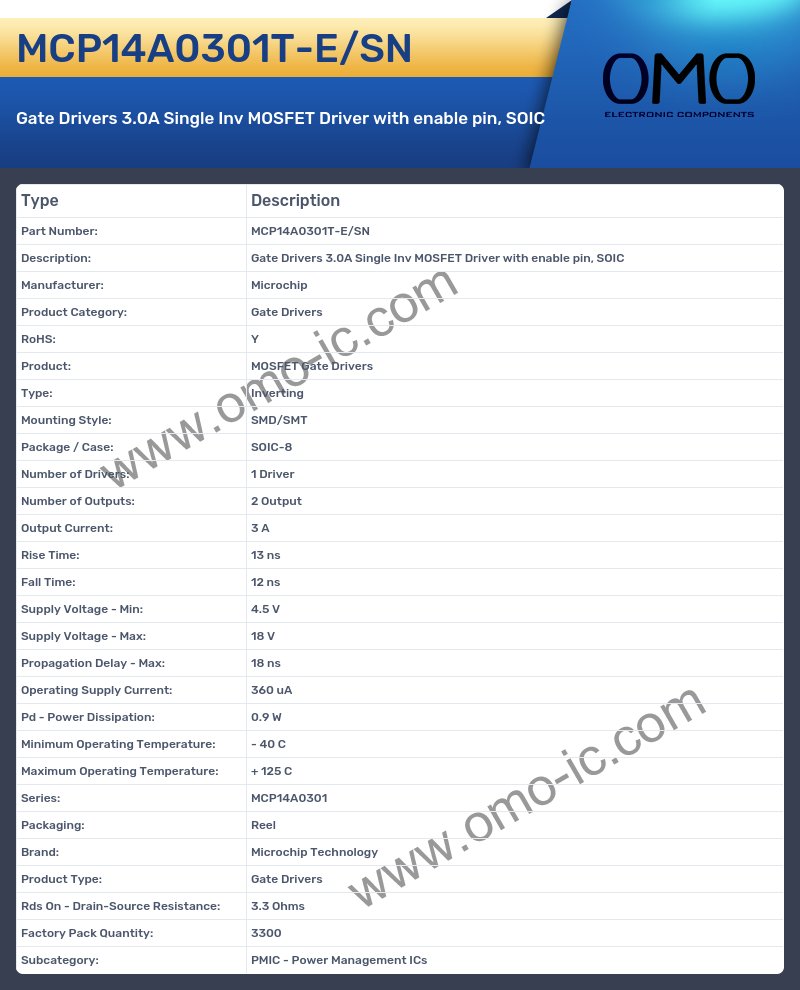

MCP14A0301T-E/SN Specifications

• Manufacturer: Microchip
• Product Category: Gate Drivers
• RoHS: Y
• Product: MOSFET Gate Drivers
• Type: Inverting
• Mounting Style: SMD/SMT
• Package / Case: SOIC-8
• Number of Drivers: 1 Driver
• Number of Outputs: 2 Output
• Output Current: 3 A
• Rise Time: 13 ns
• Fall Time: 12 ns
• Supply Voltage - Min: 4.5 V
• Supply Voltage - Max: 18 V
• Propagation Delay - Max: 18 ns
• Operating Supply Current: 360 uA
• Pd - Power Dissipation: 0.9 W
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Series: MCP14A0301
• Packaging: Reel
• Brand: Microchip Technology
• Product Type: Gate Drivers
• Rds On - Drain-Source Resistance: 3.3 Ohms
• Factory Pack Quantity: 3300
• Subcategory: PMIC - Power Management ICs
