LTC2253CUH#PBF

LTC2253CUH#PBF Overview

This product is manufactured by Analog Devices Inc.. The product can operate at a maximum temperature of SMD/SMT. QFN-32 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. The sampling rate of this product is 125 MS/s. Differential/Single-Ended input type Interface Type: Parallel Pipeline architecture External, Internal is the reference type. This product requires an 3 V for proper operation. The minimum operating temperature of this product is 0 C. The product can operate at a maximum temperature of + 70 C. Tube packaging for easy dispensing This device belongs to the High Speed type. Analog Devices is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. DC782A-U is a versatile development platform for hardware and software The 0.15 LSB, ensuring accurate and precise analog-to-digital conversion. 0.5 %/FS is 0.2%. INL is within 0.3 LSB 395 mW ADCs - Analog to Digital Converters product type 73 of 100 Data Converter ICs as subcategory

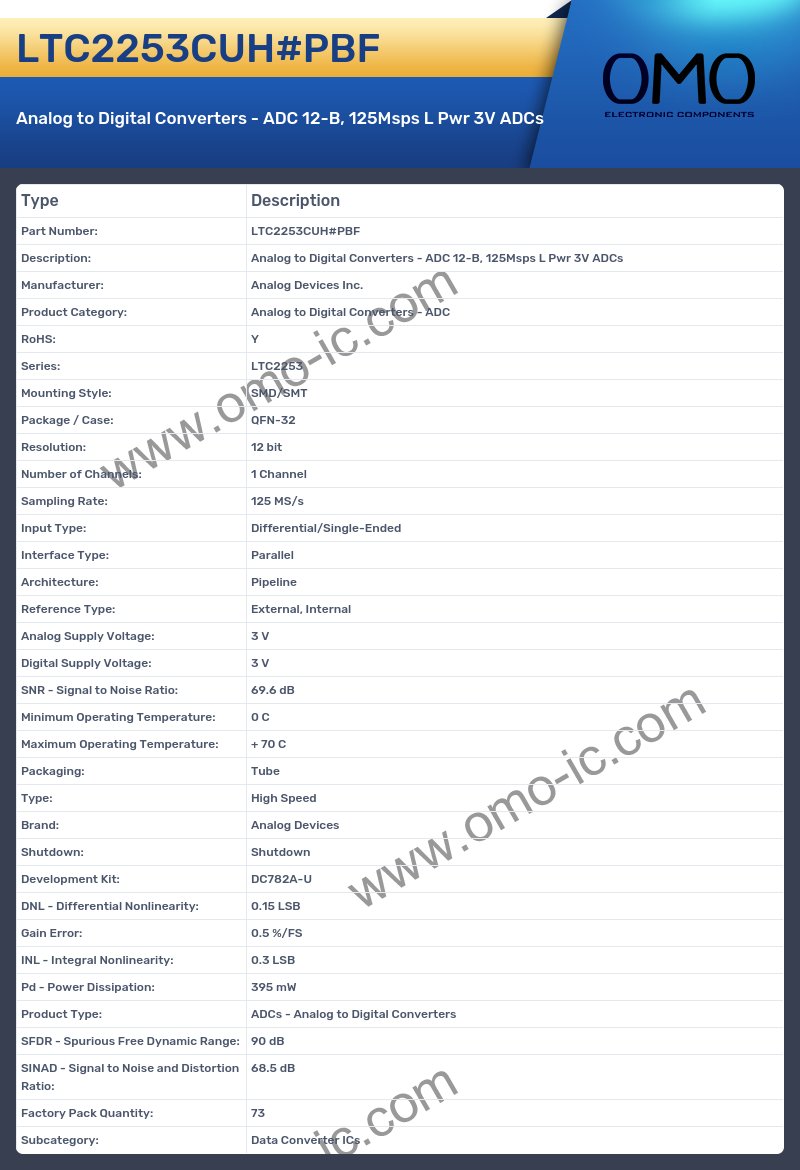

LTC2253CUH#PBF Image

LTC2253CUH#PBF Specifications

• Manufacturer: Analog Devices Inc.
• Product Category: Analog to Digital Converters - ADC
• RoHS: Y
• Series: LTC2253
• Mounting Style: SMD/SMT
• Package / Case: QFN-32
• Resolution: 12 bit
• Number of Channels: 1 Channel
• Sampling Rate: 125 MS/s
• Input Type: Differential/Single-Ended
• Interface Type: Parallel
• Architecture: Pipeline
• Reference Type: External, Internal
• Analog Supply Voltage: 3 V
• Digital Supply Voltage: 3 V
• SNR - Signal to Noise Ratio: 69.6 dB
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Type: High Speed
• Brand: Analog Devices
• Shutdown: Shutdown
• Development Kit: DC782A-U
• DNL - Differential Nonlinearity: 0.15 LSB
• Gain Error: 0.5 %/FS
• INL - Integral Nonlinearity: 0.3 LSB
• Pd - Power Dissipation: 395 mW
• Product Type: ADCs - Analog to Digital Converters
• SFDR - Spurious Free Dynamic Range: 90 dB
• SINAD - Signal to Noise and Distortion Ratio: 68.5 dB
• Factory Pack Quantity: 73
• Subcategory: Data Converter ICs
