LM5026SD/NOPB

LM5026SD/NOPB Overview

This product is manufactured by Texas Instruments. Active Clamp Topology 2 Output is the number of outputs provided by this product. 590 kHz is 60 kHz. 100 V Input Voltage Output Voltage is 8 V to 15 V Output current: 3 A The minimum operating temperature of this product is - 40 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. LLP-16 package/case type is utilized by this product. Reel packaging for easy dispensing Non-Isolated is the isolation property. The output type is Programmable. Active Clamp PWM Controllers This device belongs to the Current Mode PWM Controller type. Texas Instruments is a trusted brand for quality electronics This product does not have a Shutdown feature, ensuring continuous operation. LM5026EVAL/NOPB is a versatile development platform for hardware and software 15 ns fall time 13 V to 100 V operating supply voltage range Switching Controllers product type Rise Time is 20 ns. 1000 of 100 PMIC - Power Management ICs as subcategory 1. 0.002215 oz of Unit Weight

LM5026SD/NOPB Image

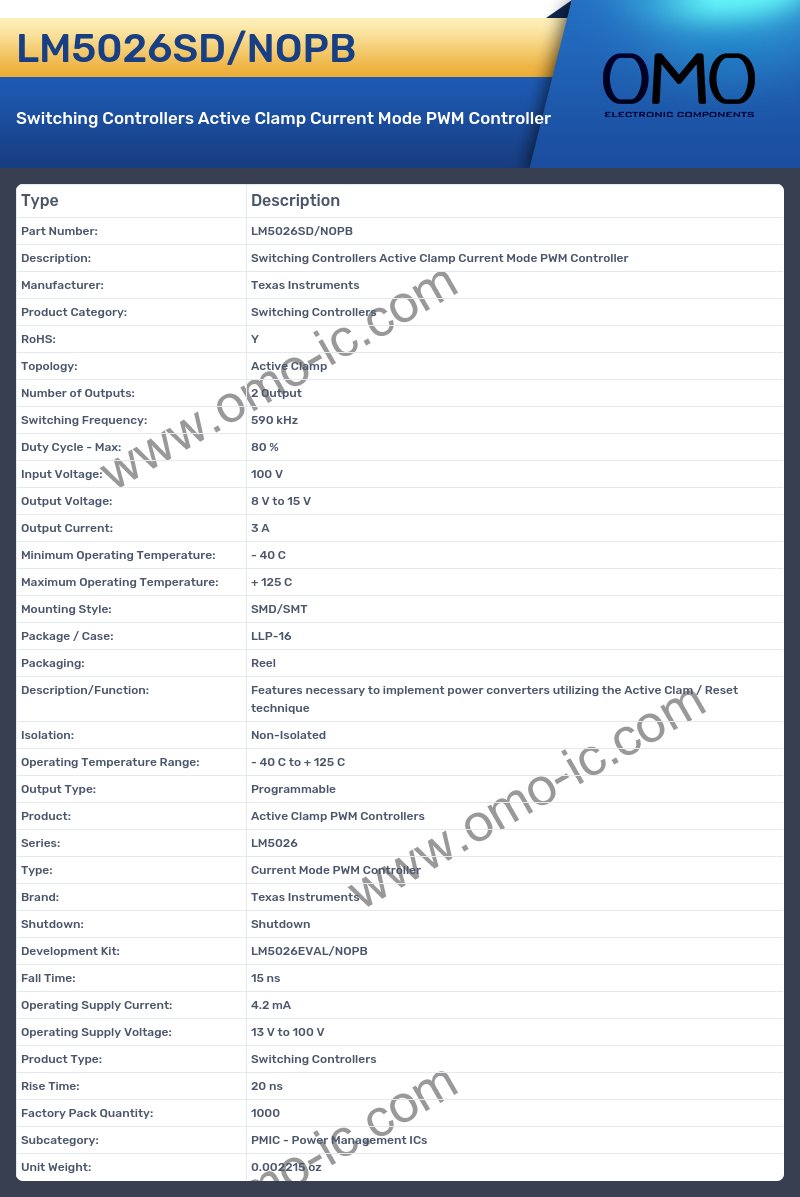

LM5026SD/NOPB Specifications

• Manufacturer: Texas Instruments
• Product Category: Switching Controllers
• RoHS: Y
• Topology: Active Clamp
• Number of Outputs: 2 Output
• Switching Frequency: 590 kHz
• Duty Cycle - Max: 80 %
• Input Voltage: 100 V
• Output Voltage: 8 V to 15 V
• Output Current: 3 A
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: LLP-16
• Packaging: Reel
• Description/Function: Features necessary to implement power converters utilizing the Active Clam / Reset technique
• Isolation: Non-Isolated
• Operating Temperature Range: - 40 C to + 125 C
• Output Type: Programmable
• Product: Active Clamp PWM Controllers
• Series: LM5026
• Type: Current Mode PWM Controller
• Brand: Texas Instruments
• Shutdown: Shutdown
• Development Kit: LM5026EVAL/NOPB
• Fall Time: 15 ns
• Operating Supply Current: 4.2 mA
• Operating Supply Voltage: 13 V to 100 V
• Product Type: Switching Controllers
• Rise Time: 20 ns
• Factory Pack Quantity: 1000
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.002215 oz
