L6385ED013TR Overview

This product is manufactured by STMicroelectronics. Half-Bridge Drivers This device belongs to the Non-Inverting type. The product can operate at a maximum temperature of SMD/SMT. SO-8 package/case type is utilized by this product. 2 Output is the number of outputs provided by this product. Output current: 650 mA Rise Time is 50 ns. 30 ns fall time Supply Voltage - Min: - 0.3 V Supply Voltage - Max: 17 V 750 mW The minimum operating temperature of this product is - 45 C. The product can operate at a maximum temperature of + 125 C. Reel packaging for easy dispensing STMicroelectronics is a trusted brand for quality electronics CMOS, TTL. 15 V operating supply voltage range Gate Drivers product type 2500 of 100 PMIC - Power Management ICs as subcategory 1. 0.004395 oz of Unit Weight

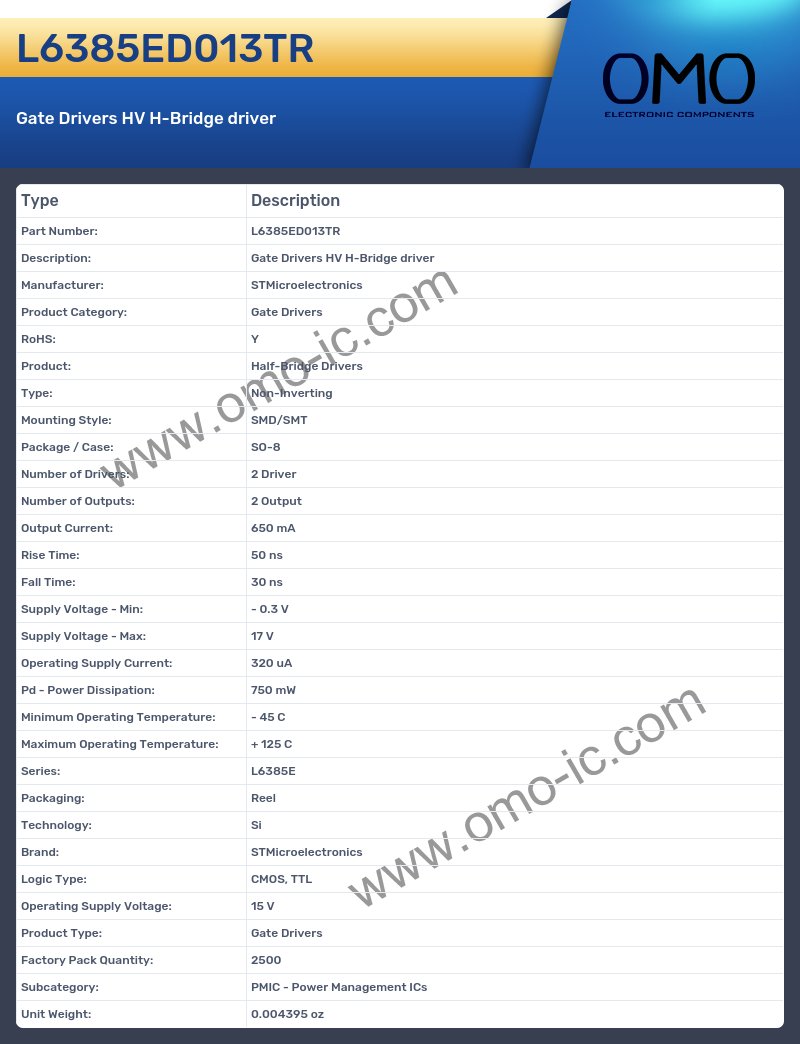

L6385ED013TR Image

L6385ED013TR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Gate Drivers
• RoHS: Y
• Product: Half-Bridge Drivers
• Type: Non-Inverting
• Mounting Style: SMD/SMT
• Package / Case: SO-8
• Number of Drivers: 2 Driver
• Number of Outputs: 2 Output
• Output Current: 650 mA
• Rise Time: 50 ns
• Fall Time: 30 ns
• Supply Voltage - Min: - 0.3 V
• Supply Voltage - Max: 17 V
• Operating Supply Current: 320 uA
• Pd - Power Dissipation: 750 mW
• Minimum Operating Temperature: - 45 C
• Maximum Operating Temperature: + 125 C
• Series: L6385E
• Packaging: Reel
• Technology: Si
• Brand: STMicroelectronics
• Logic Type: CMOS, TTL
• Operating Supply Voltage: 15 V
• Product Type: Gate Drivers
• Factory Pack Quantity: 2500
• Subcategory: PMIC - Power Management ICs
• Unit Weight: 0.004395 oz
