HCF4049UM013TR Overview

This product is manufactured by STMicroelectronics. Polarity type: Inverting Supply Voltage - Max: 20 V Supply Voltage - Min: 3 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 125 C. The product can operate at a maximum temperature of SMD/SMT. SOP-16 package/case type is utilized by this product. Reel packaging for easy dispensing t's a Buffer/Converter The height of the product is 1.65 mm (Max). 10 mm (Max) long STMicroelectronics is a trusted brand for quality electronics The product uses the 4000B logic family. CMOS. This product is equipped with 5 for efficient performance. Maximum supply current: 20 uA This product has a - 3 mA, ensuring reliable performance in demanding applications. Single-Ended is the input signal type. Low Level Output Current is 19 mA 3 V to 20 V operating supply voltage range 200 mW Buffers & Line Drivers product type The propagation delay time is 120 ns at 5 V, 65 ns at 10, 50 ns at 15 V. 2500 of 100 Logic ICs as subcategory 1. 0.008536 oz of Unit Weight

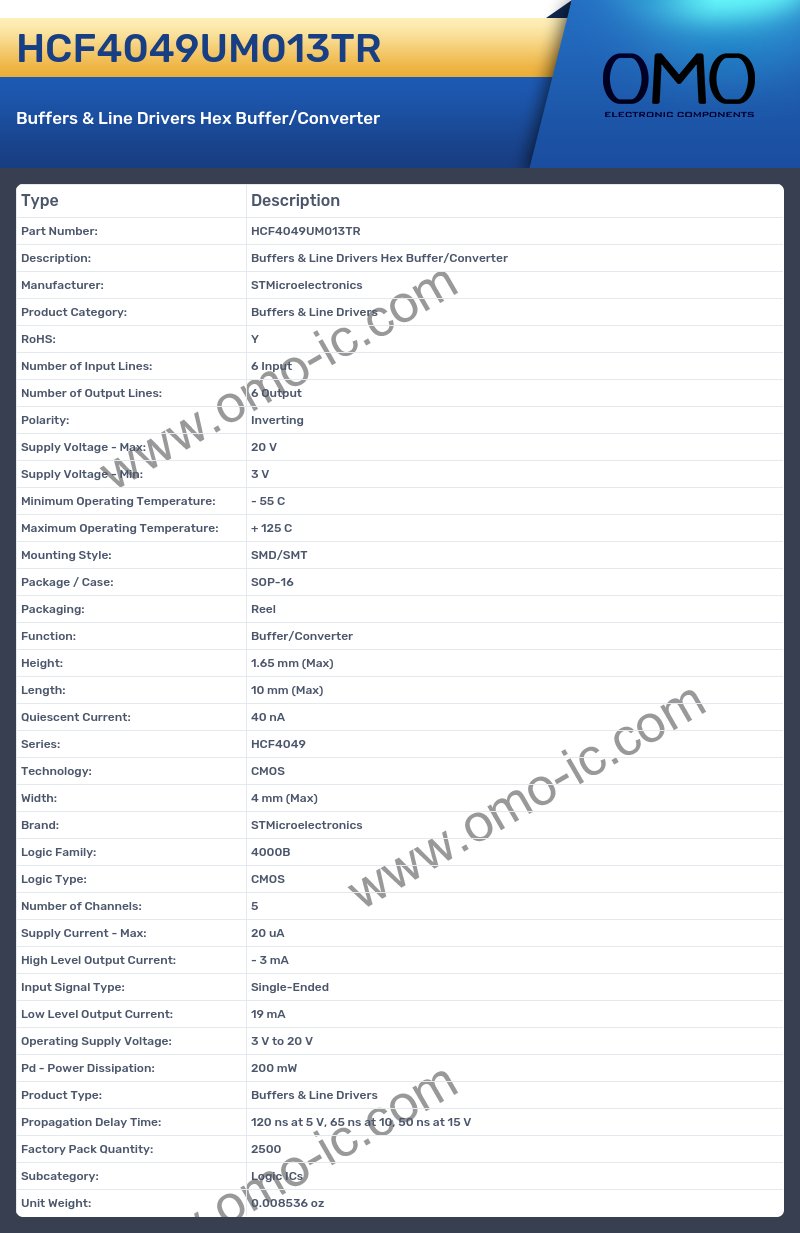

HCF4049UM013TR Image

HCF4049UM013TR Specifications

• Manufacturer: STMicroelectronics
• Product Category: Buffers & Line Drivers
• RoHS: Y
• Number of Input Lines: 6 Input
• Number of Output Lines: 6 Output
• Polarity: Inverting
• Supply Voltage - Max: 20 V
• Supply Voltage - Min: 3 V
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 125 C
• Mounting Style: SMD/SMT
• Package / Case: SOP-16
• Packaging: Reel
• Function: Buffer/Converter
• Height: 1.65 mm (Max)
• Length: 10 mm (Max)
• Quiescent Current: 40 nA
• Series: HCF4049
• Technology: CMOS
• Width: 4 mm (Max)
• Brand: STMicroelectronics
• Logic Family: 4000B
• Logic Type: CMOS
• Number of Channels: 5
• Supply Current - Max: 20 uA
• High Level Output Current: - 3 mA
• Input Signal Type: Single-Ended
• Low Level Output Current: 19 mA
• Operating Supply Voltage: 3 V to 20 V
• Pd - Power Dissipation: 200 mW
• Product Type: Buffers & Line Drivers
• Propagation Delay Time: 120 ns at 5 V, 65 ns at 10, 50 ns at 15 V
• Factory Pack Quantity: 2500
• Subcategory: Logic ICs
• Unit Weight: 0.008536 oz
