CSD87381PT

CSD87381PT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. PTAB-5 package/case type is utilized by this product. This product is equipped with 2 Channel for efficient performance. Vds rating of 30 V 15 A continuous drain current Rds On value of 15.7 mOhms, 7 mOhms Gate-Source Threshold Voltage Range: 1.9 V, 1.7 V Gate-Source Voltage: 10 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 4 W This product has a Dual configuration. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.48 mm. 3 mm long The Transistor Type is 2 N-Channel. This device belongs to the Synchronous Buck NexFET Power Stage type. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 40 S, 89 S 3 ns, 2.9 ns fall time MOSFET product type Rise Time is 19.3 ns, 16.3 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 10.6 ns, 16.8 ns. The typical turn-on delay time is 6.7 ns, 7.9 ns.

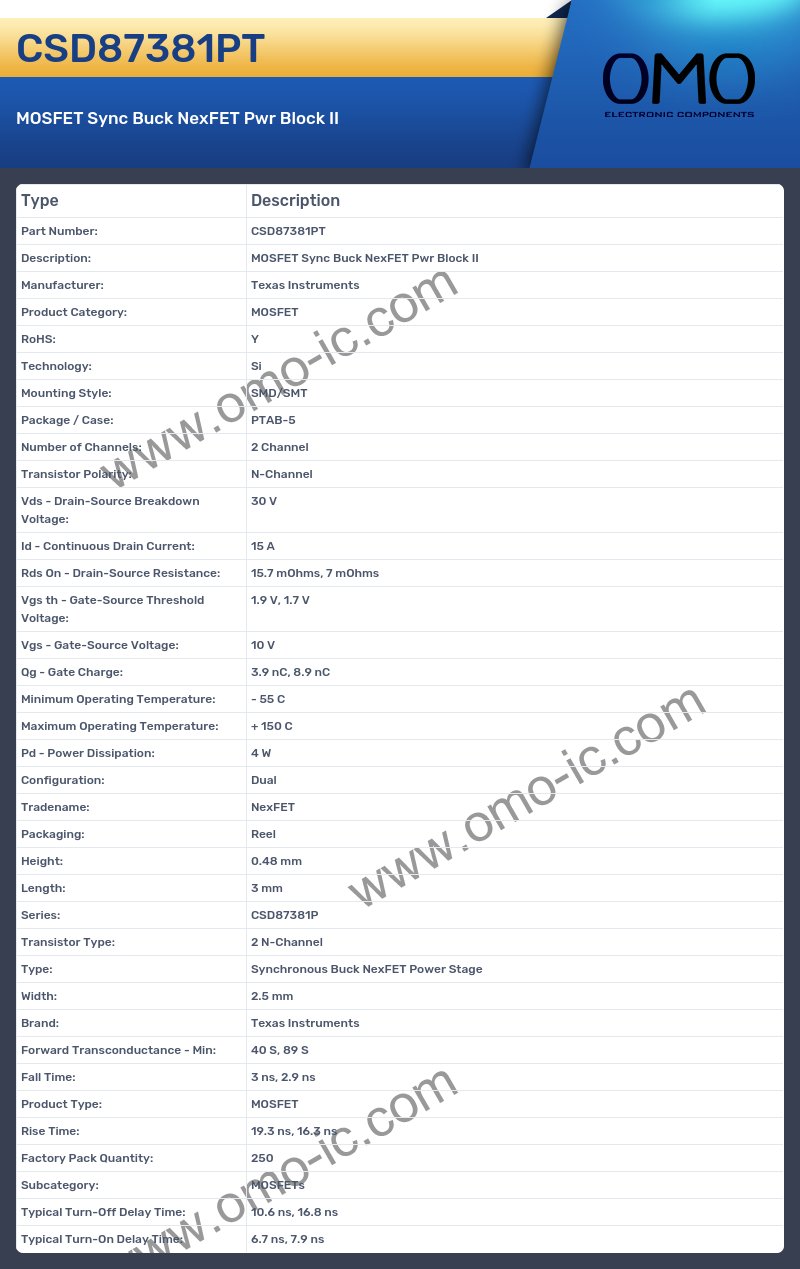

CSD87381PT Image

CSD87381PT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: PTAB-5
• Number of Channels: 2 Channel
• Transistor Polarity: N-Channel
• Vds - Drain-Source Breakdown Voltage: 30 V
• Id - Continuous Drain Current: 15 A
• Rds On - Drain-Source Resistance: 15.7 mOhms, 7 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.9 V, 1.7 V
• Vgs - Gate-Source Voltage: 10 V
• Qg - Gate Charge: 3.9 nC, 8.9 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 4 W
• Configuration: Dual
• Tradename: NexFET
• Packaging: Reel
• Height: 0.48 mm
• Length: 3 mm
• Series: CSD87381P
• Transistor Type: 2 N-Channel
• Type: Synchronous Buck NexFET Power Stage
• Width: 2.5 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 40 S, 89 S
• Fall Time: 3 ns, 2.9 ns
• Product Type: MOSFET
• Rise Time: 19.3 ns, 16.3 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 10.6 ns, 16.8 ns
• Typical Turn-On Delay Time: 6.7 ns, 7.9 ns
