CSD23203WT

CSD23203WT Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-6 package/case type is utilized by this product. Vds rating of 8 V 3 A continuous drain current Rds On value of 53 mOhms Gate-Source Threshold Voltage Range: 800 mV Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.625 mm. 1.5 mm long Texas Instruments is a trusted brand for quality electronics 27 ns fall time MOSFET product type Rise Time is 12 ns. 250 of 100 MOSFETs as subcategory Turn-off delay time is 58 ns. The typical turn-on delay time is 14 ns. 1. 0.000060 oz of Unit Weight

CSD23203WT Image

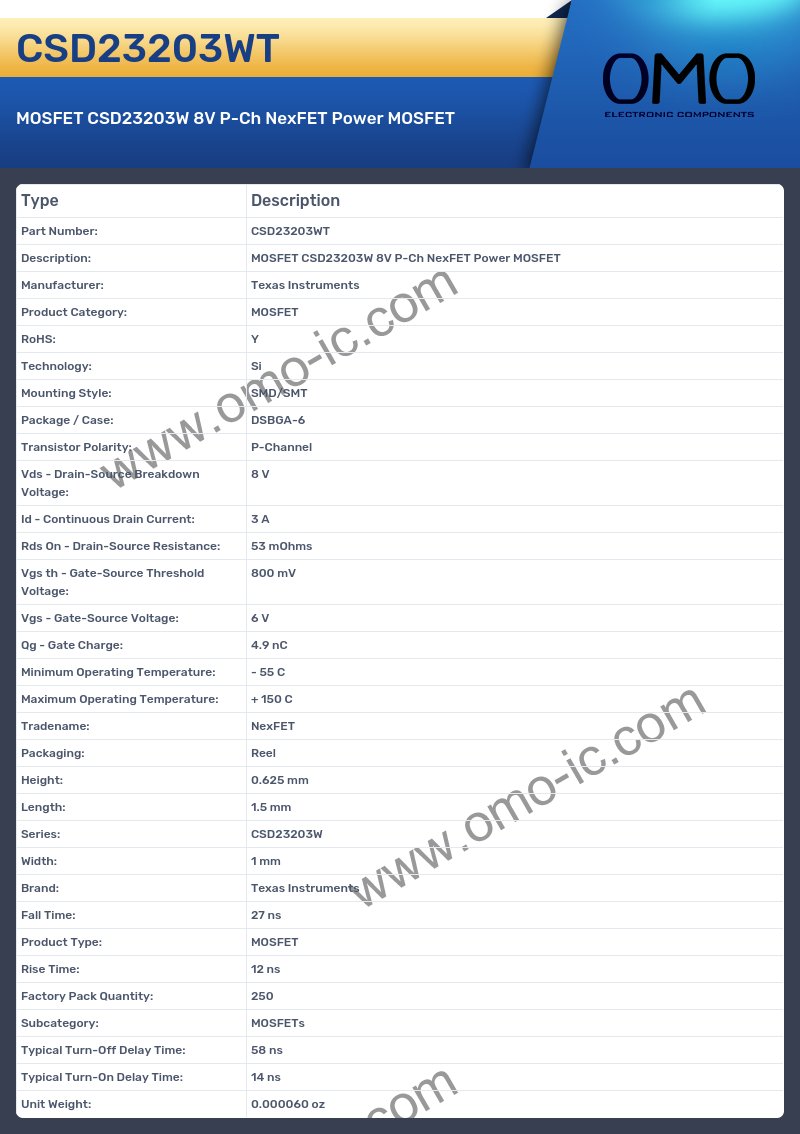

CSD23203WT Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-6
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 8 V
• Id - Continuous Drain Current: 3 A
• Rds On - Drain-Source Resistance: 53 mOhms
• Vgs th - Gate-Source Threshold Voltage: 800 mV
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 4.9 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Tradename: NexFET
• Packaging: Reel
• Height: 0.625 mm
• Length: 1.5 mm
• Series: CSD23203W
• Width: 1 mm
• Brand: Texas Instruments
• Fall Time: 27 ns
• Product Type: MOSFET
• Rise Time: 12 ns
• Factory Pack Quantity: 250
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 58 ns
• Typical Turn-On Delay Time: 14 ns
• Unit Weight: 0.000060 oz
