CSD23203W

CSD23203W Overview

This product is manufactured by Texas Instruments. The product can operate at a maximum temperature of SMD/SMT. DSBGA-6 package/case type is utilized by this product. This product is equipped with 1 Channel for efficient performance. Vds rating of 8 V 3 A continuous drain current Rds On value of 53 mOhms Gate-Source Threshold Voltage Range: 1.1 V Gate-Source Voltage: 6 V The minimum operating temperature of this product is - 55 C. The product can operate at a maximum temperature of + 150 C. 750 mW This product has a Single configuration. The Channel Mode is set to Enhancement. The product's NexFET is Blue Gecko. Reel packaging for easy dispensing The height of the product is 0.625 mm. 1.5 mm long The Transistor Type is 1 P-Channel. Texas Instruments is a trusted brand for quality electronics Minimum forward transconductance of 14 S 27 ns fall time MOSFET product type Rise Time is 12 ns. 3000 of 100 MOSFETs as subcategory Turn-off delay time is 58 ns. The typical turn-on delay time is 14 ns. 1. 0.000049 oz of Unit Weight

CSD23203W Image

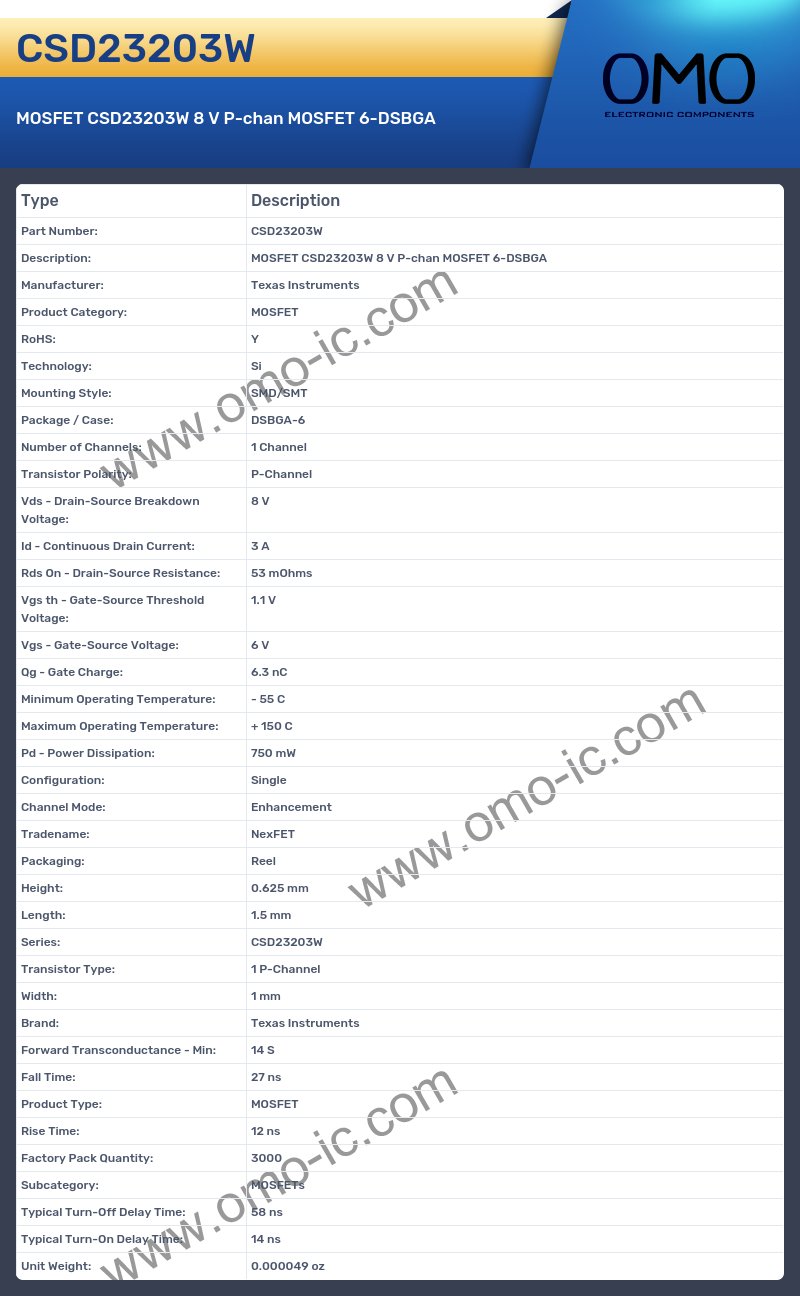

CSD23203W Specifications

• Manufacturer: Texas Instruments
• Product Category: MOSFET
• RoHS: Y
• Technology: Si
• Mounting Style: SMD/SMT
• Package / Case: DSBGA-6
• Number of Channels: 1 Channel
• Transistor Polarity: P-Channel
• Vds - Drain-Source Breakdown Voltage: 8 V
• Id - Continuous Drain Current: 3 A
• Rds On - Drain-Source Resistance: 53 mOhms
• Vgs th - Gate-Source Threshold Voltage: 1.1 V
• Vgs - Gate-Source Voltage: 6 V
• Qg - Gate Charge: 6.3 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 750 mW
• Configuration: Single
• Channel Mode: Enhancement
• Tradename: NexFET
• Packaging: Reel
• Height: 0.625 mm
• Length: 1.5 mm
• Series: CSD23203W
• Transistor Type: 1 P-Channel
• Width: 1 mm
• Brand: Texas Instruments
• Forward Transconductance - Min: 14 S
• Fall Time: 27 ns
• Product Type: MOSFET
• Rise Time: 12 ns
• Factory Pack Quantity: 3000
• Subcategory: MOSFETs
• Typical Turn-Off Delay Time: 58 ns
• Typical Turn-On Delay Time: 14 ns
• Unit Weight: 0.000049 oz
